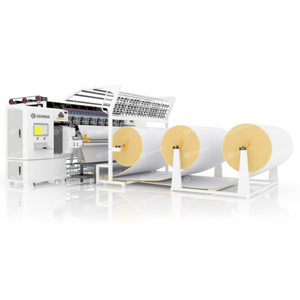

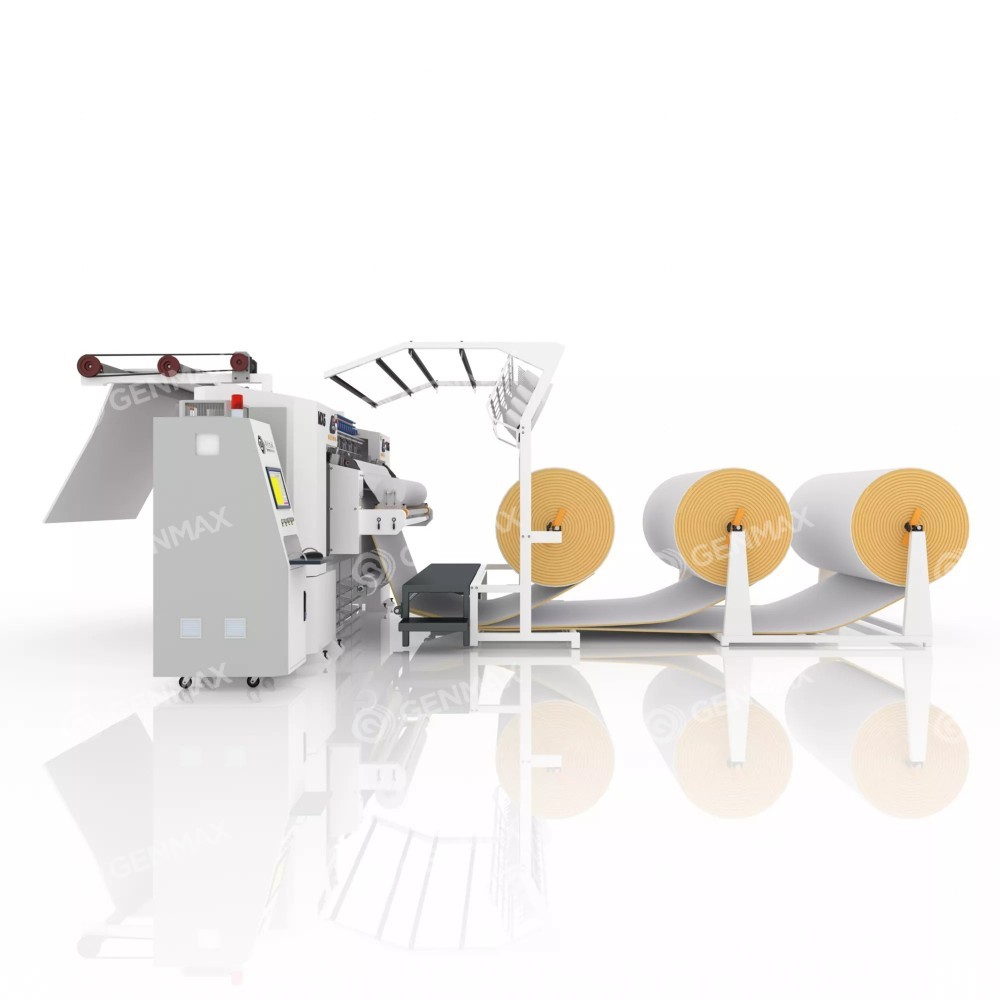

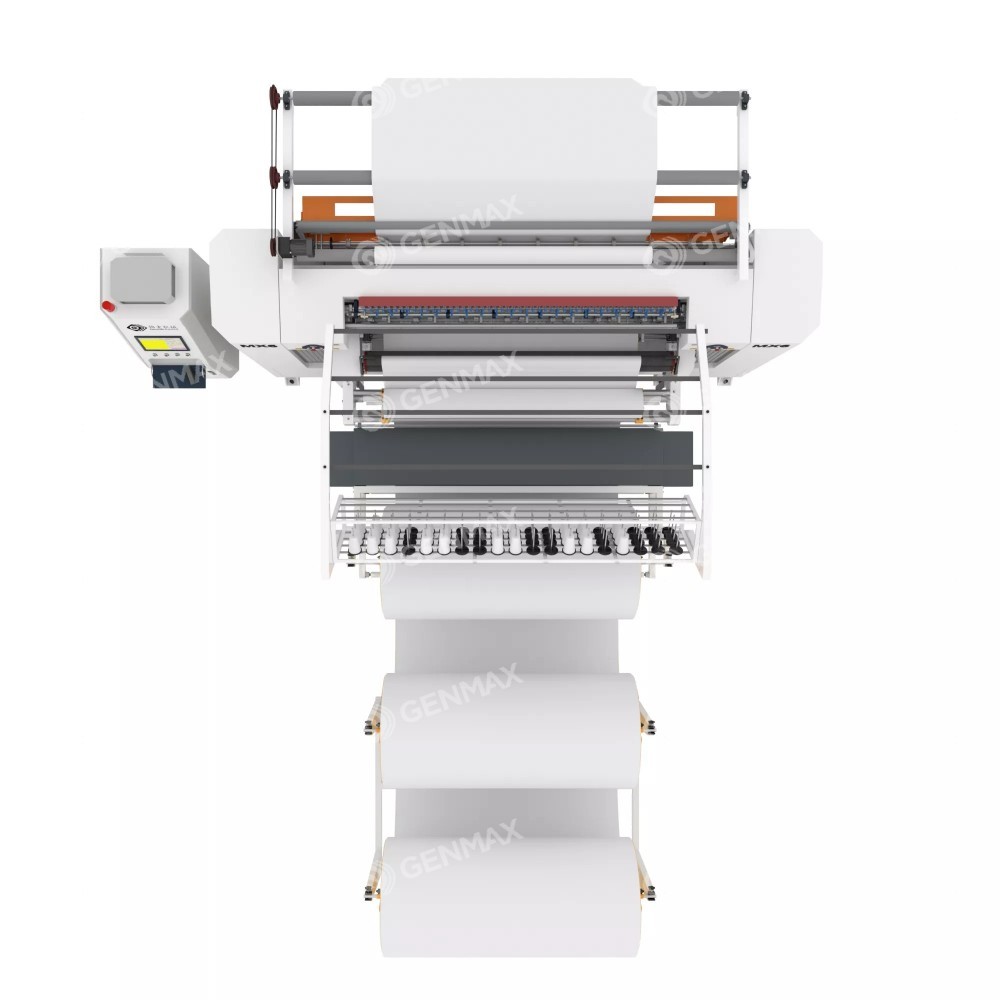

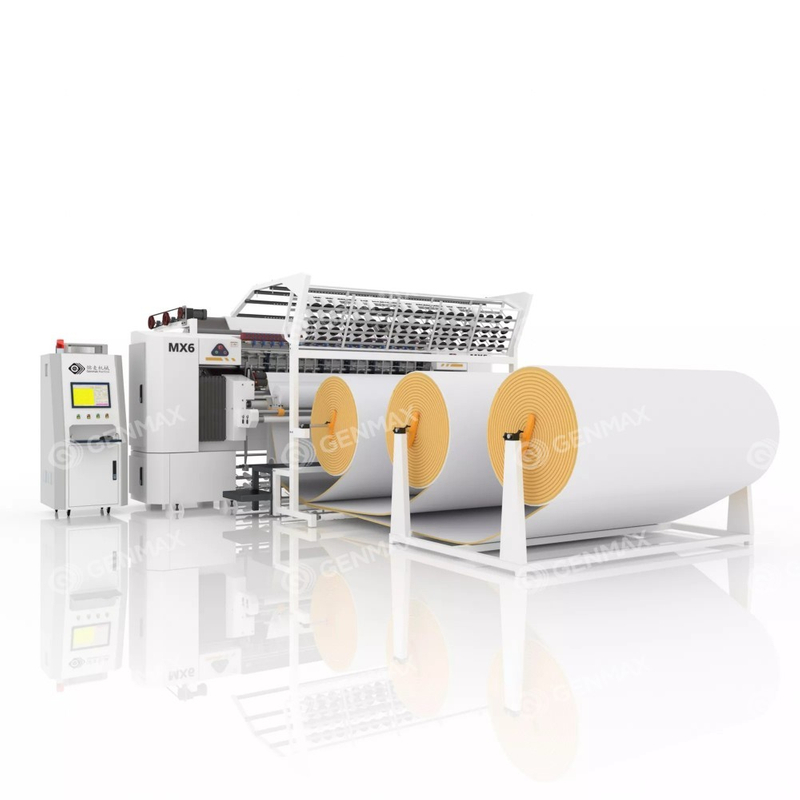

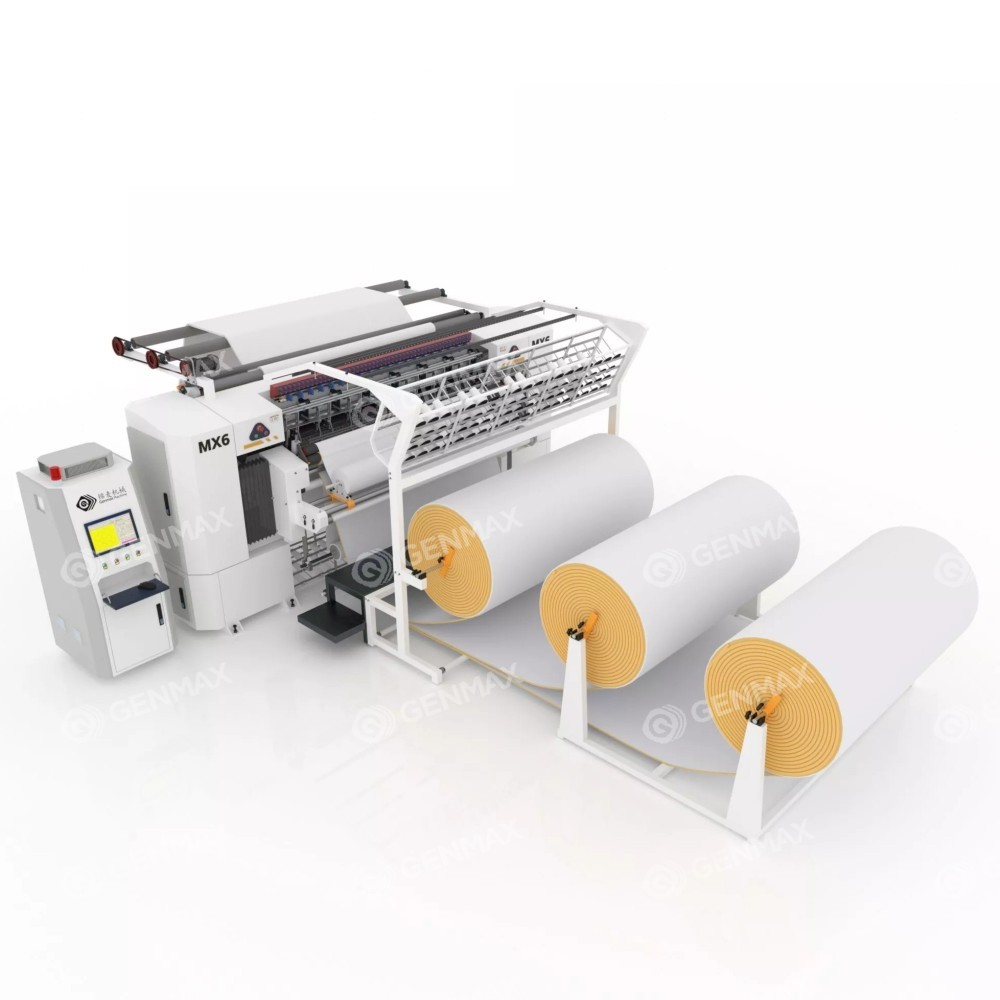

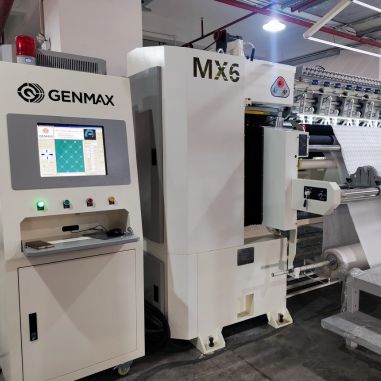

MX6
GENMAX
| Model | GM-MX6 | Space between needle rows | (50.8,76.2,127)5’,(76.2,76.2,152.4)6’ |
| Over all(L*W*H) | 5400*1650*2360mm | Model of needle | 24/180, 23/160, 22/140, 21/130 |
| Over all Weight | 5800Kg | Space between needles | 12.7/25.4mm |
| Spindle speed | 600-1400rpm | Quilt width | 2450mm |
| Output | 60-300 m/h | Quilting thickness | ≤80mm |
| Stitch | 3-8mm | Rated voltage | 380v/220v 50Hz/60Hz |
| Stroke | 304.8mm | Power | 11Kw |
MX6 Mattress Quilting Machine Features
1.The mattress machine industry's first: Row pitch:0.5 inches,can be processed more specification patterns for quilting mattres topper.(optional).
2.The industry first: Equiped with slitting device with saddle pendulum more accurate kinetic energy cutting good around(optional).
3.Automatically set needle on Third row needle bar not affected by the position of the pallet. Update needle bar working way,Needle row drive swing arm made by specialaluminum alloy. make mattress quilting machine perform swing lighter and faster.
3.Hatchell drive swing arm with special aluminum after finishing the surface treatment, more stable in operation,to achieve lowervibration effect.
4.Advanced computer controlling system and machine making craft make the performance better and the speed faster.The production is raised.

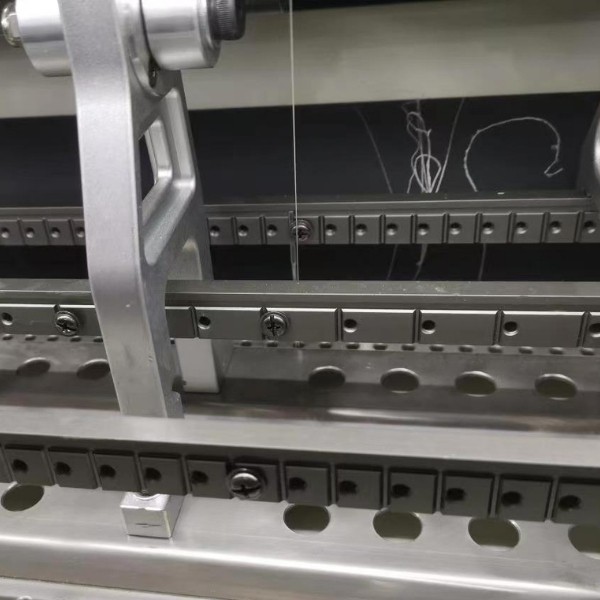

5.Advanced and practical bottom line, automatic detection of line surface broken line infrared detection, feel close to the infrared sensor can automatically stop, so that you operate more secure.
6.The spindle is controlled by 6kW servo motor.Precise PID algorithm control, automatic needle saddle and roller adopts servo drive equipment, can be 360° free quilting and multiple step quilting.
7.A new generation of computer quilting control system, high precision, without too much modification pattern, computer numerical control speed, maximum speed up to 1400 rpm.3-8mm arbitrarily set.

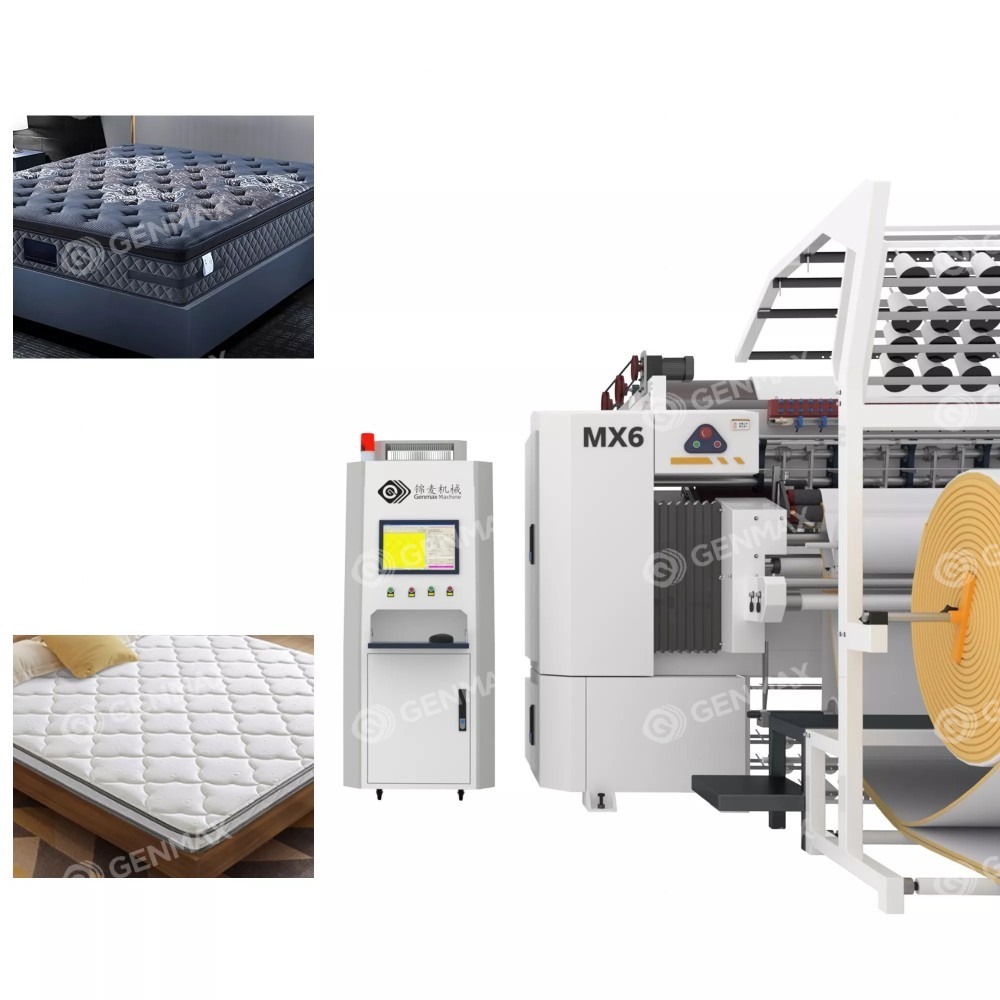

MX6 Mattress quilting machine can make the following patterns: Jump Pattern,Continuos Pattern and Striped Pattern.
One machine has the setting and switching of three pattern functions at the same time. It can meet the requirements
of most mattress factories for mattress topper design.

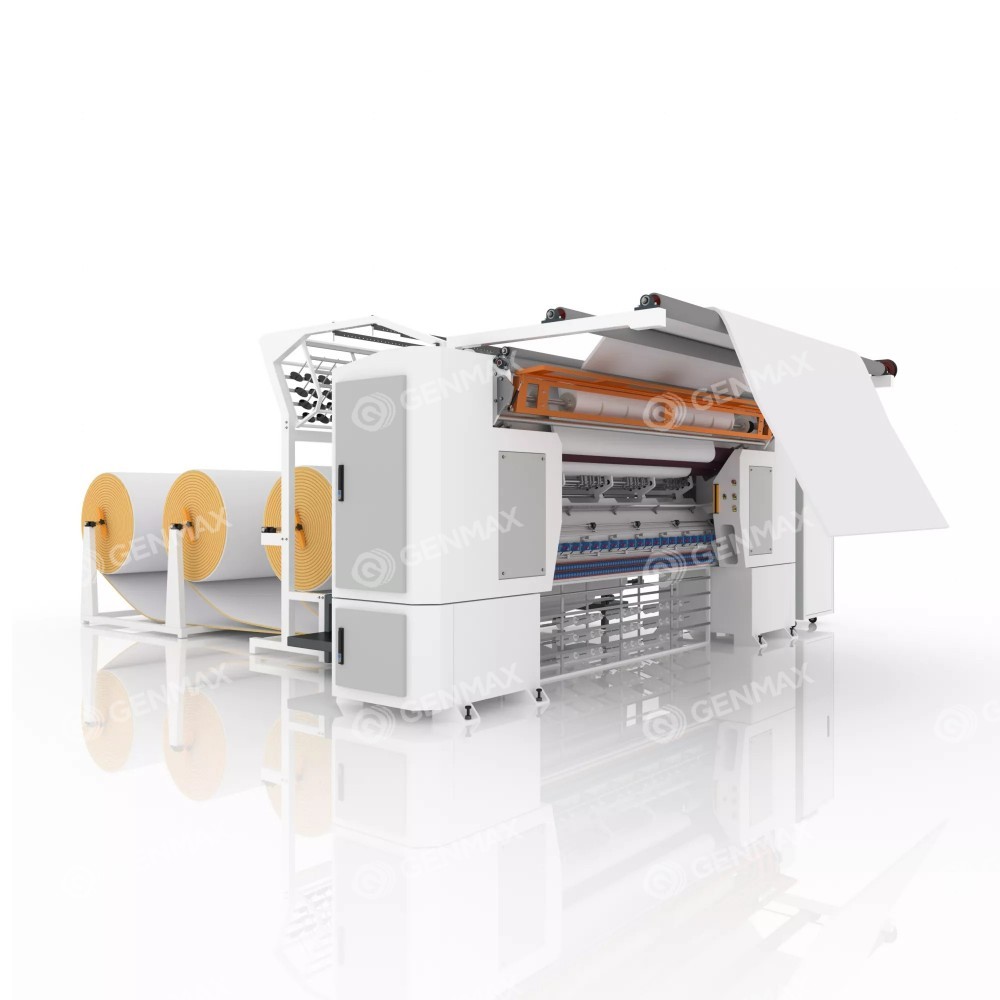

Advantages of the computerized multi-needle quilting machine without shuttle: used for quilting mattress fabrics, that
is,quilted cotton, the quilting stitches are tight, the quilting pattern has a strong "three-dimensional effect", and the
infrared detection of surface and bottom thread breakage automatically stops the machine. Needle adjustment and
computer speed adjustment.
