For the tape edge machines, we have three models-FB3, FB3A and FB5.
The FB5 tape edge machine has an auto-flipping working table, while FB3 and FB3A have a fixed working table. It means the former meets the needs of the mattress move and human stand; while the latter meets the needs of the human move and mattress fixed.

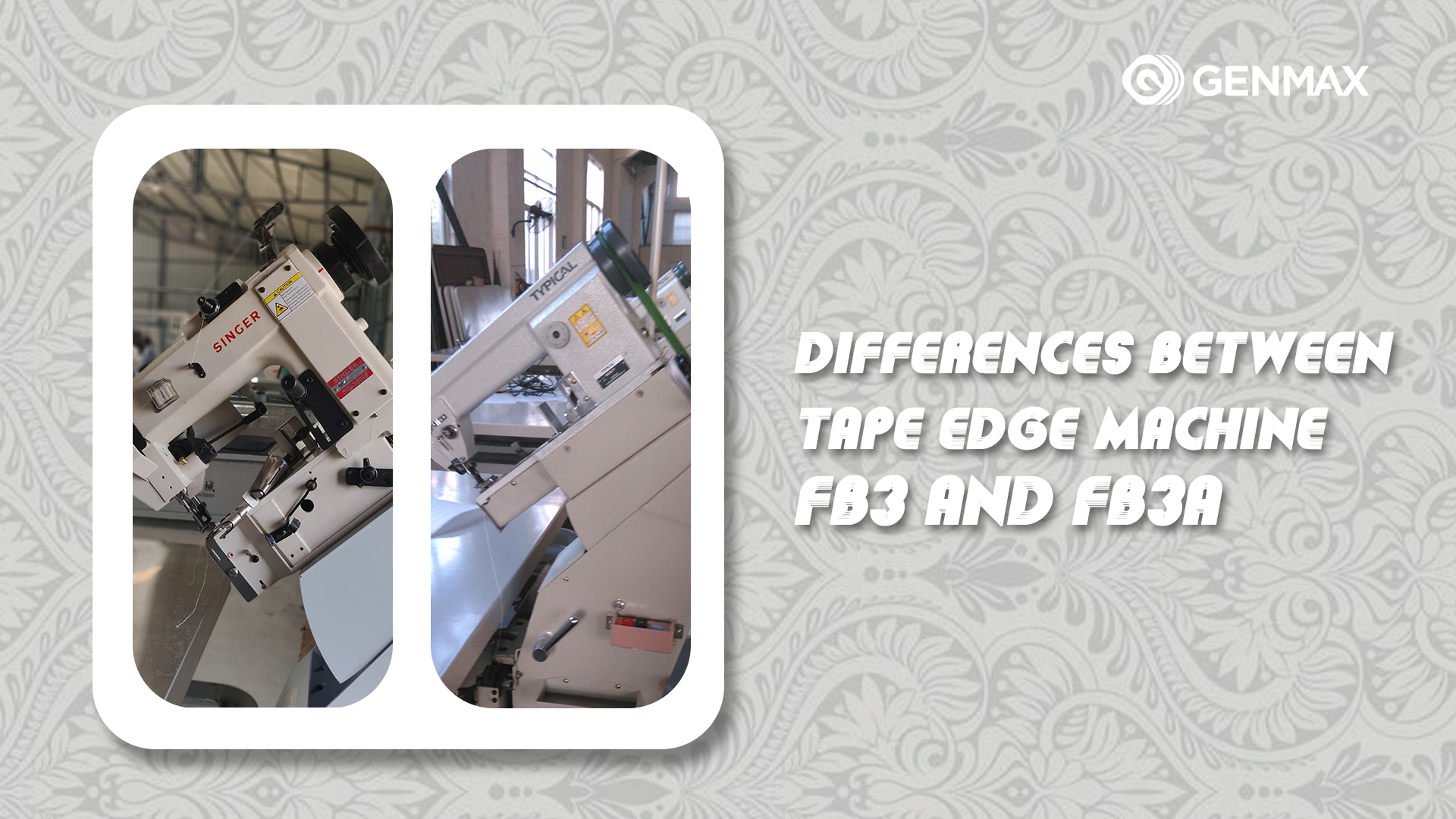

This time we focus on the details of FB3 and FB3A tape edge machine.
Here is the table of attached parameters of these two machines. You can have a comparison clearly.
Model | FB-3A（semi-automatic） | FB-3（semi-automatic） | ||
Sewing head | Lock stitch TYPICAL 2603/6-7 | Chain stitch SINGER 300U | ||
Capacity | 15 units/h | 10-20 units/h | ||
Thickness of mattress | 30-400mm | 30-500mm | ||
Total power | 1.2KW | 1.12KW | ||
Table | Size | 1600*2000mm 1800*2000mm | 1600*2000mm 1800*2000mm | |
Material | Stainless steel | Stainless steel | ||
The way of lifting | Stable | electronic automatic | electronic automatic | |
Head | ||||
Auto-slowdown at corners | Yes | Yes | ||
The methods of power supply | rotary power supply | rotary power supply | ||
Frequency changer | ShiLi | ShiLi | ||
Power requirement | 380V/220V 3PHASE 60HZ 220V 1 PHASE 50HZ/60HZ | 380V/220V 3PHASE 60HZ 220V 1 PHASE 50HZ/60HZ | ||
Weight | 600 | 600 | ||
In this table, you can see that the biggest difference between FB3 and FB3A tape edge machine is the sewing head.FB3A uses the TYPICAL sewing head, while FB3 uses the SINGER sewing head. It depends on the needs of yourself and also the item you want to sew.
If you want to see more details of tape edge machines,welcome to consult.
