Adjustment Of Welding Pressure Parameters

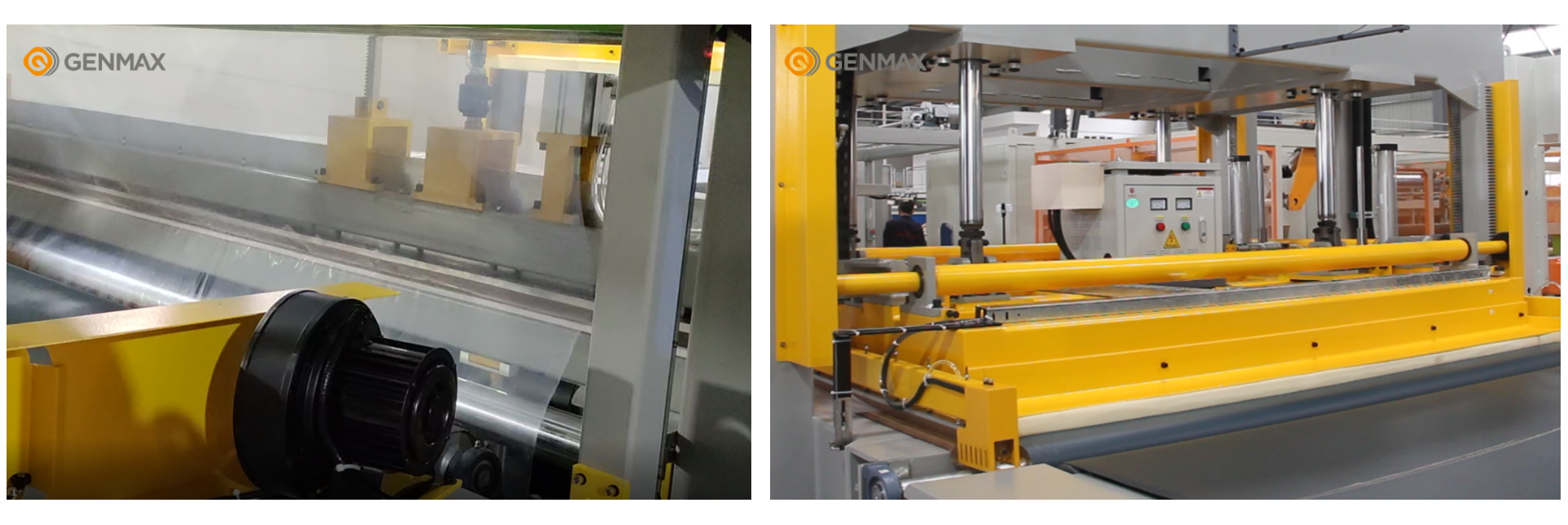

Fully Automatic Mattress Compression Folding Rolling Processing Line
Front keep pressure time：10s

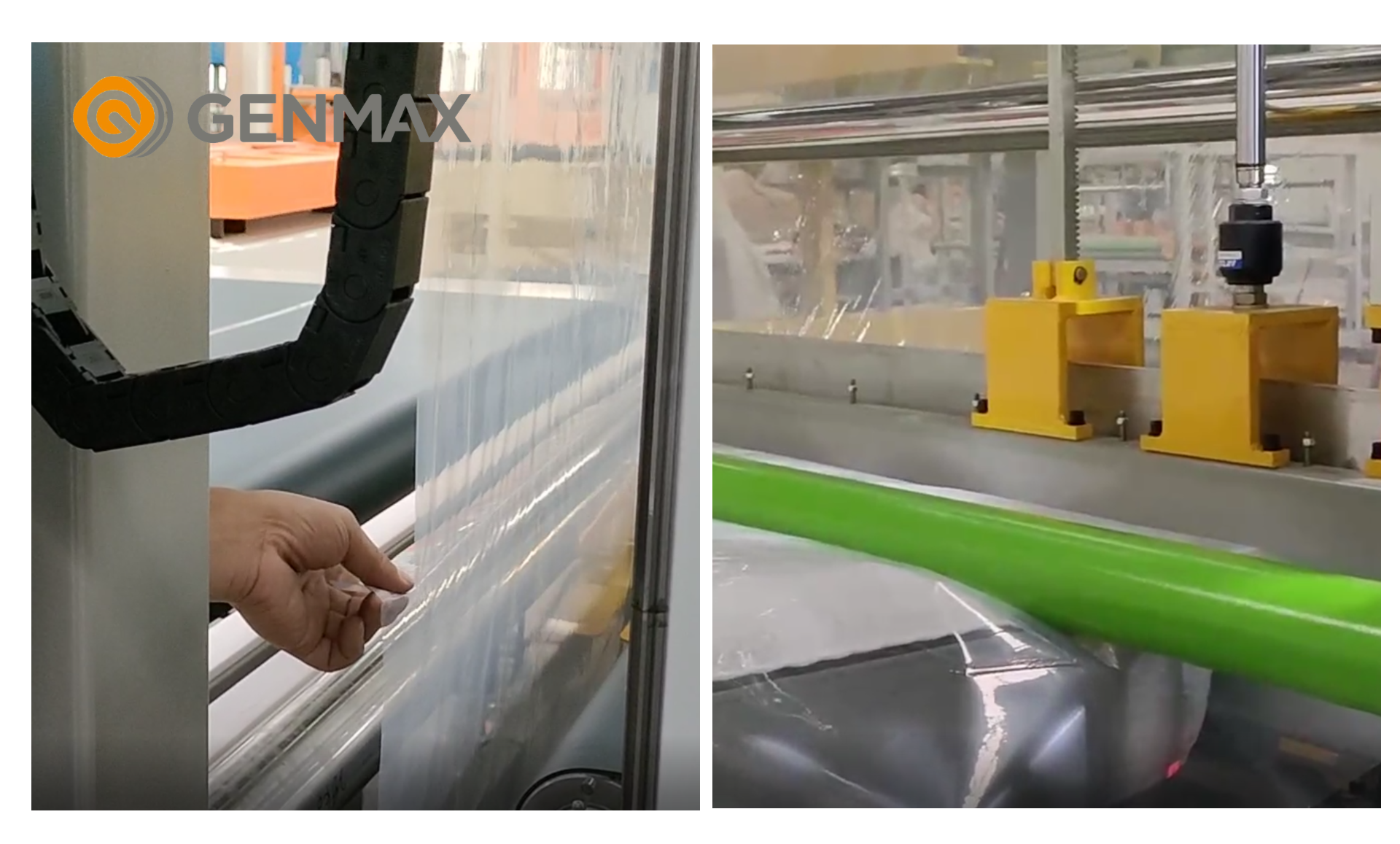

The first edge sealing step of the mattress after the automatic film coating process realizes the front and back edge sealing.
After the heating time, the welding rod will still be pressed on the film for a period of time. It has the functions of heat preservation, uniform sealing and firmer.
L R keep pressure time：10s

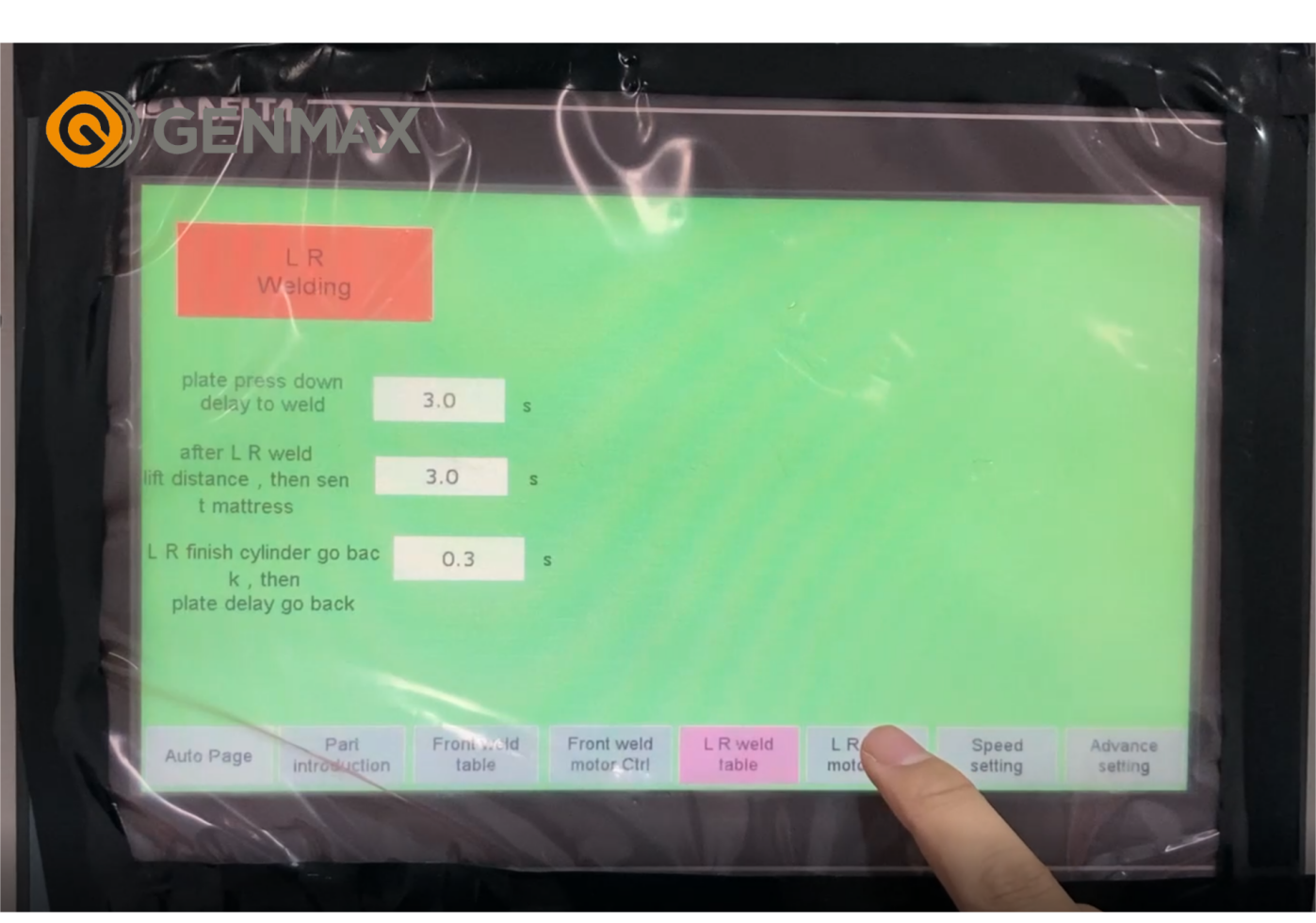

The steps of sealing the mattress on the left and right of the compressor.
Front and rear sealing and left and right sealing are unified theoretically in terms of pressure holding time. The specific time depends on the actual film material, weather, temperature, humidity,Efficiency and other comprehensive factors shall prevail.

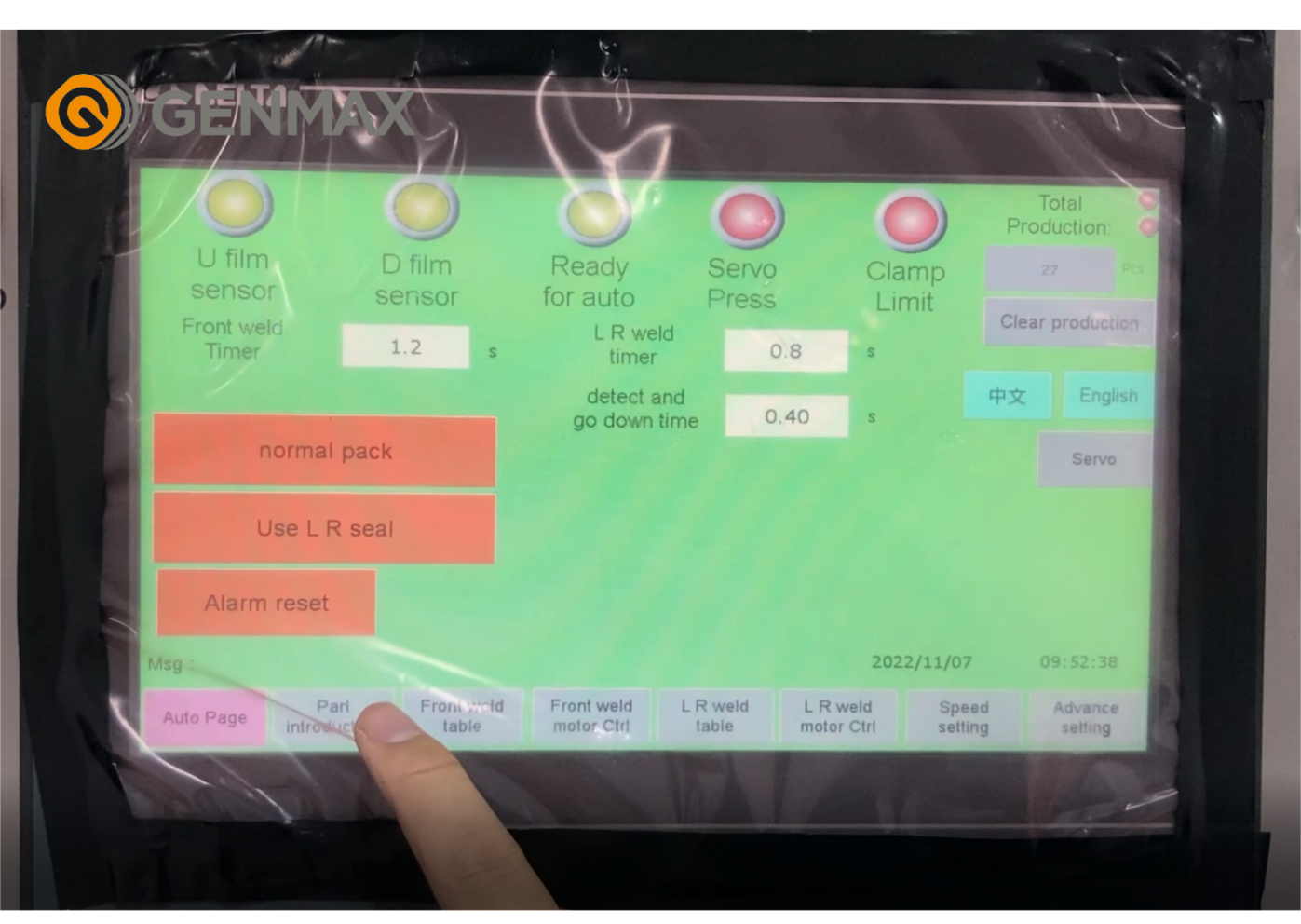

Front weld timer：1.2s L R weld timer：0.8S
It refers to the time when the current passes through the heating. It should not be too long or too short, and should be adjusted slightly according to the actual situation.

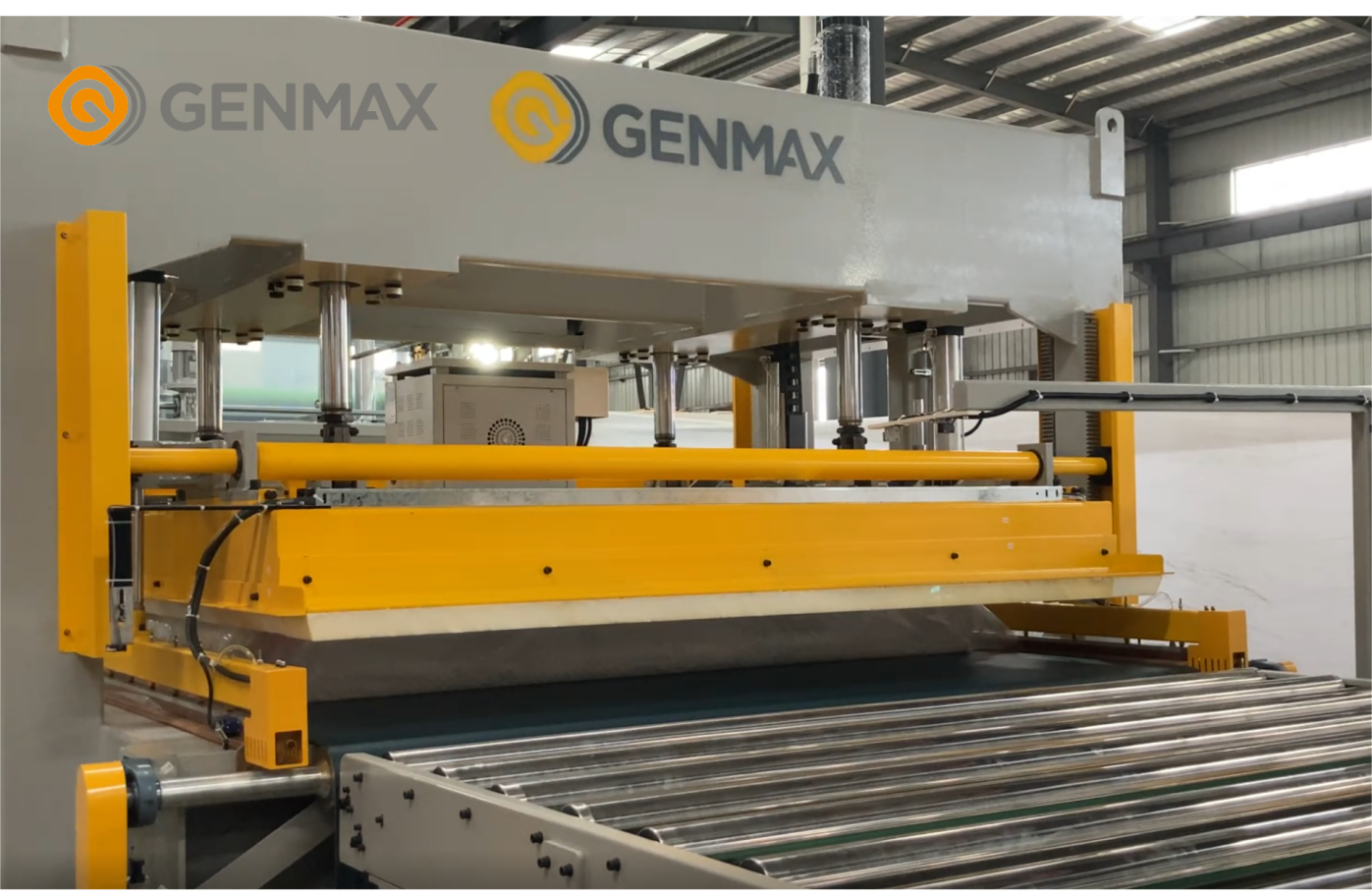

In the 'flat pack' mode, the pressing plate compresses the mattress, maintains the compression state for 3 seconds, exhausts the air in the mattress, and then seals it.

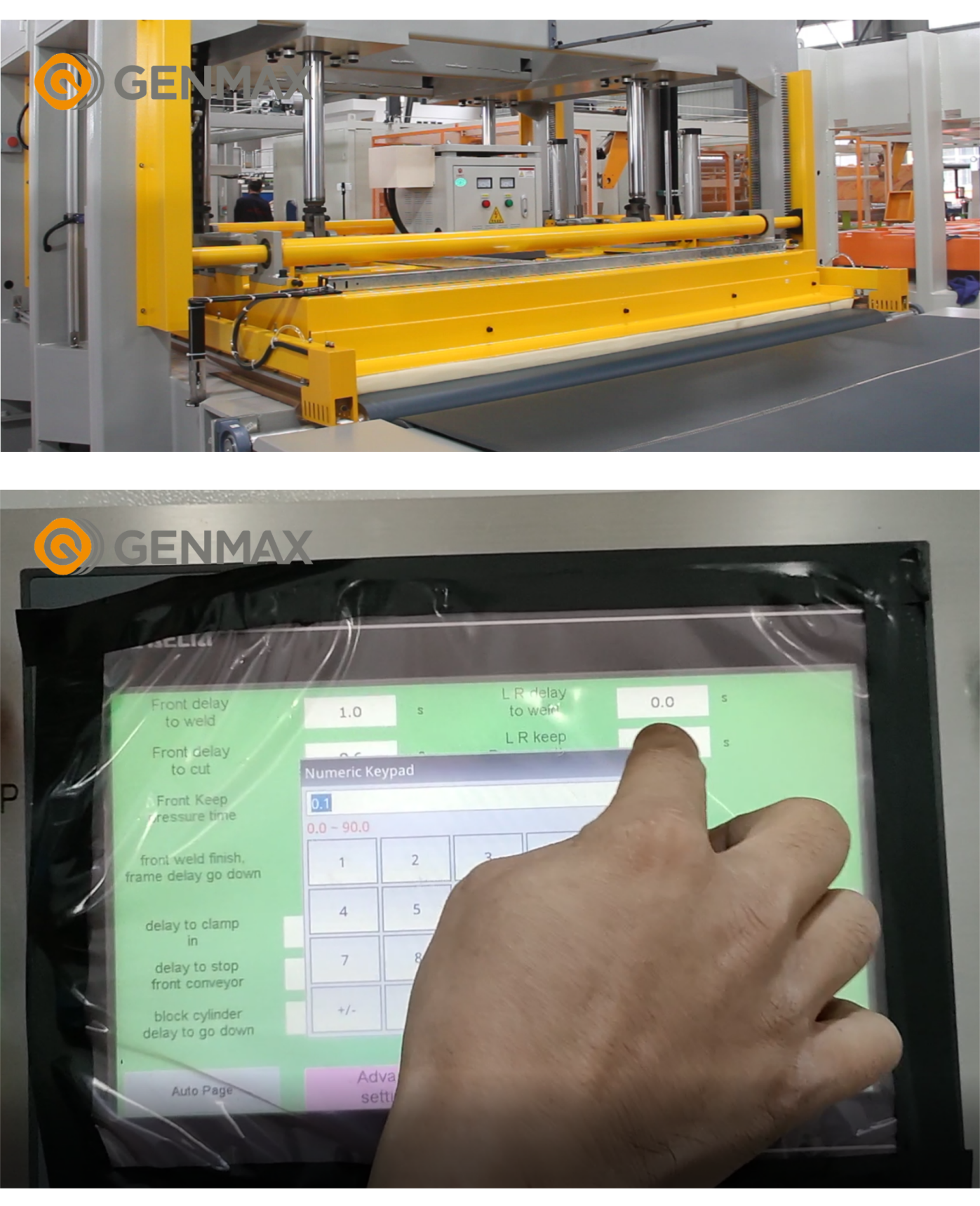

All values can be adjusted by clicking the screen.
