This teaching article teaches you how to adjust the spring parameters.
The general problems will be sorted out. In case of special circumstances, you can ask the after-sales personnel of the company.

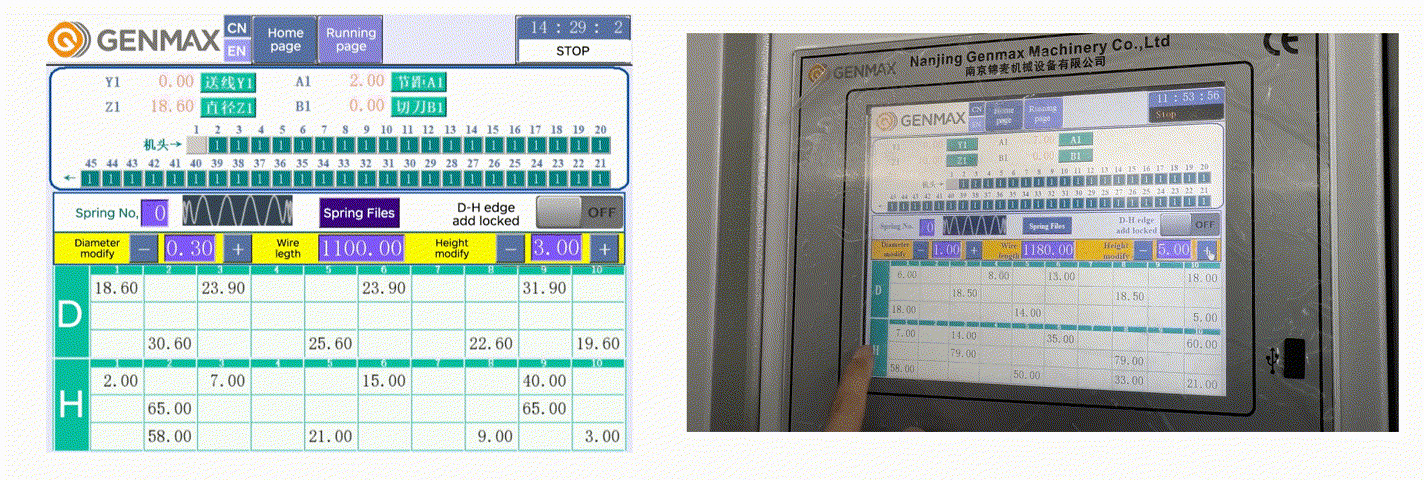

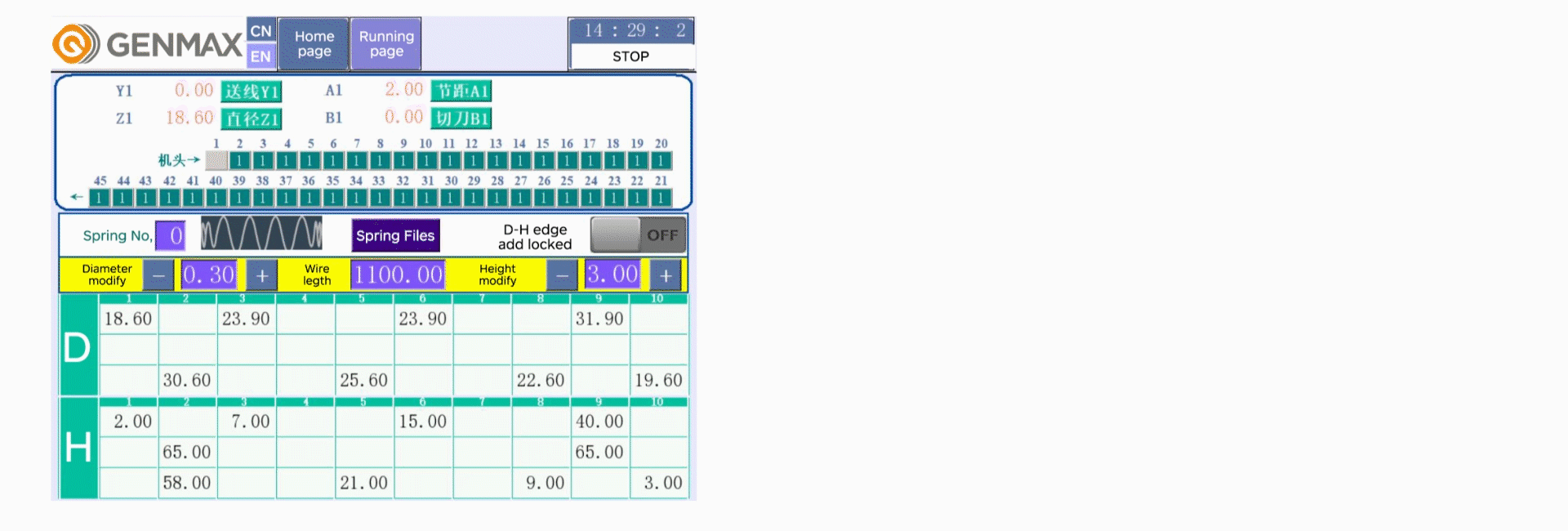

Adjust Parameters Page
D-H edge add locked
'D-H edge add locked' controls the head and tail of the spring. It is generally the first two circles of the head and tail.

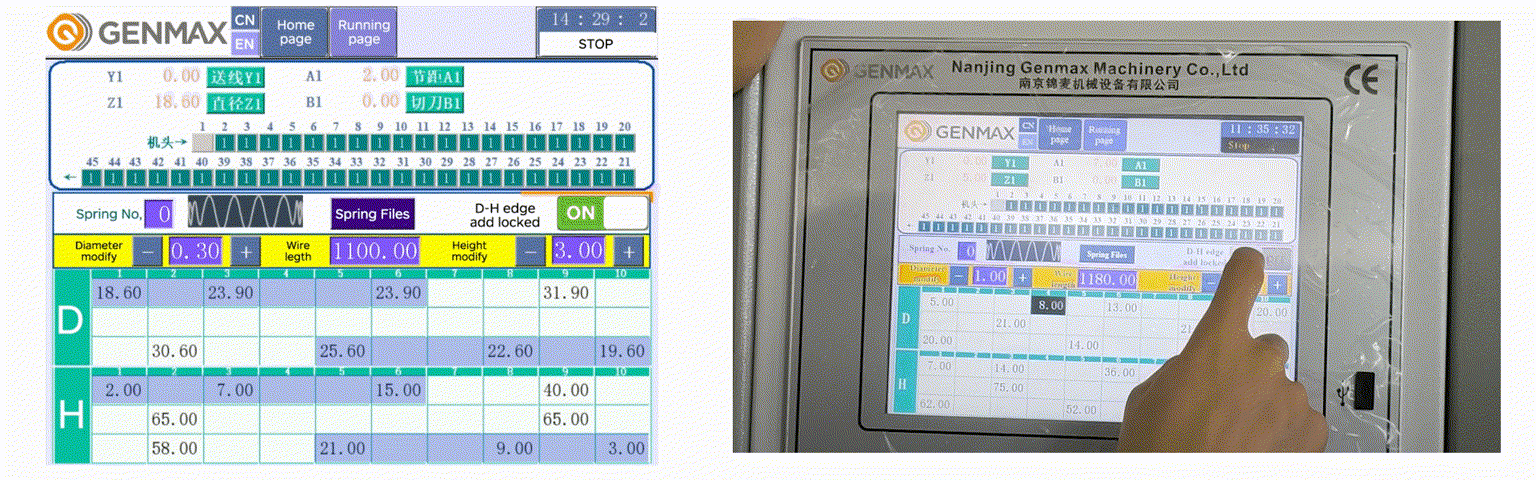

'D-H edge add locked' is opened
When 'D-H edge add locked' is opened, the blue part is locked and the values cannot be changed together.
The rest of the figures change as a whole.
The luminous part is a variable value.

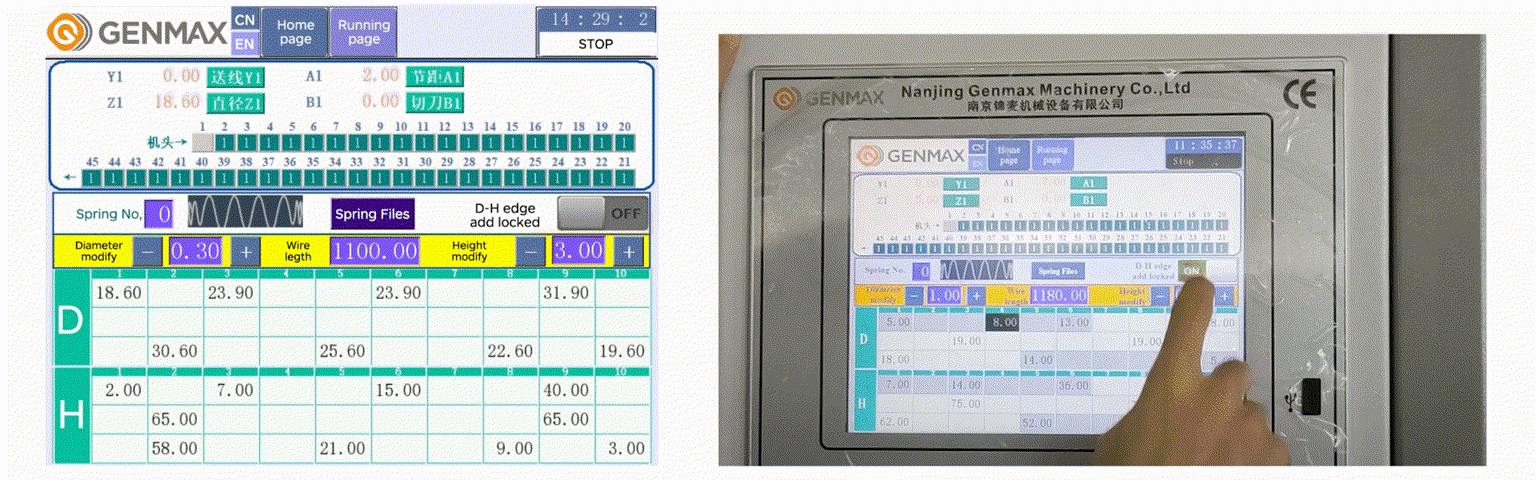

'D-H edge add locked' is closed

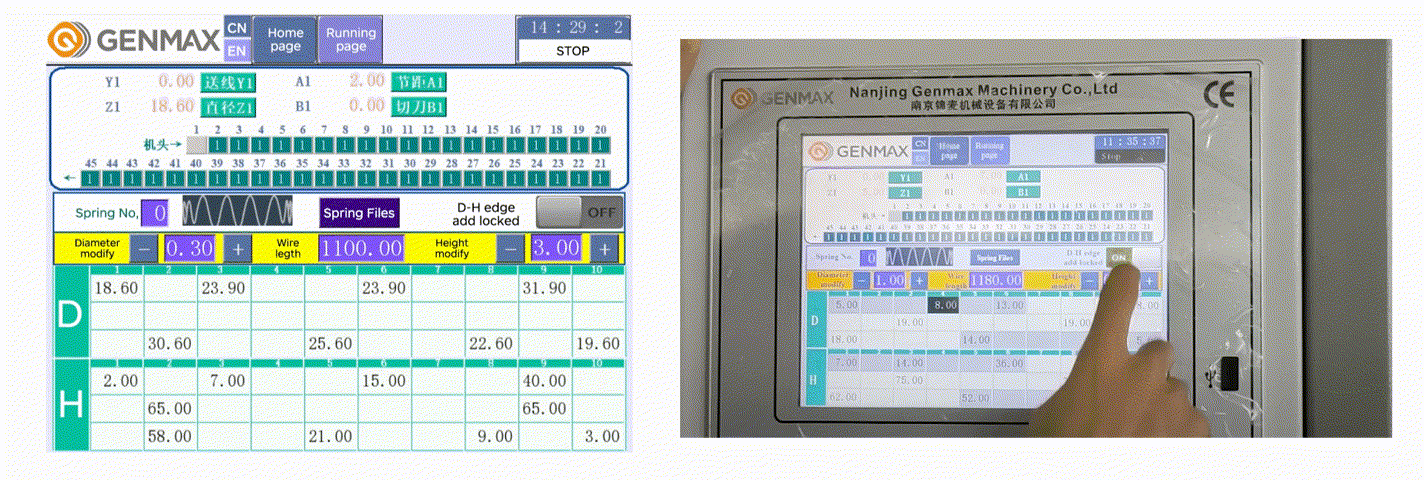

When 'D-H edge add locked' is closed, the parameters of the spring will increase and decrease in overall multiplying ratio.
The luminous part is a variable value.

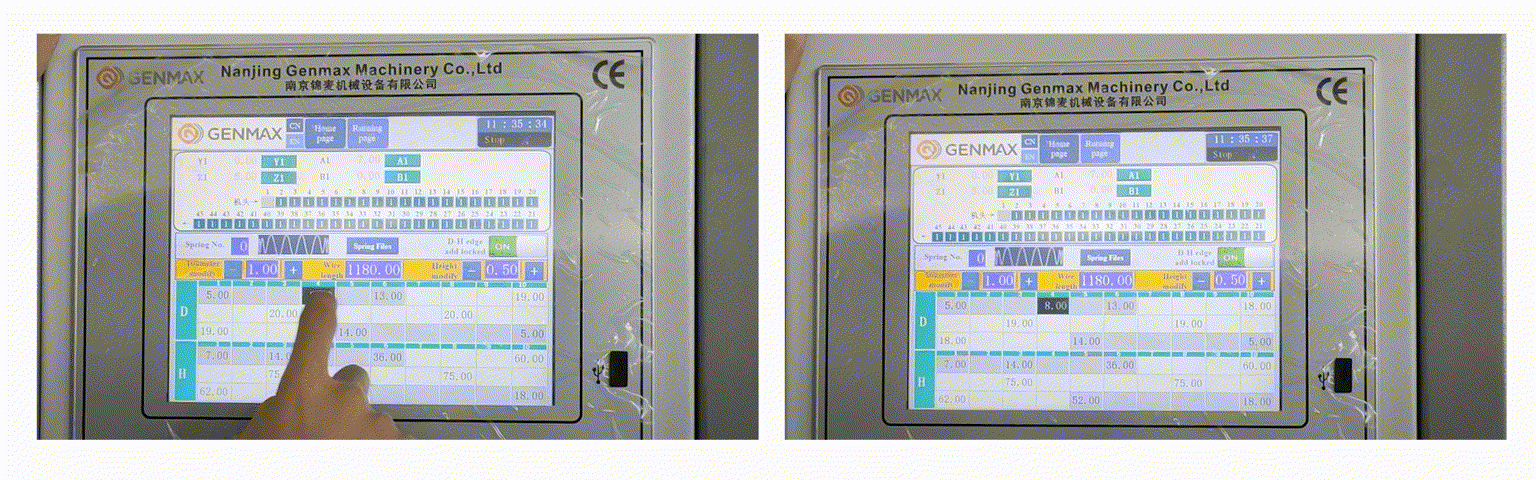

The diameter of the spring will increase or decrease as a whole.

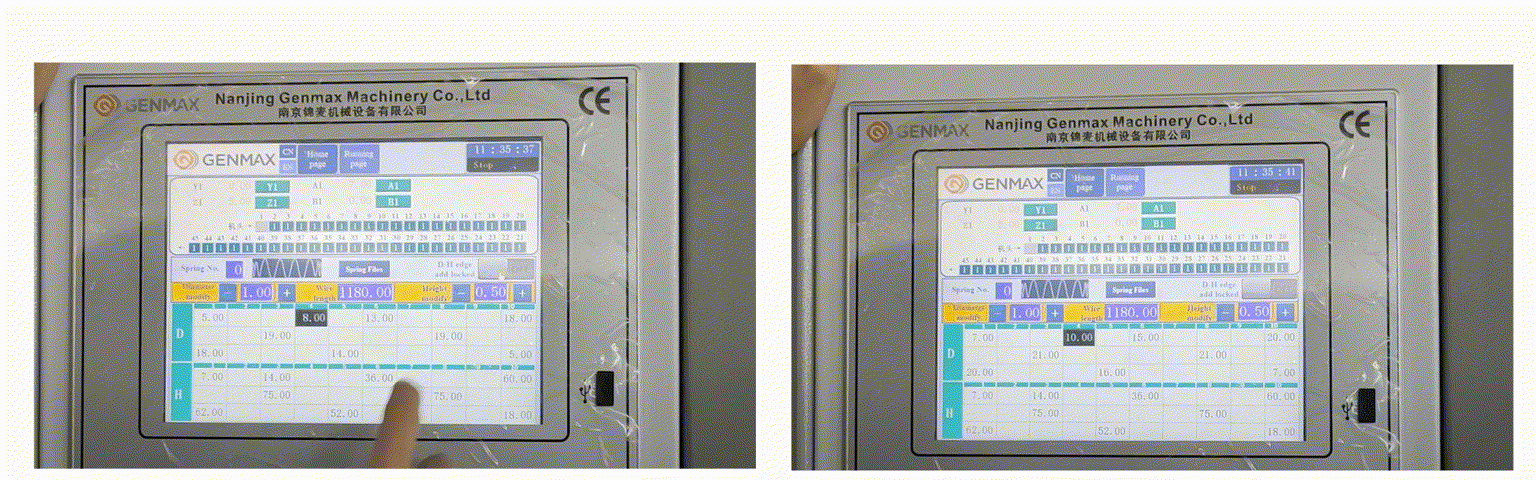

The height of the spring will increase or decrease as a whole.

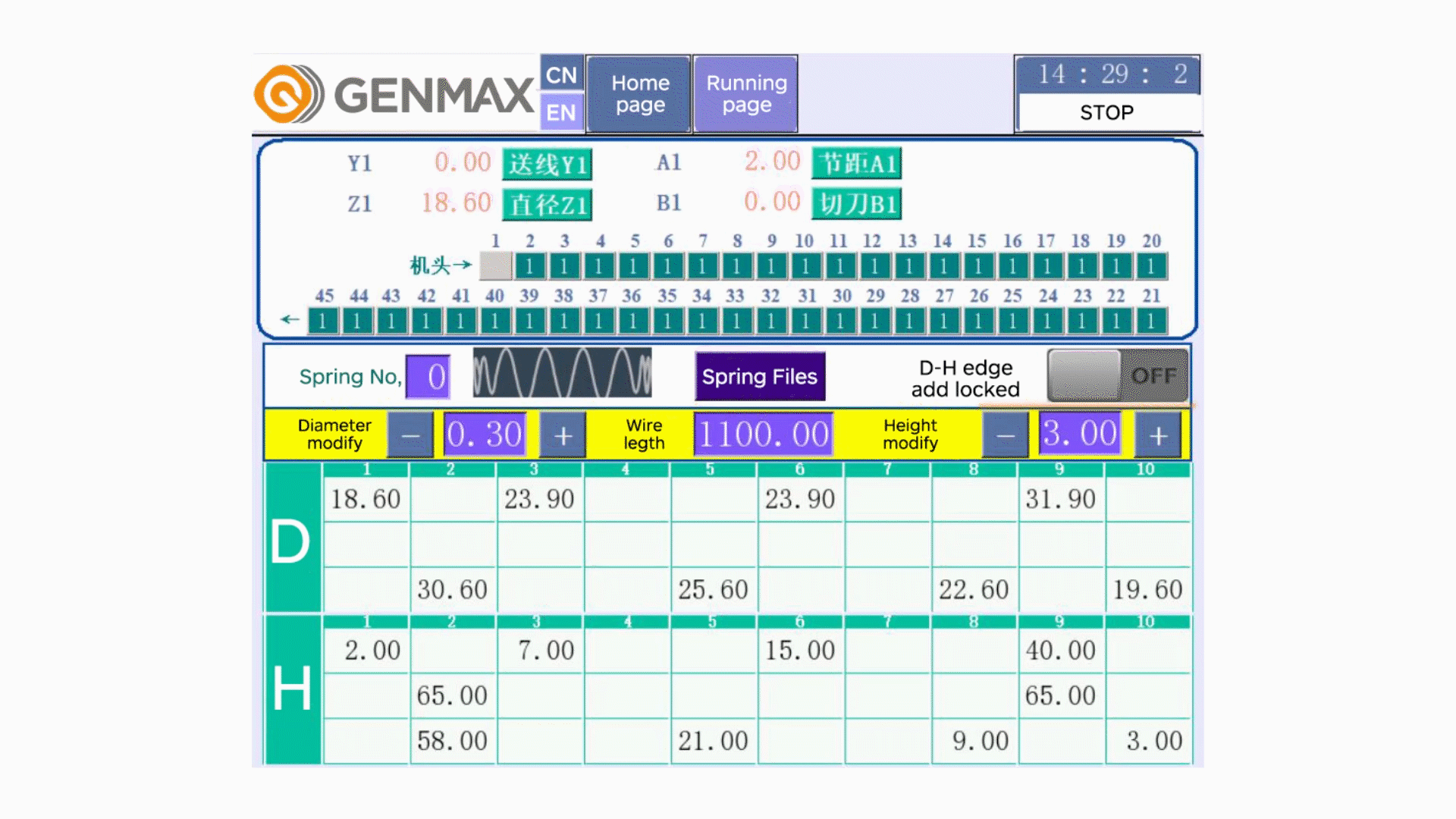

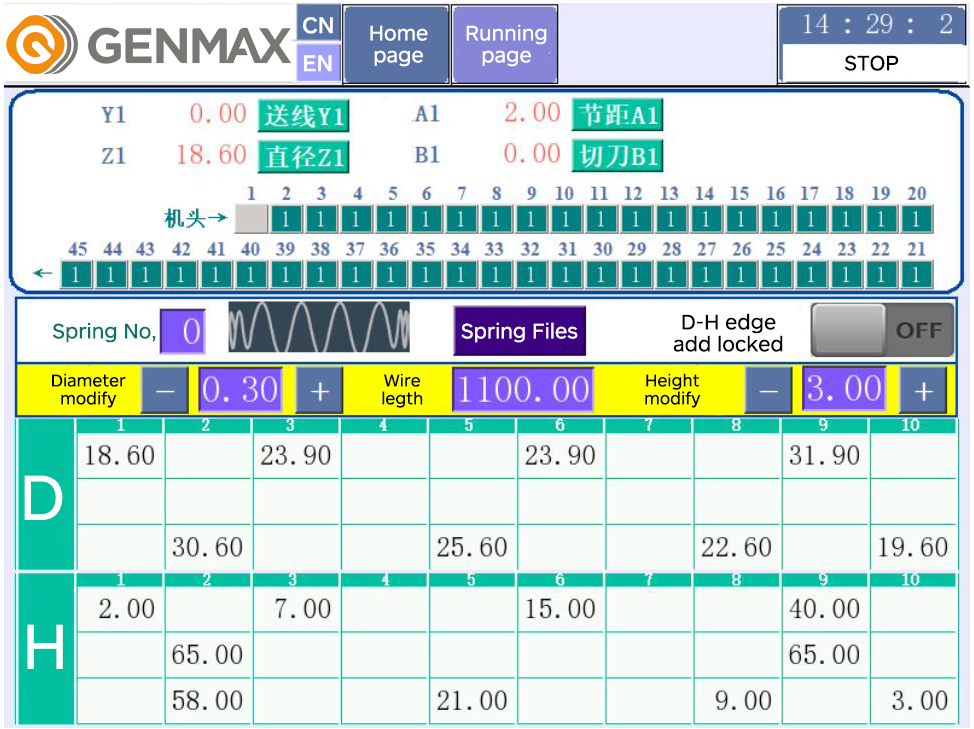

D (diameter) and H (height) correspond to 30 tables respectively.The parameters of each spring turn have corresponding tables.
Take a six coil spring as an example.

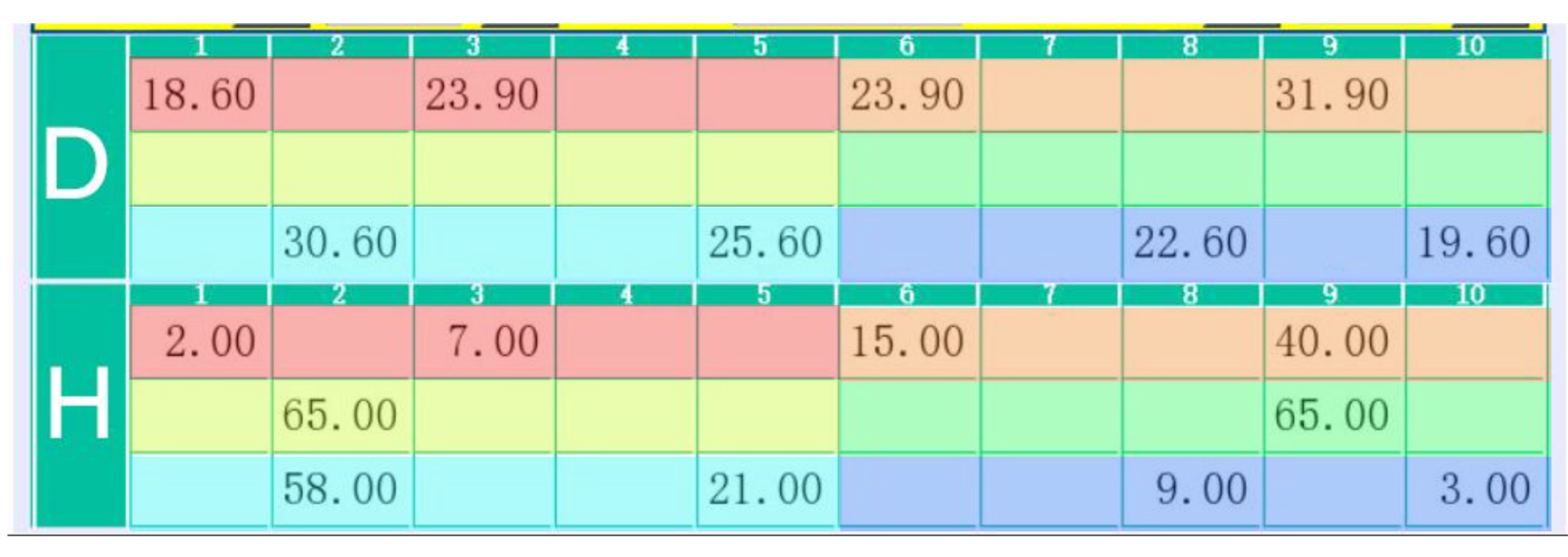

The parameters of each circle correspond to five tables.Use color to distinguish and understand.

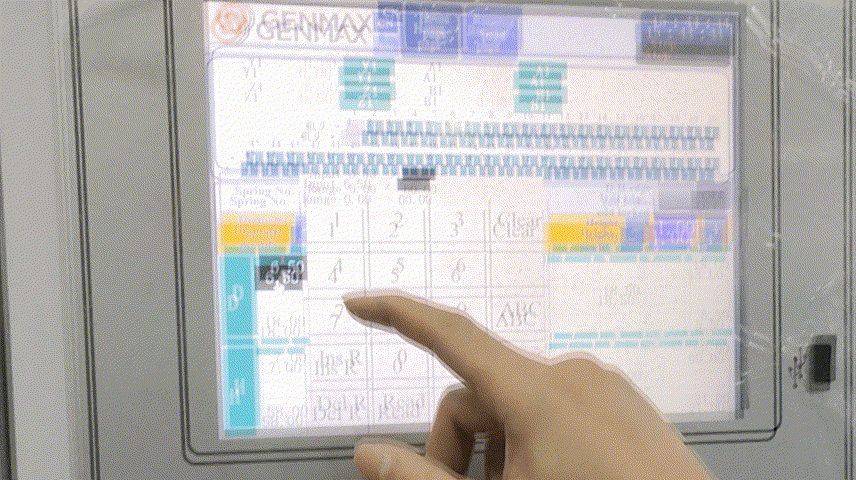

The values in the table correspond tothe parameters of the spring part.The blank table can also be filled with values.

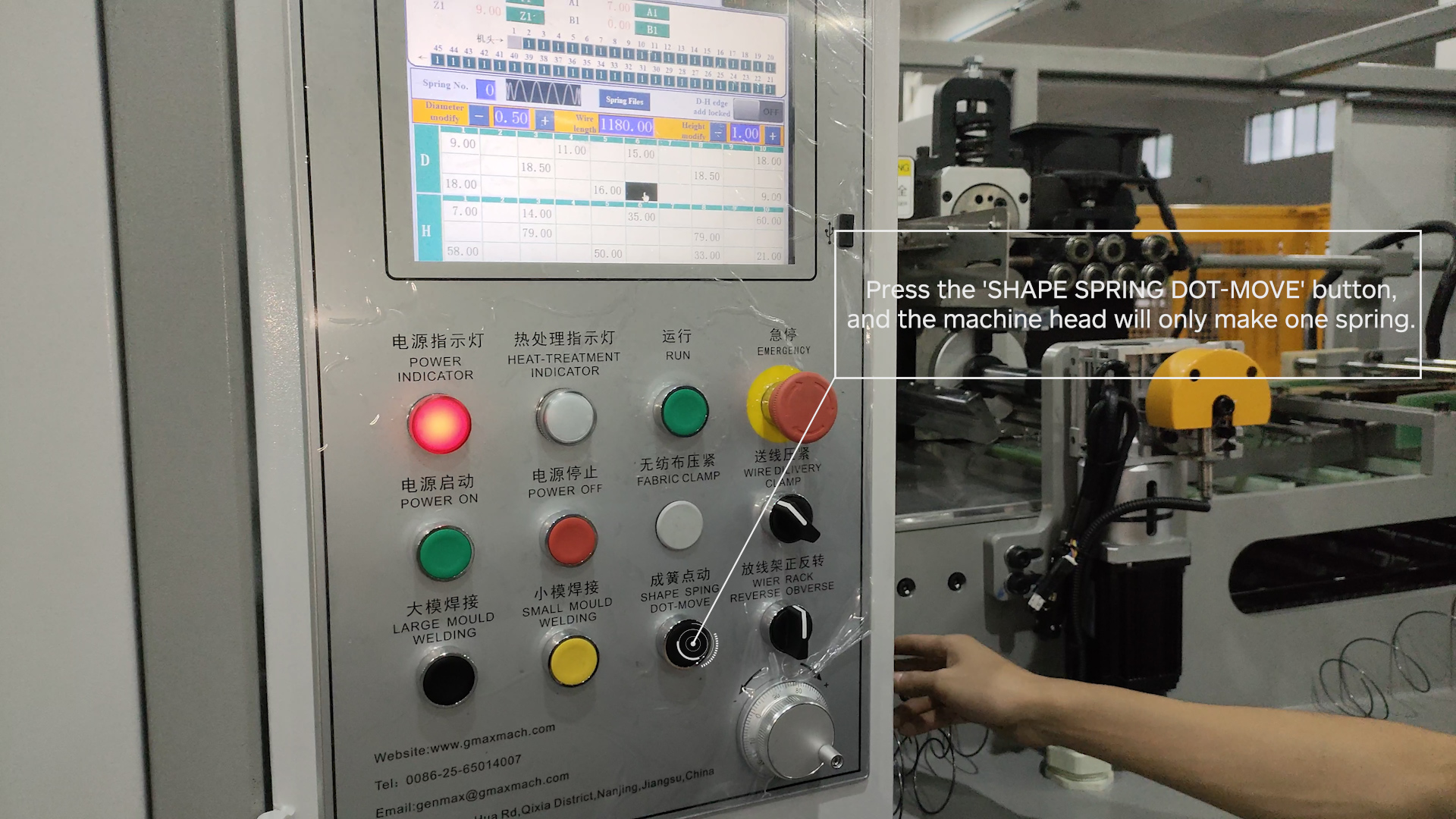

SHAPE SPRING DOT-MOVE

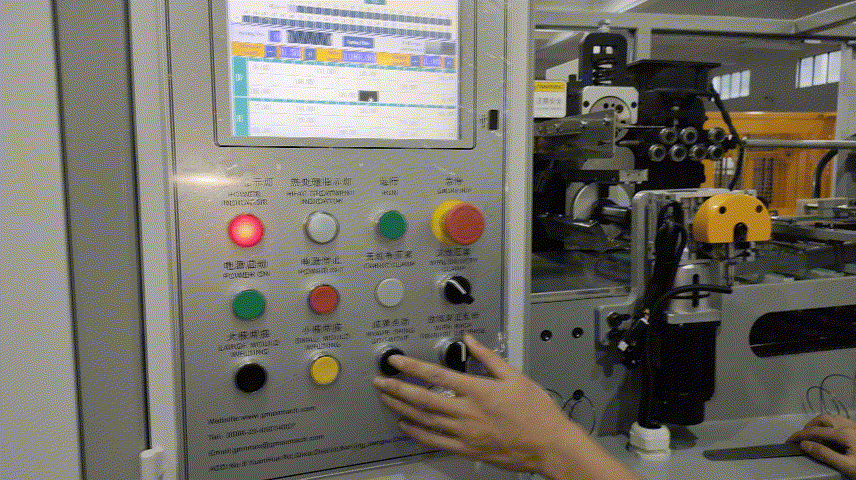

Measure while modifying,and then adjust on the screen according to the actual situation.
Learn more about the video.Please contact after-sales personnel for more questions.
