How to adjust the output of cotton width of FT3000？

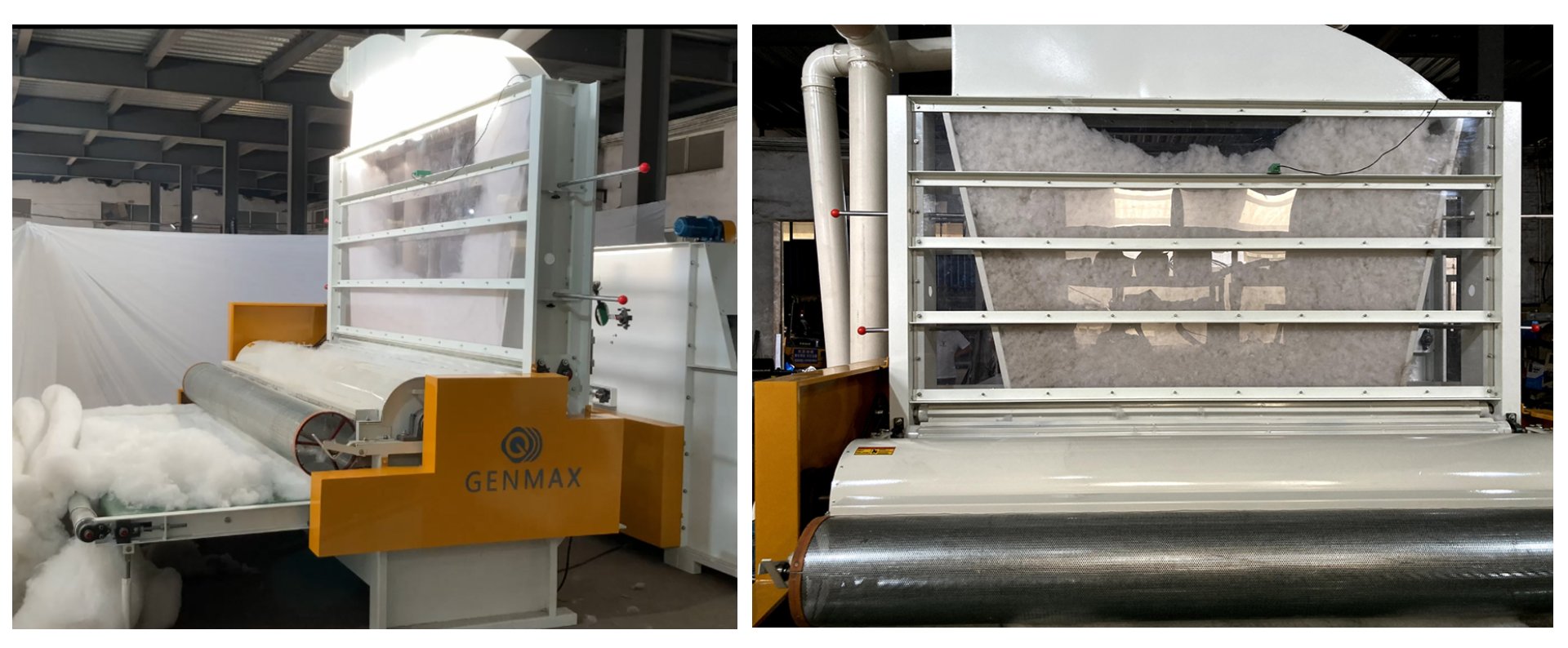

FT3000 is the model of our pile filling machine, and there is also the FT4000 in the same series. These machines are suitable for supplying new cotton directly to the multi-needle quilting machine and carding the old cotton, which can instead of rolling cotton, improve efficiency, and save costs.

Before we introduced how our pile filling machine-FT3000 is wired, We have some general idea about the machine, But as a newest intelligent machine, in the process of using it, we will encounter all kinds of problems.

Such as many users buy the FT3000 back and can not adjust the output width of the machine. Here we will briefly introduce how to adjust the output width of the machine.

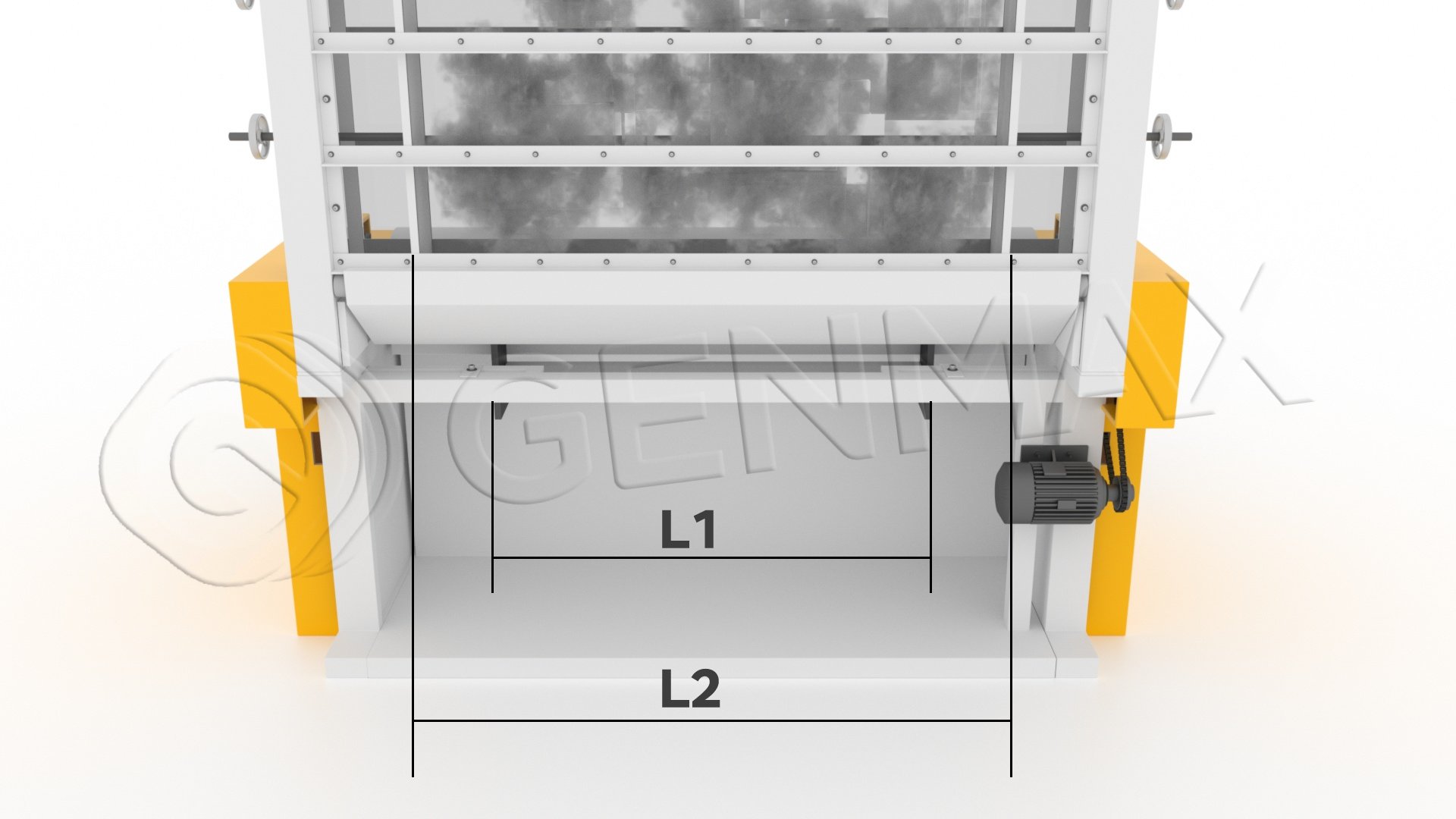

1.The iron bars on both sides of the cotton box adjust the width of L1 in the picture.

2. The partition adjustment below the cotton box adjusts the width of L2 in the picture.

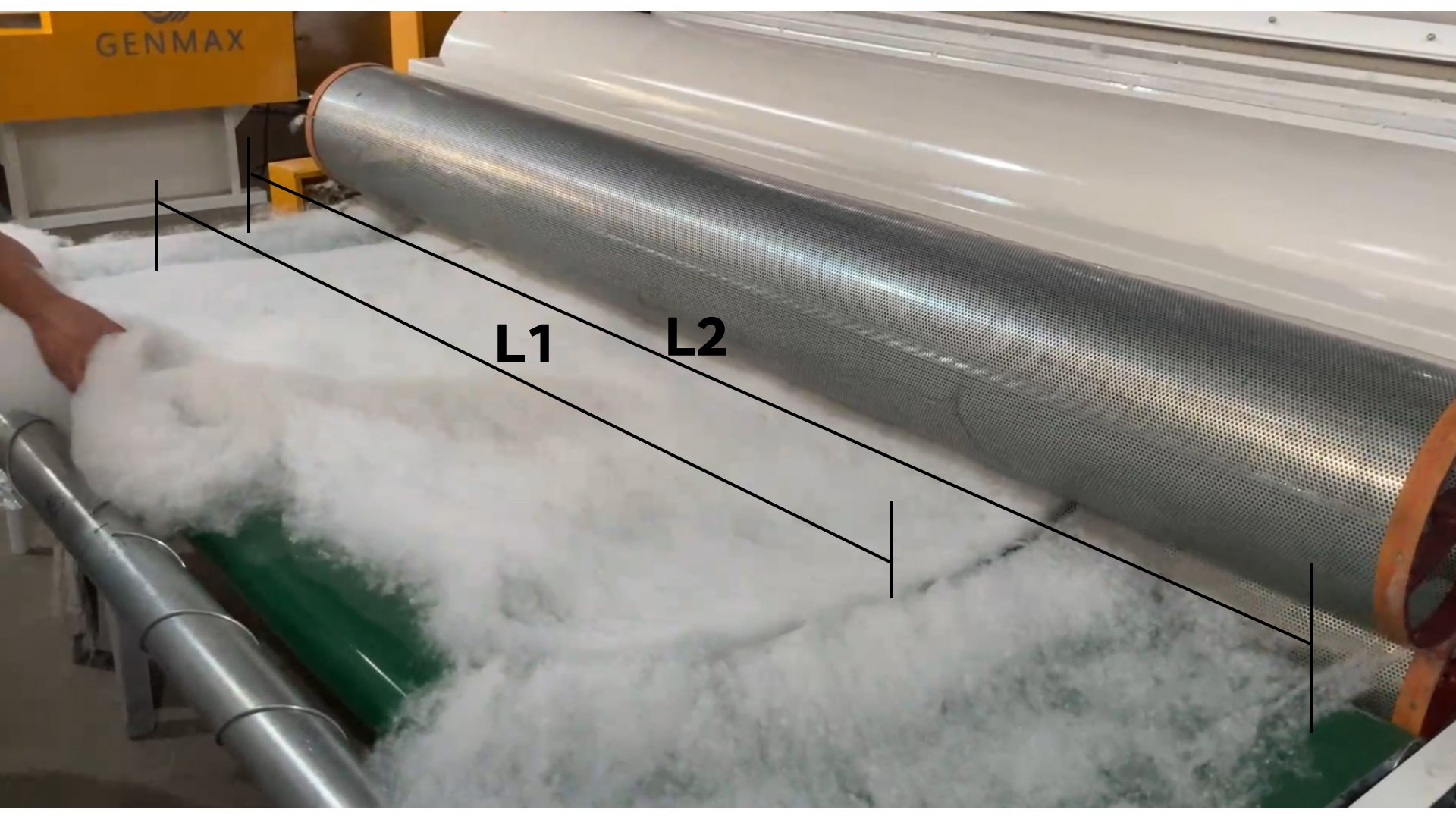

The actual usable length of cotton produced by the machine is controlled by L2, the cut is very obvious, which is helpful for us to see the width of the cleaning cotton.

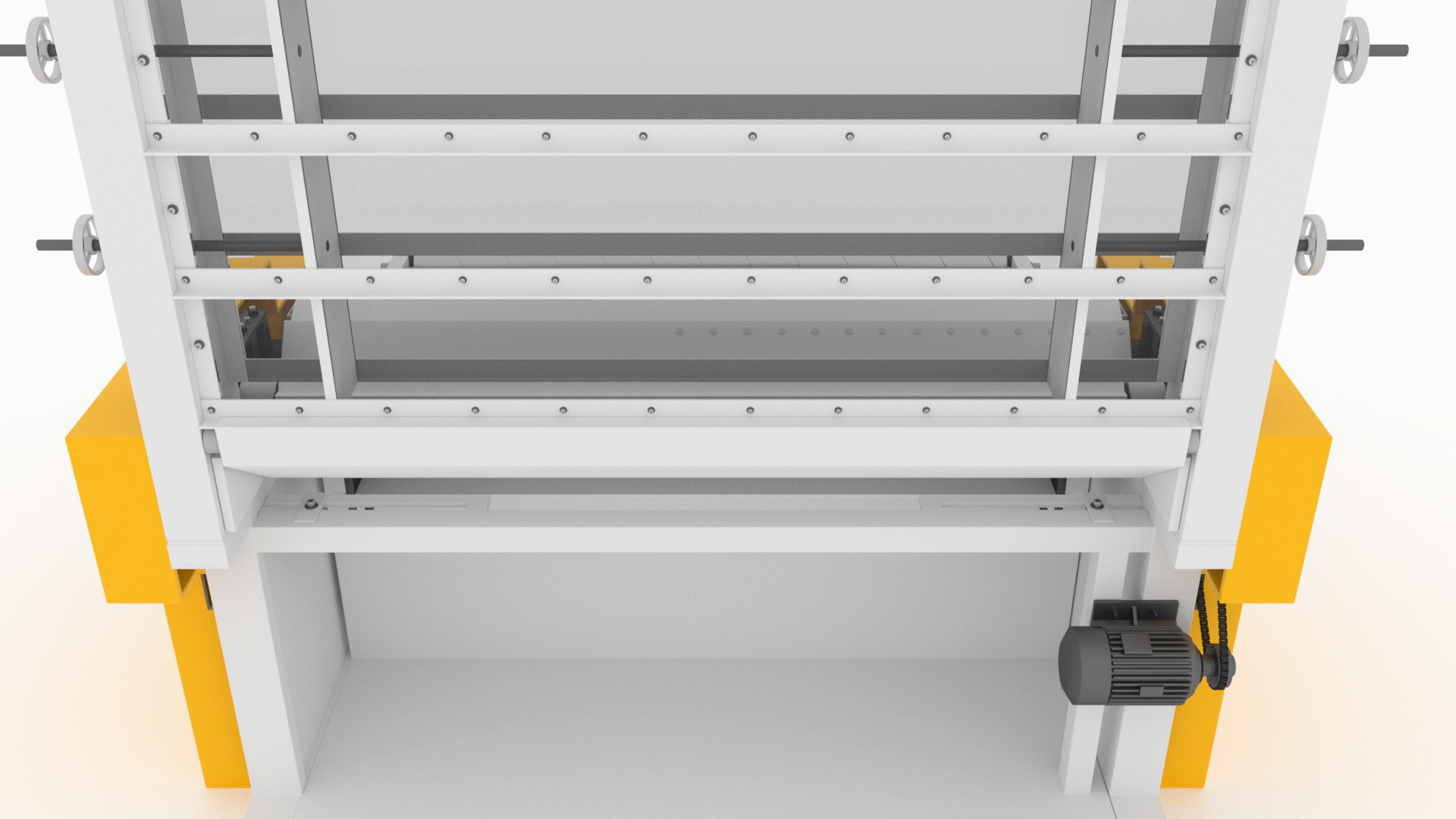

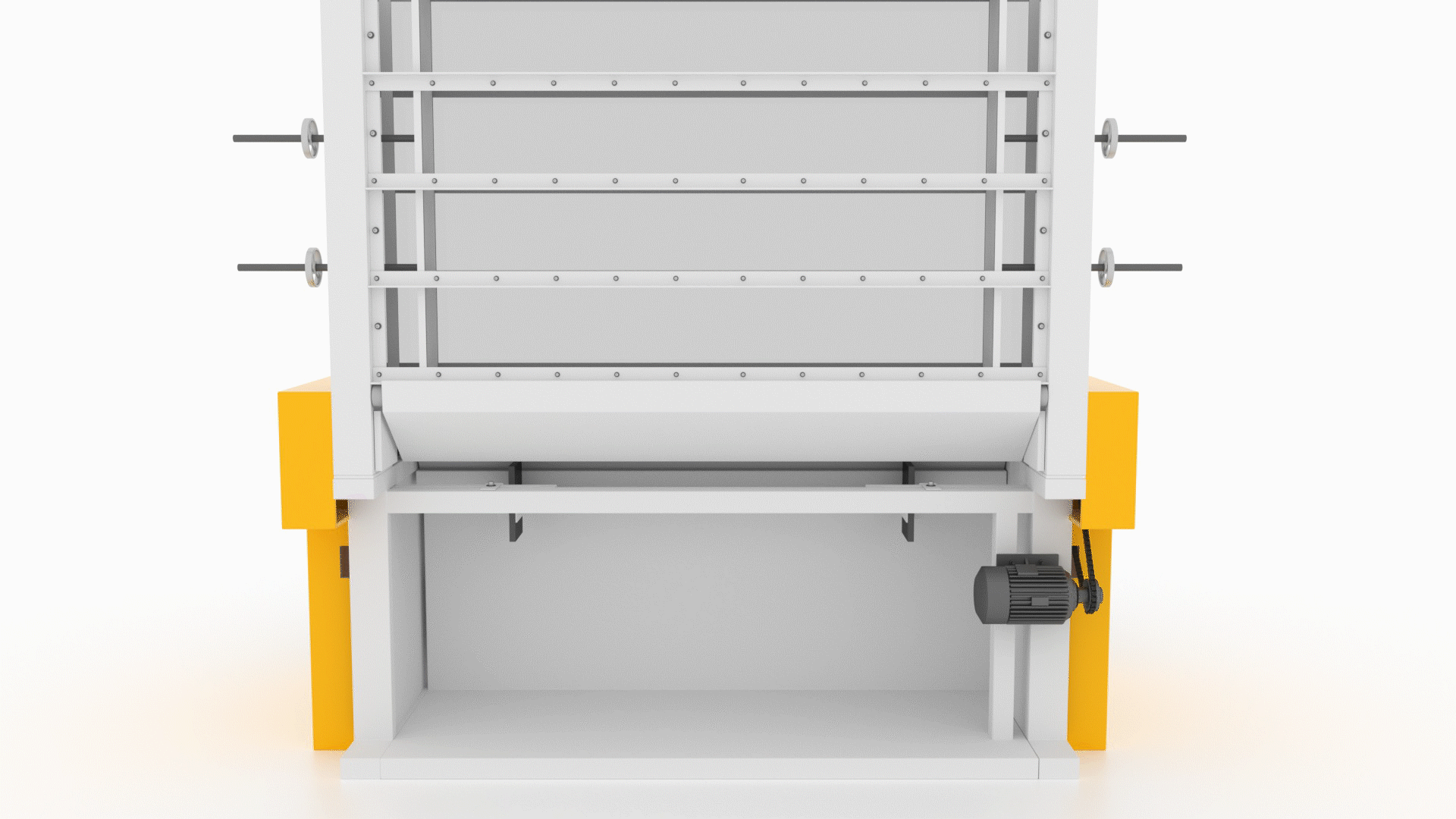

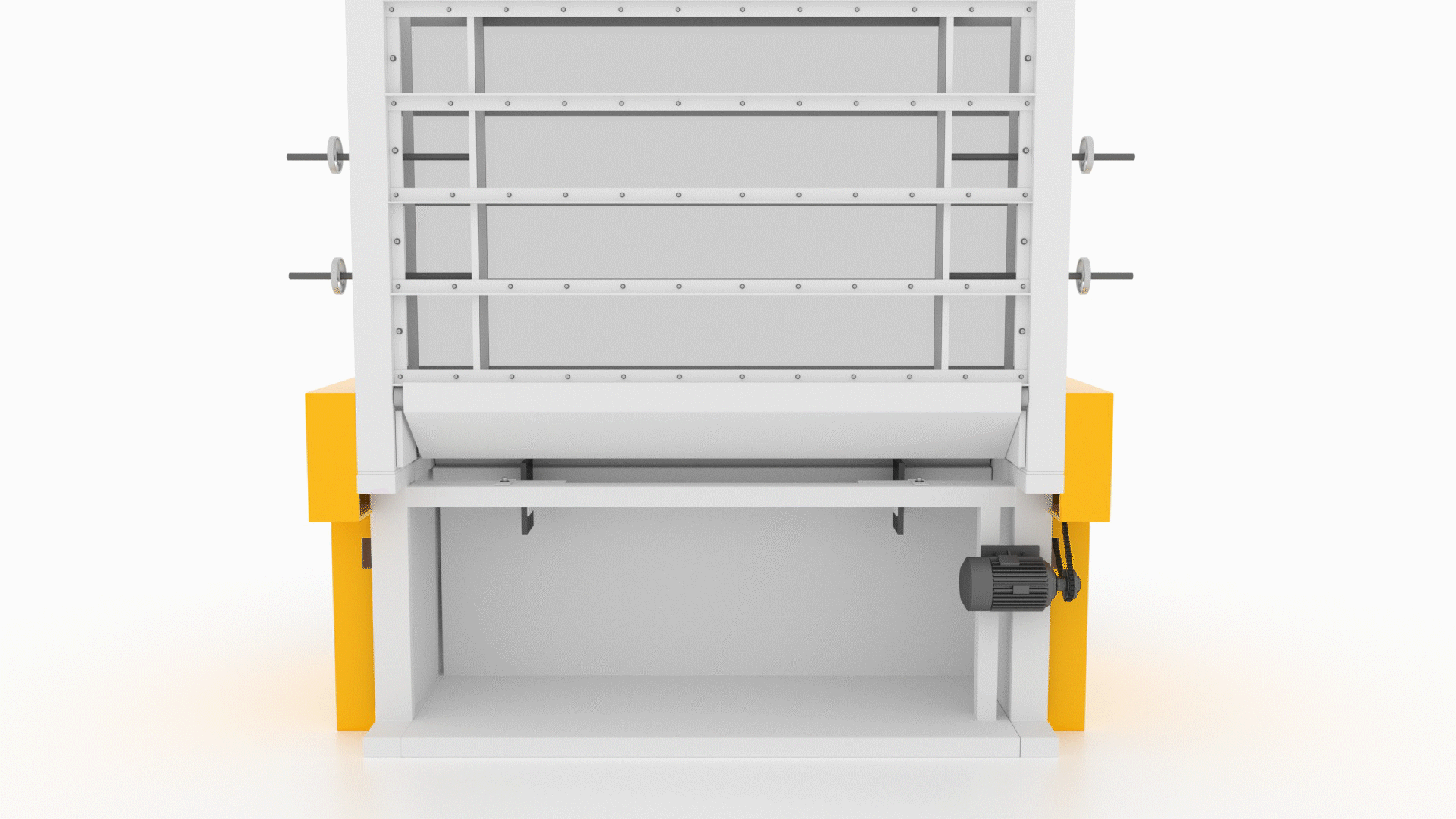

The expression in the text may be too abstract. You can take a look at the animation on the page, which can help us better understand.
