KB6A Extra Heavy mattress overlock flanging machine features 100% original JUKI 6900 sewing head capable of handling 90mm thickness at 4500rpm. Simultaneously overlocks and sews with sensitive automatic flange cutter and redesigned upper/down feeding system with positioning sensor. Powered by genuine HO HSING Motor with stepless speed regulation.
  • KB6A

Availability:

Product Description

|

 OVERVIEW

The KB6A is a high-speed sewing machine designed for ultra-thick fabric applications in mattress manufacturing. Featuring an imported JUKI 6900 machine head with flat-bed mechanical configuration, this system combines exceptional durability with precise stitch formation at speeds up to 4500rpm. Perfect for processing materials up to 90mm thickness, it delivers superior efficiency and accuracy for demanding production environments.

  • Imported JUKI 6900 Head: 100% original high-speed sewing machine technology at 4500rpm

  • Maximum Sewing Capacity: Processes ultra-thick fabric up to 90mm (900mm mattress quilted fabric)

  • Synchronous Feeding Foot Structure: Provides excellent feeding ability for thick and thin fabrics

  • Stitch Length: Fully adjustable to accommodate various material requirements

  • Automatic Lubrication System: Enhanced with cooling device for continuous operation

  • Stitch Formation: Delivers perfect sewing effect across material variations

  • Thread Trimmer: Integrated for production efficiency

  • High-Efficiency Motor: HO HSING stepless speed regulation (100% genuine)

  • New Upper/Down Feeding System: Engineered for superior material handling

  • Upper Positioning Sensor: Smart feature for operational consistency

  • Easy to Operate: User-friendly controls for maximum productivity

  • High Foot Lift Design: Up to 35mm clearance for thick materials

  • Technical Support: Comprehensive assistance for operational questions

|

 PRODUCT FEATURES

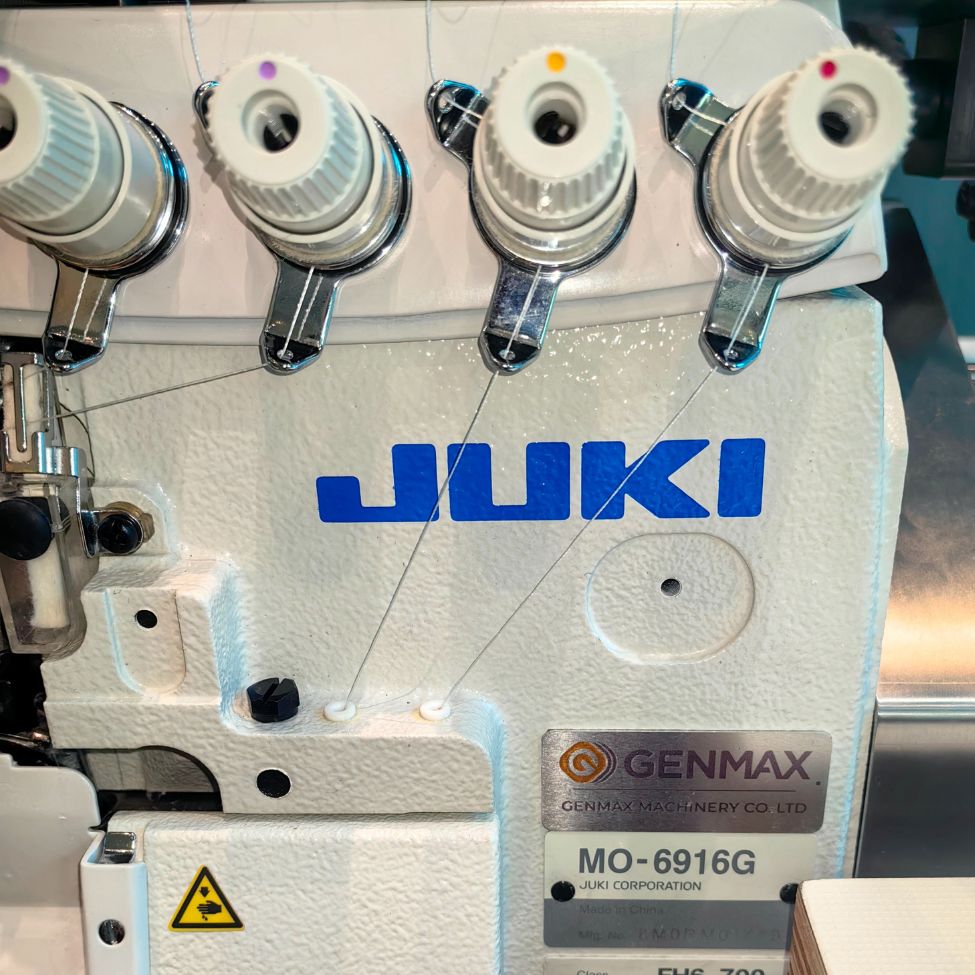

Imported Machine Head

Imported Machine Head

Genuine JUKI 6900 sewing head handles extra-thick materials up to 90mm, working at high speeds of 4500 RPM to overlock quickly and professionally.

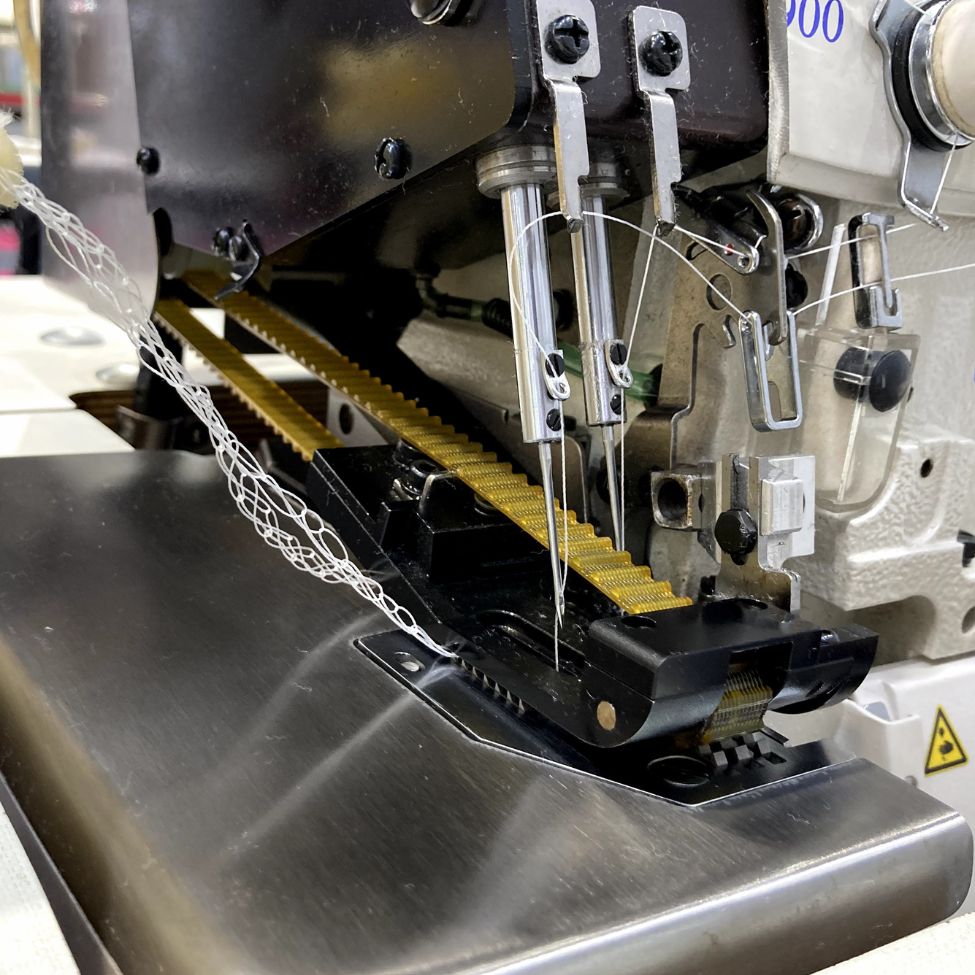

Extra Heavy Thickness

Extra Heavy Thickness

Special design with high-lift foot press (up to 35mm) easily manages very thick mattress materials that regular machines can't handle, with adjustable settings for both thick and thin fabrics.

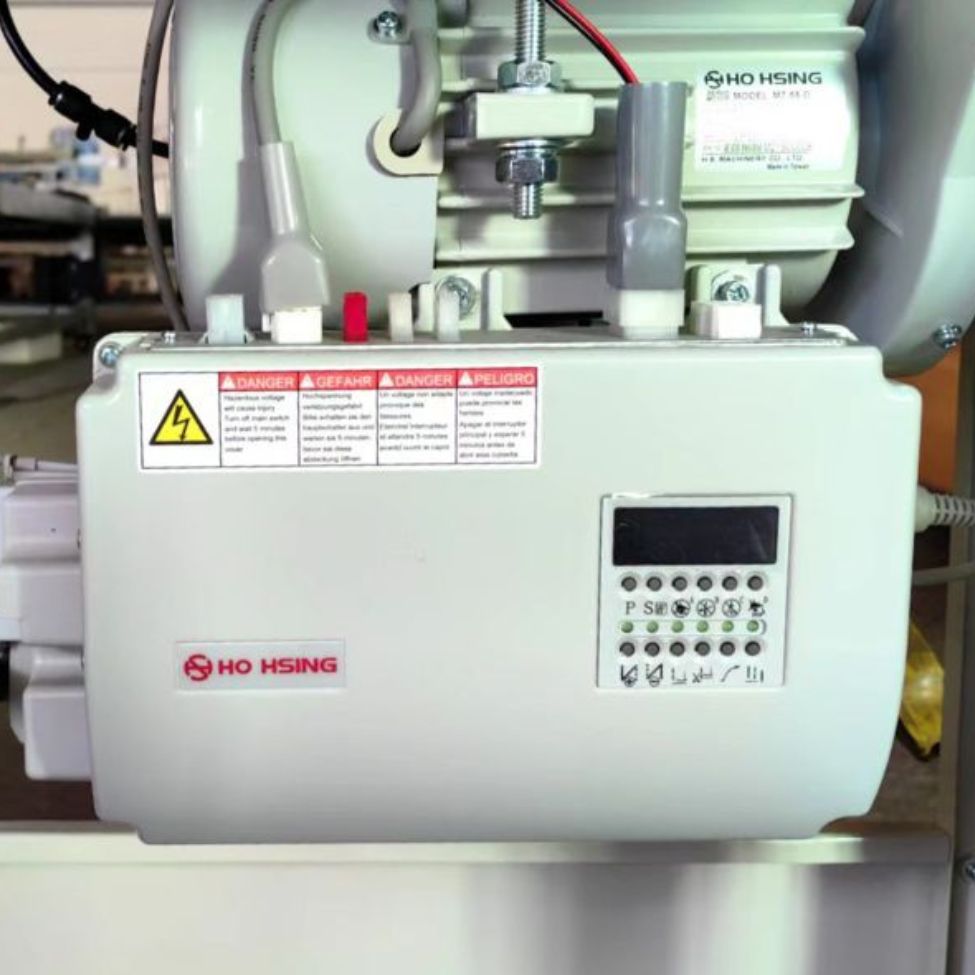

Long-Term Use

Long-Term Use

High-quality HO HSING Servo motor and genuine JUKI head designed to last 8-10 years with minimal maintenance, providing reliable performance for high-volume production.

|

 VIDEO

|

 FAQ

Q: What makes the KB6A "extra heavy duty"?

A: The KB6A can process extremely thick materials up to 90mm, with a new high-life foot press design featuring a foot lift height up to 35mm, making it suitable for the thickest mattress applications.

Q: What is the benefit of the 35mm foot lift height?

A: The high foot lift height of 35mm allows for easier positioning of extremely thick materials under the presser foot, reducing operator effort and improving productivity when working with bulky mattress components.

Q: What is the maximum sewing speed of the KB6A?

A: The KB6A can achieve sewing speeds up to 4500 RPM, enabling high production efficiency.

Q: What sewing head does the KB6A use?

A: The KB6A features a 100% original JUKI 6900 sewing head, we have a unique identification mark to verify genuine products.

Q: What motor does the KB6A use?

A: The KB6A uses a high-efficiency stepless speed regulation motor from HO HSING (100% original), allowing precise control of sewing speed.

Q: Can the KB6A process both thick and thin fabrics?

A: Yes, the KB6A is designed for easy conversion between thick and thin fabrics, allowing it to process both effectively.

Q: Can the needle pitch be customized?

A: Yes, the needle pitch can be adjusted according to customer needs, providing versatility for different sewing applications.

Q: What is the expected durability of the KB6A?

A: The KB6A has an expected operational life of 8-10 years when properly maintained.

|

 COMPARISON

MODEL KB1A KB3K KB4 KB4A KB6A
Max Sewing Thickness 60mm 70mm 70mm 80mm 90mm
Type of Sewing Head Re-model of domestic head KINGTEX JUKI 6900---6916 PEGASUS JUKI 6900
Press Foot Lift 12mm 15mm 15mm 15mm 35mm
Number of Sewing Threads 4threads 4threads 5threads 4threads 5threads
Feeding Method Pressfoot Pressfoot Belt Pressfoot Belt
Motor Power 600w 550w 550w 550w 750w
Faling Width 25mm 15/25/30/35mm 25mm 15/25/30mm 25mm
Air Pressure 0.4-0.8Mpa 0.4-0.8Mpa 0.4-0.8Mpa 0.4-0.8Mpa 0.4-0.8Mpa
Needle Bar Type Double Bar Double Bar Double Bar Double Bar Double Bar
Max Sewing Speed 3000rpm 3000rpm 3000rpm 3000rpm 4500rpm

|

 PACKAGING

packaging2
packaging3
packaging1
