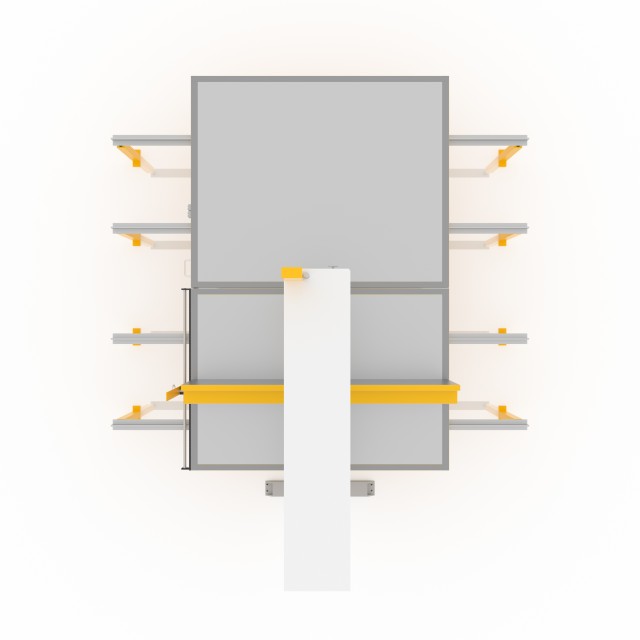

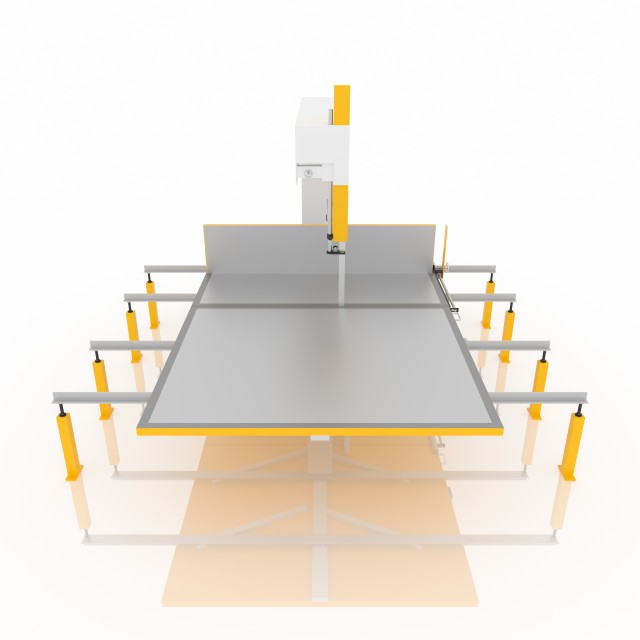

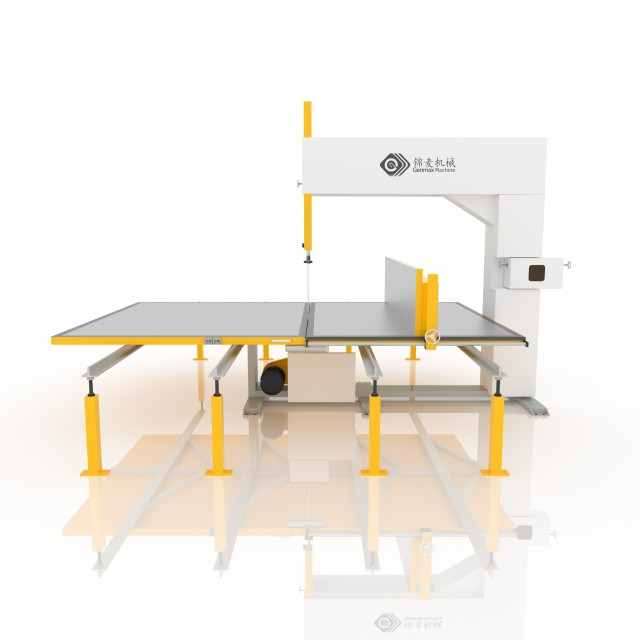

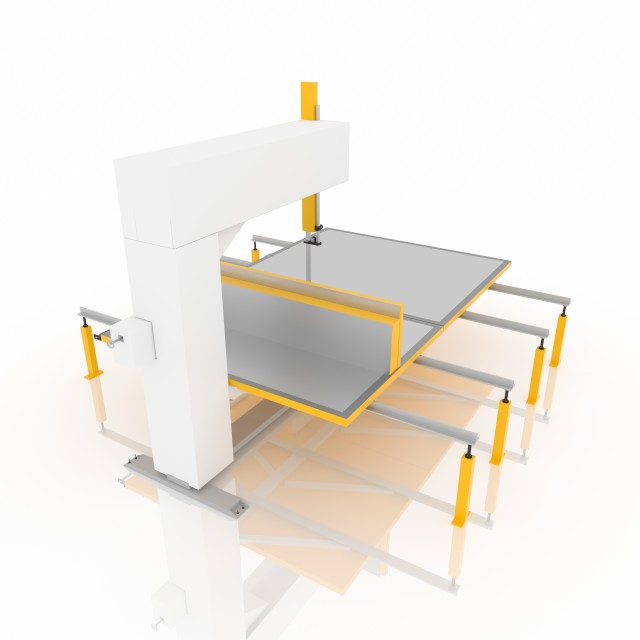

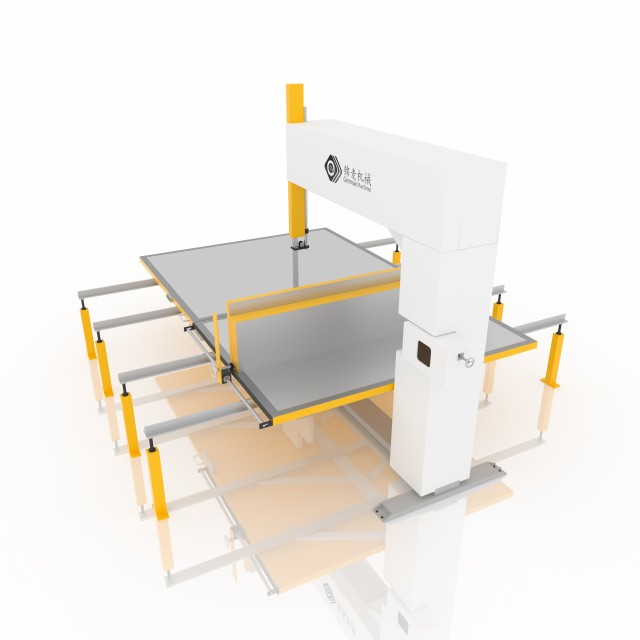

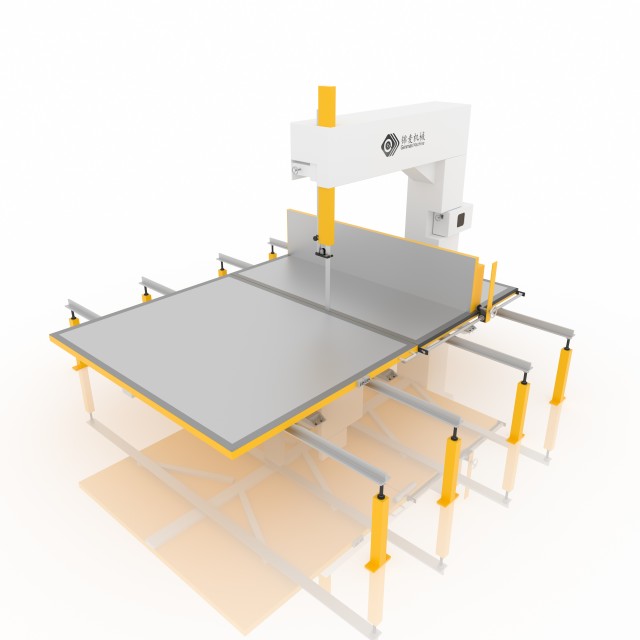

OVERVIEW
The LQ Vertical Foam Cutting Machine delivers precise slicing for sponge blocks with exceptional cutting accuracy. This versatile vertical PU foam cutting machine features advanced engineering for superior performance in foam processing operations.
Automatic Operation: Trimming of blocks and cutting of sheets with rectangular cuts
Highest Precision: Accurate cutting results with advanced linear guide system
Movable Worktable: Flexible positioning for various material dimensions
Dust Extraction: Grinding dust extraction system for clean grinding operations
Orientation Hand Wheel: Convenient accurate positioning for material alignment
Adjustable Height: Cutting head positioning near block for optimal cutting results
Higher Speed Operation: Enhanced cutting speed with maintained precision
Automatic Grinding: Cup wheel grinding disks for consistent knife grinding quality
|
PRODUCT FEATURES

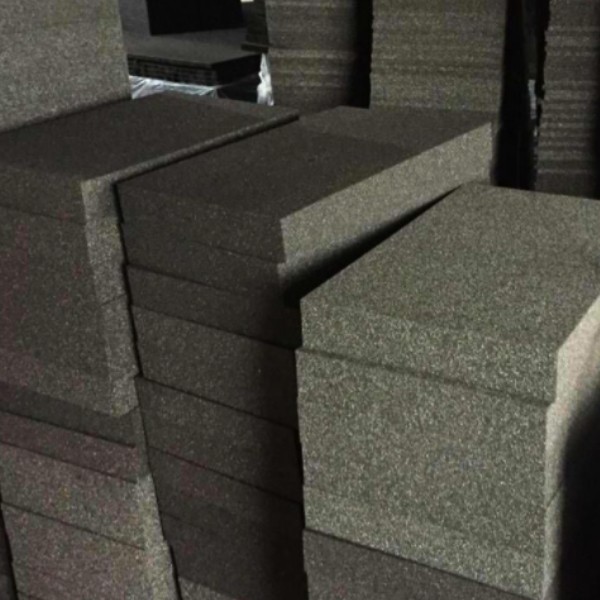

Less Vibration and Higher Speed
Better cutting accuracy because the cutting head is guided in linear guides.

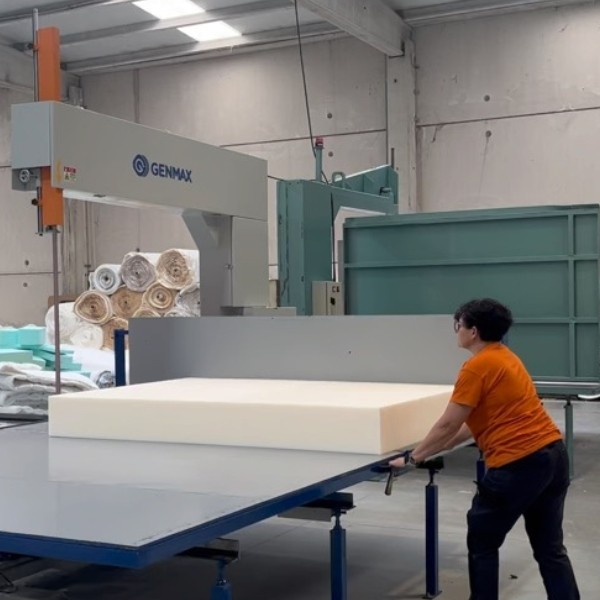

Efficient Single-Operator Design
State-of-the-art control technology allows one operator to manage the entire cutting process, significantly reducing labor costs while maintaining high production output.

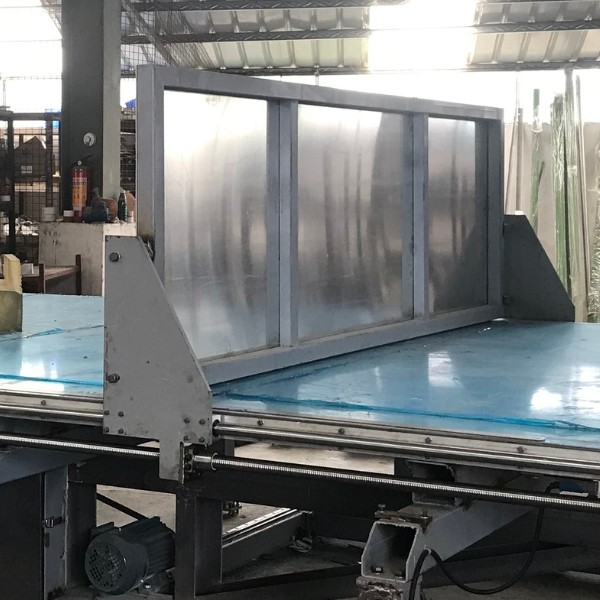

Enhanced Workplace Safety
Optional bilateral safety baffles protect operators during cutting operations, while the efficient vacuuming system removes dust and foam particles to create a cleaner working environment.
|
VIDEO
|
FAQ
Q: How does the machine ensure accurate cutting?
A: The machine uses linear guide rails to guide the cutting head and baffle, resulting in more accurate positioning and precise cuts with better cutting accuracy.
Q: What materials can be cut with this machine?
A: Besides foam/sponge blocks, the machine can also process various types of EVA and pearl cotton materials.
Q: Does the machine have safety features?
A: Yes, the machine can be equipped with bilateral safety baffles and incorporates other safety features to protect operators during the cutting process.
Q: How many operators are needed to run the machine?
A: Only one operator is required, thanks to the state-of-the-art control technology that makes operation easy and comfortable.
Q: Does the machine help with dust control?
A: Yes, the LQ Vertical Foam Cutting Machine includes an efficient vacuuming device to control dust during the cutting process.
|
SPECIFICATIONS
| Inside Table Size | W1720mm*L2440mm | Outer Table Size | W2000mm*L2440mm |
| Cutting Height | 1200mm(1400mm optional) | Knife Length | L8900*W32*T0.45mm |
| Cutting Thickness | ≥2mm |
| Power | 1.74kw | Machine Size | L4000*W4700*H2500mm |
|

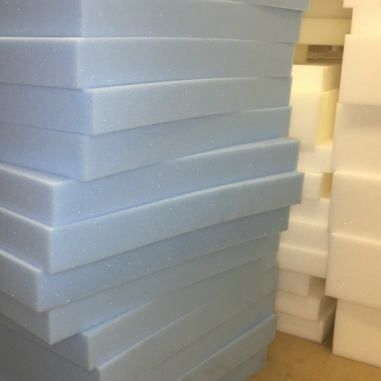

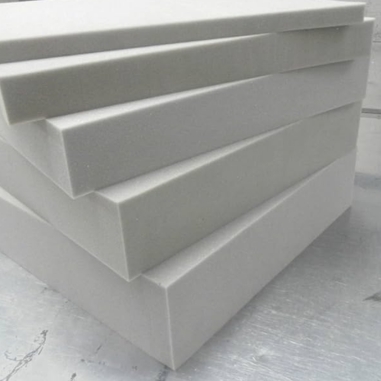

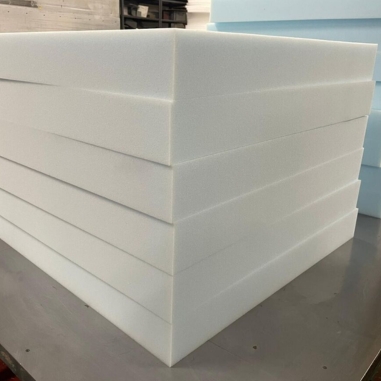

FINISHED PRODUCTS
|

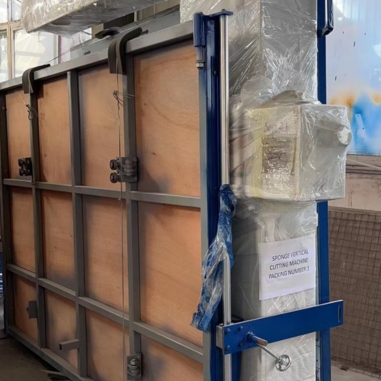

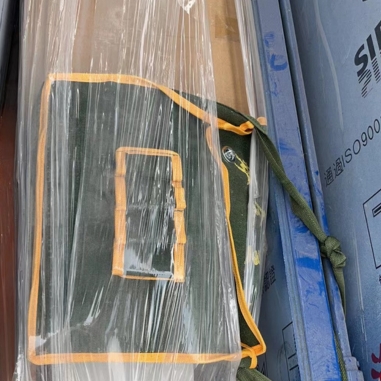

PACKAGING
