Views: 4126 Author: Elsa Publish Time: 2022-09-26 Origin: Site
What are the differences between the multifunctional flanging machine?

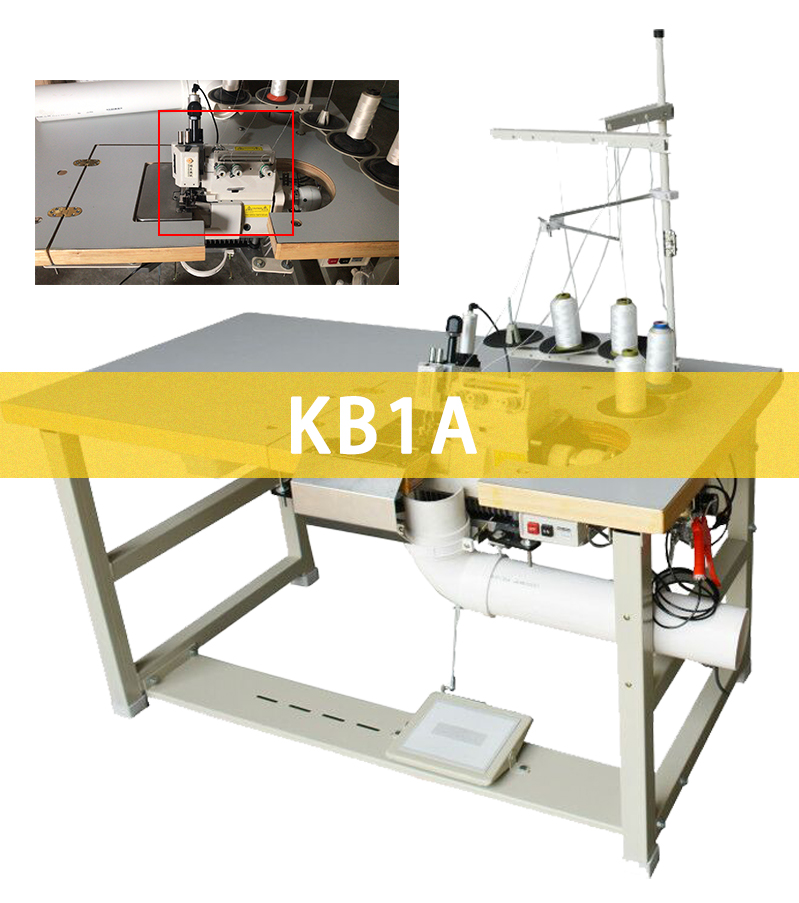

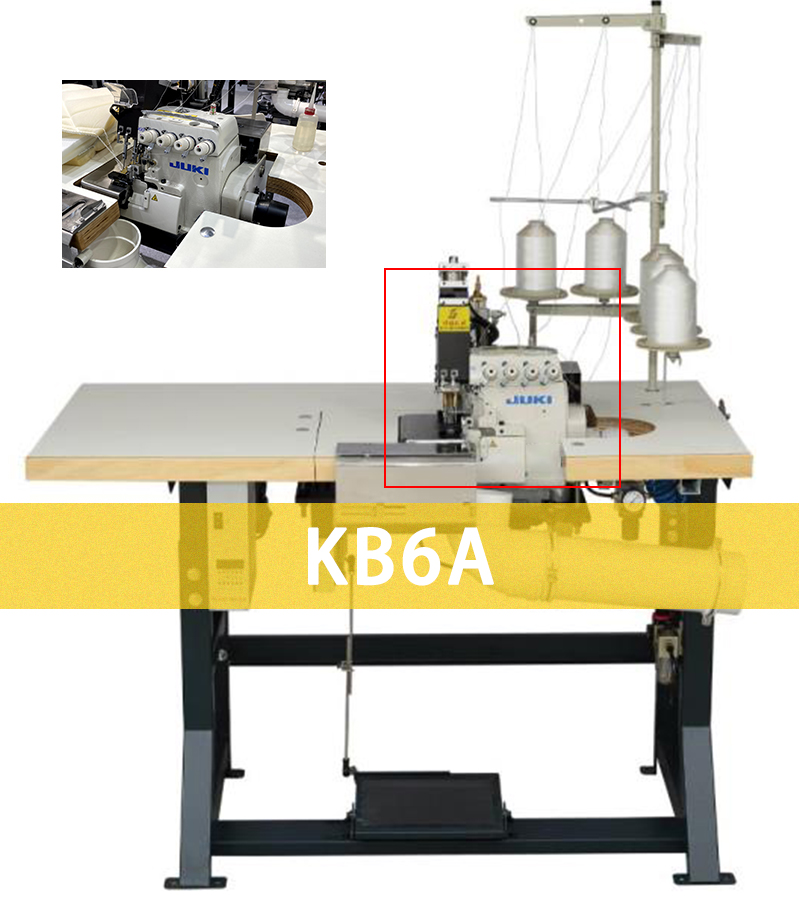

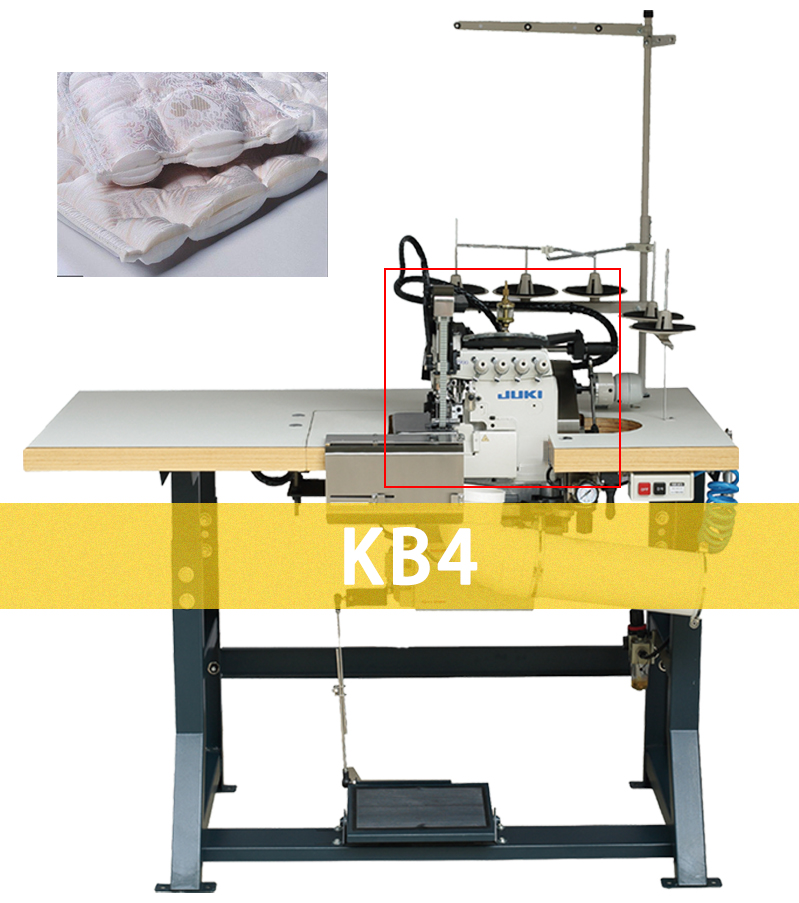

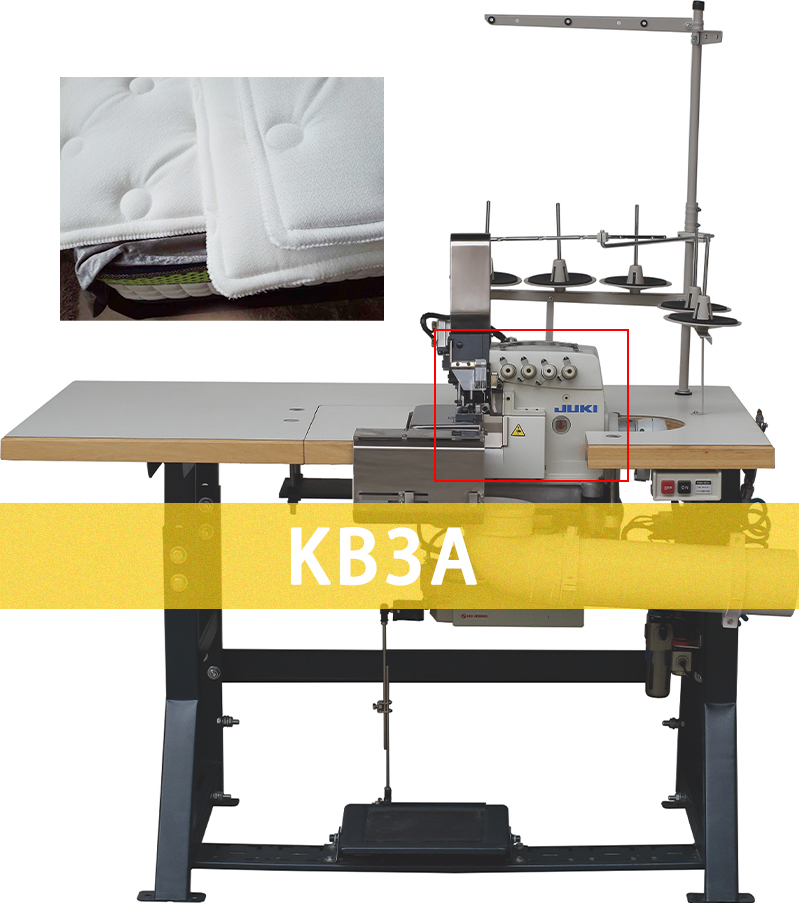

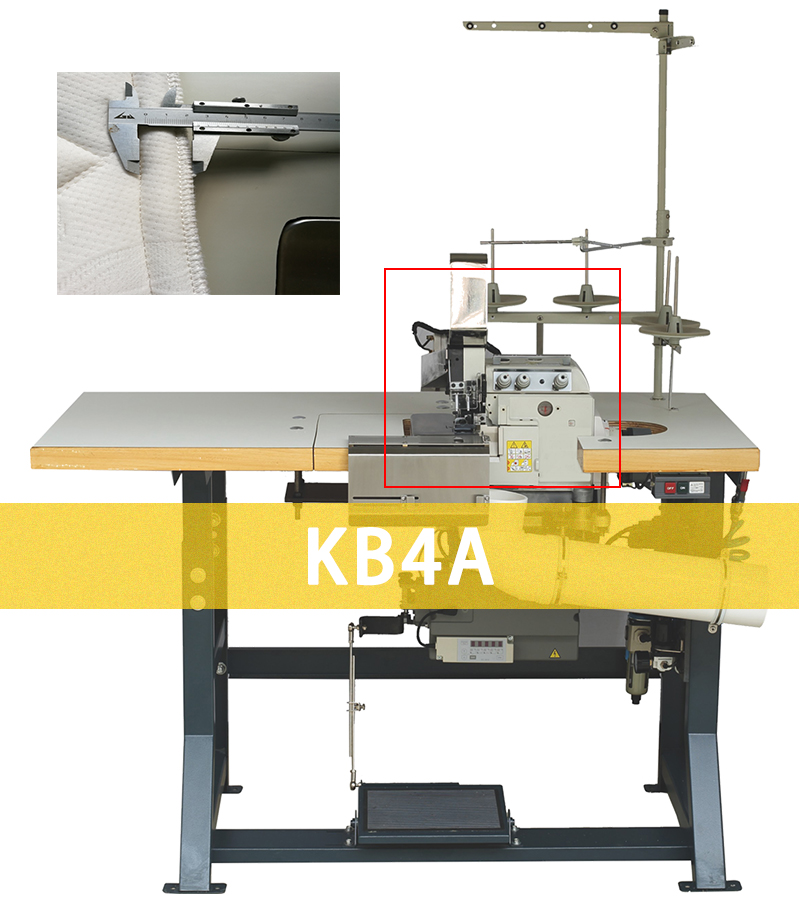

Our company has some models of multifunctional flanging machines.KB1A,KB3A,KB4,KB4A,KB6A.
They differ from each other in the max sewing thickness, the type of sewing head, press foot life, and so on. I make a table that can offer you to see their differences more clearly. Please check more details in the following chart.
| Model | KB1A | KB3A | KB4 | KB4A | KB6A |
| Max sewing thickness | 10-60mm | 10-70mm | 10-70mm | 10-80mm | 10-100mm |
| Type of sewing head | Domestic machine head reform | JUKI 6800-6816S | JUKI 6900-6916 | PEGASUS | JUKI 6900-6916G |
| Press foot lift | 12mm | 15MM | 15mm | 15mm | 35mm |
| Number of sewing threads | 4 threads | 5 threads | 5 threads | 4 threads | 5 threads |
| Sewing stitch | 1-5mm | 1-5mm | 1-5mm | 1-5mm | 1-5mm |
| Motor power | 600W | 550W | 550W | 550W | 750W |
| Faling width | 25mm | 25mm/30mm | 25mm | 15/25/30mm | 25mm |
| Sewing bar type | Double bar | ||||
| Air pressure | 0.4-0.8Mpa | ||||
| Max sewing speed | 3000rpm | 4500rpm | |||
| Advantages and disavantages | High cost performance, suitable for lower cost mattresses. | Feeding up and down synchronously, sewing any material does not need to debug the machine. | Need to change the belt 4-6 months | Pegasus machine head,no need to change the belt. | can easily process on the extra thick mattress |
