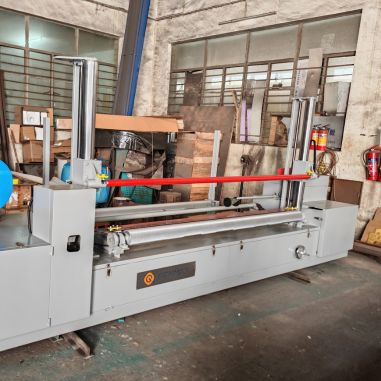

OVERVIEW
The XQ foam peeling machine delivers precise continuous foam processing with adjustable cutting thickness control. This specialized foam cutting machine converts cylindrical sponge blocks into infinitely long sheets for mattress, carpet, and furniture applications.
Automatic Winding System: Efficiently rolls cut foam for storage or transport
PLC Control System: Precise digital control of cutting thickness
Adjustable Cutting Thickness: Process foam from 1-30mm thick
Customizable Cutting Size: Adaptable to various production requirements
Low Maintenance Design: Modern control technology simplifies operation
Control Panel Interface: User-friendly operation management
Machine Combination: The XQ can be combined with an RFseries machine and ZK machine to form an automatic production line.
|
PRODUCT FEATURES

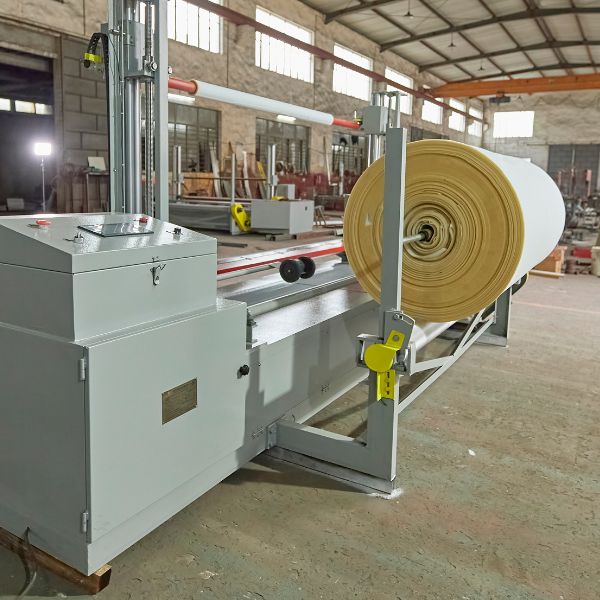

Endless PU Film Production

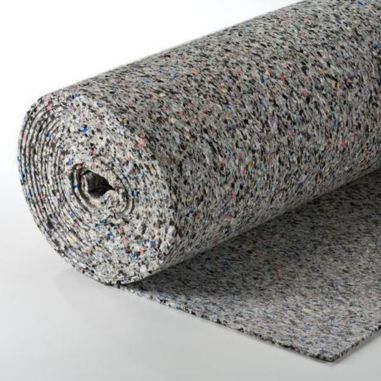

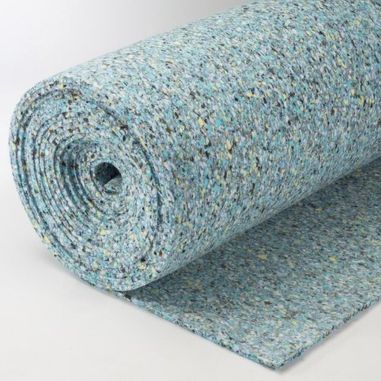

Simple system turns round foam blocks into continuous sheets, automatically rolling the material for use in mattresses, carpets, and furniture.
Precision Thickness Control
Advanced PLC system adjusts cutting thickness from 1-30mm, keeping thickness consistent throughout the entire roll.
User-Friendly Operation
Simple control panel makes the machine easy to operate with minimal maintenance, reducing downtime and training.
|
VIDEO
|
FAQ
Q: What cutting thickness range can this machine handle?
A: Thanks to its upgraded blade and continuous electronic height adjustment, the machine can cut foam sheets with thicknesses ranging from 1mm to 30mm.
Q: How is the cutting thickness controlled?
A: The cutting thickness is controlled by a computer frequency conversion speed regulation digital control system with PLC (Programmable Logic Controller). This allows for precise adjustment of thickness.
Q: Does the machine automatically roll the cut foam?

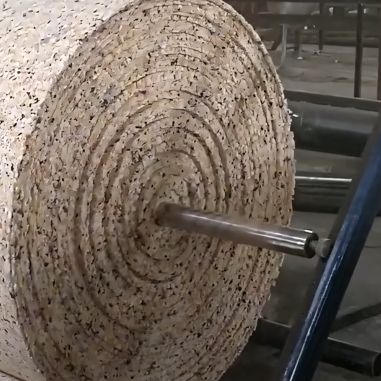

A: Yes, the XQ Foam Peeling Machine features automatic winding capability, rolling the cut foam sheets for easier handling and further processing.
Q: Can the cutting size be customized?
A: Yes, the cutting size can be customized according to customer requirements and specifications.
Q: What type of foam can this machine process?
A: The machine is mainly designed for processing regenerated cylindrical sponge blocks, though it may handle other foam types as well.
Q: How easy is the machine to operate?
A: The machine features state-of-the-art control technology with a control panel, making it easy to operate with low maintenance requirements.
|
SPECIFICATIONS
| Model | XQ-2150 | XQ-150 | XQ-200 |
| Foam Type | Foam | Rebond Foam | Rebond Foam |
| Max. Cutting Foam Size | φ2000 × W2150 mm | φ2000 × W1900 mm | φ2000 × W2200 mm |
| Cutting Thickness | 1–30 mm | 1–30 mm | 1–30 mm |
| Cutting Density | up to 40 kg/m³ | up to 100 kg/m³ | up to 100 kg/m³ |
| Cutting Speed(dependent on foam density) | max. 90 m/min | max. 30 m/min | max. 30 m/min |
| Cutting Accuracy | ±0.1 mm | ±0.1 mm | ±0.1 mm |
| Thickness Control | PLC | PLC | PLC |
| Blade Frame Lead Screw | Ball screw | Ball screw | Ball screw |
| Automatic Collection Winder | Y | Y | Y |
| Winder Speed Control | Y | Y | Y |
| Dust Collection Device | Y | Y | Y |
| Blade Length | 8870 mm | 8060 mm | 8470 mm |
| Voltage (customizable) | AC 3-phase 380 V, 50 Hz | AC 3-phase 380 V, 50 Hz | AC 3-phase 380 V, 50 Hz |
| Power | 4.67 kW | 6.8 kW | 12.19 kW |
| Net Weight | 1470 kg | 1530 kg | 1560 kg |
| Machine Dimensions | L4600 × W1700 × H1850 mm | L4000 × W1500 × H1850 mm | L4150 × W1500 × H1850 mm |
