MACHINE OVERVIEW
The High Speed Automatic Fabric Cutting Machine is a computerized panel cutter specially designed for mattress panel and border strip production. The machine performs crosscut, slitting, and edge trimming operations on quilted fabric with high precision and efficiency.
Featuring advanced conveyor belt mechanism, the machine integrates seamlessly with quilting machines and rolling devices for continuous production line operations, while maintaining capability for standalone use. The intelligent control system with large touch screen interface and PLC technology provides easy operation and parameter setting.
The machine utilizes encoder data transmission systems supporting any length cutting and multiple cutting specifications, combined with infrared control for safe operation and high cutting precision. Multi-function pneumatic systems handle material pressing, pulling, and blade sharpening automatically, ensuring consistent cutting quality and operational efficiency for mattress fabric processing applications.
Large Touch Screen Interface: Easy-to-control operation with parameter setting and PLC control system
Infrared Control System: Safe operation with high cutting precision and length setting
Air Sharpening Device: Automatic blade maintenance for consistent cutting quality
Hidden Slitting Blades: Safer and more convenient operation with protected blade design
Encoder and Sensor Double Detecting: Different size settings with precise length measurement
Conveyor Belt Mechanism: Convenient for assembly line operations and material handling
Electric Length and Width Controls: Convenient human-oriented operation for crosscut dimensions
|
PRODUCT FEATURES

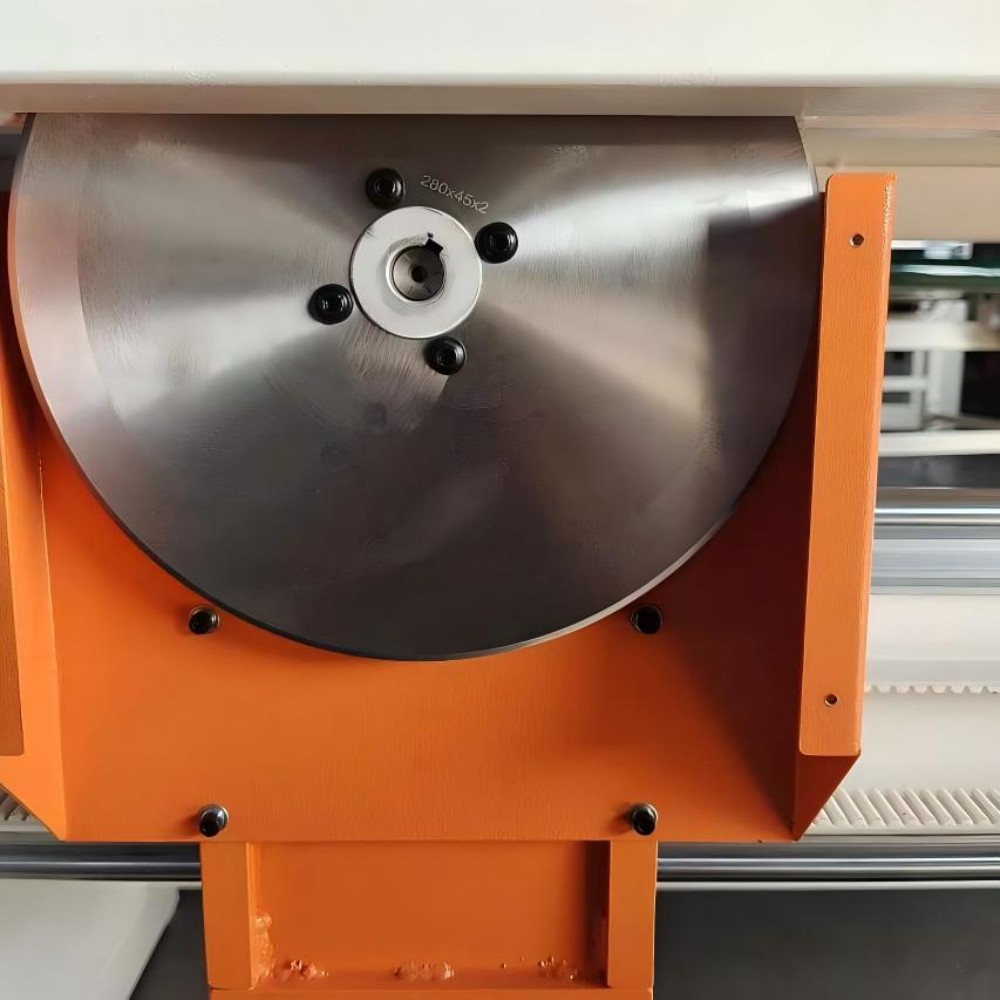

CROSS CUT BLADE

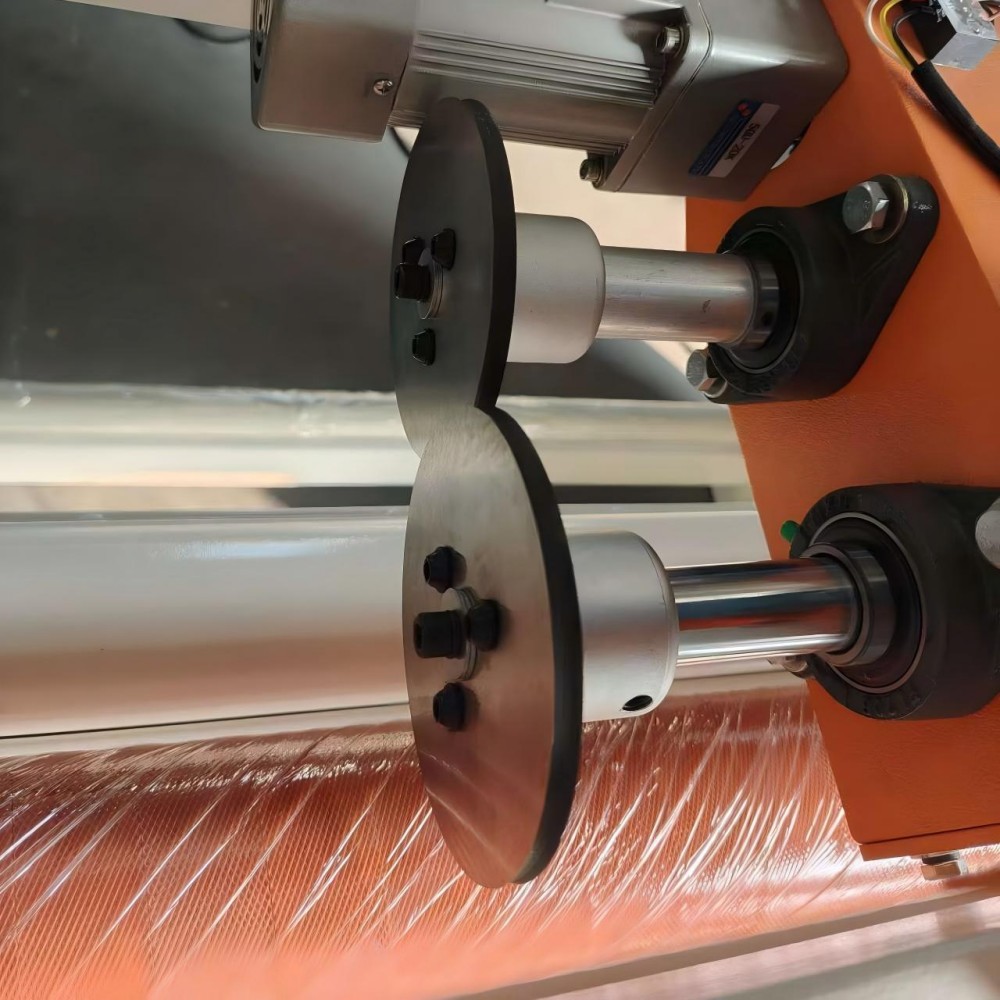

TRIMMING BLADE

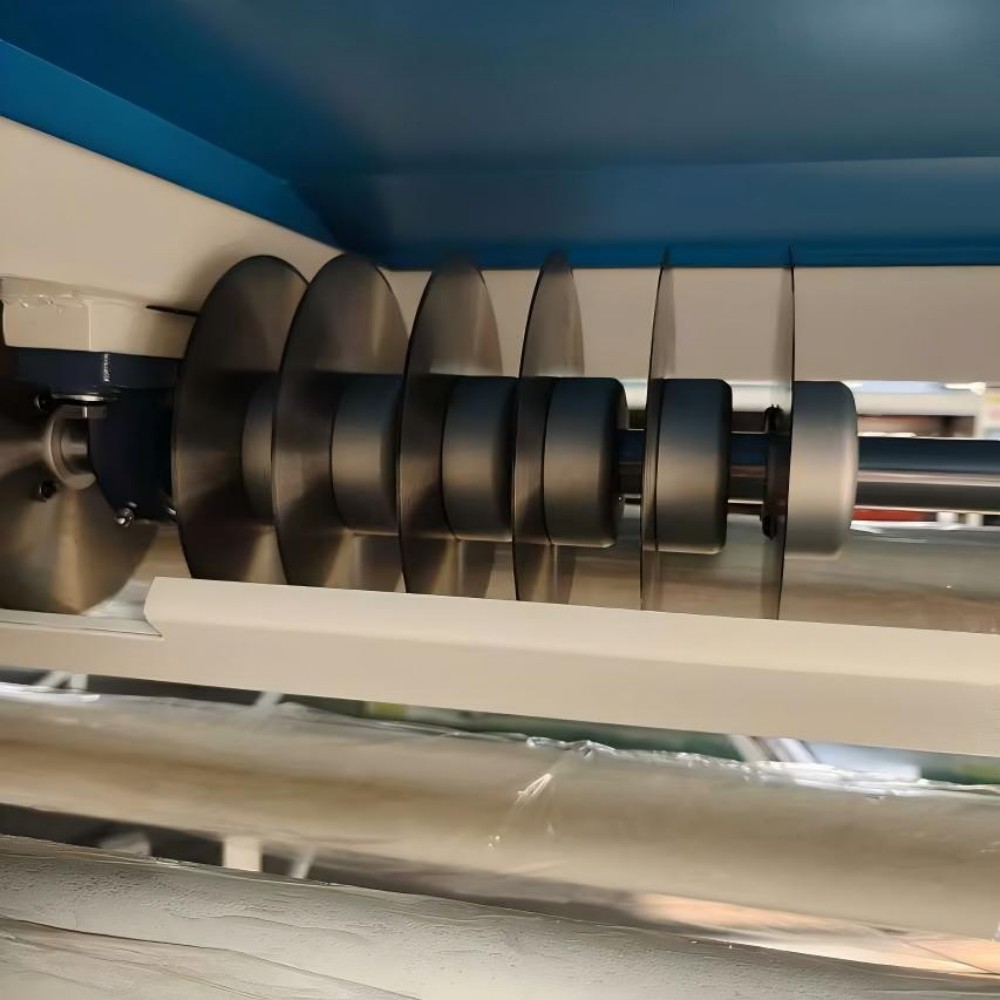

SLITTING BLADE
|
VIDEO
|
FAQ
Q: What type of control system does the machine use?
A: The machine features a comprehensive PLC control system.
Q: What cutting dimensions can be adjusted?
A: Cutting dimensions are electronically adjustable.
Q: What cutting operations can this machine perform?
A: The machine performs four main cutting operations:
Crosscut operations - Cutting fabric panels to specified lengths
Slitting functions - Cutting fabric widths and border strips
Edge trimming - Finishing fabric edges with precision
Q: How accurate is the cutting precision?
A: The machine provides exceptional cutting precision through:
Encoder and sensor double detecting system for accurate length measurement
Infrared control for high cutting precision and automatic length setting
Electric fixed-length adjustment for precise cutting sizes
Consistent output across all production runs
|
SPECIFICATIONS
| Cutting width | ≤2400mm | Output fabric | 10m/min |
| Cutting Length | ＞3cm maximum length(infinite length) |
| Thickness | ≤60mm |
| Weight | 1200KG | Overall | 3200*2800*2100mm |
| Power | 2KW
| Voltage | 380V,3P,50HZ |
