MX7 Full Automatic Multi Needle Chain Stitch Quilting Machine (With Slitters)

|

 OVERVIEW

The MX7 delivers exceptional chain stitch quilting with innovative fabric loading design for high-quality mattresses, bedding, household ornaments, and carpet cushions. This computerized system combines high speed operation with low vibration and noise for premium quilting precision.

• Superior Production Speed: High running speed with stable performance

• Precise Needle Arrangement: 0.5-inch needle space for versatile pattern combinations

• Needle Bar: Position 1st and 3rd rows independently

• Thread Brake Detector: Automatic stoppage for yarn breakage

• High-Quality Sealed Bearings: Premium NP306 components ensure durability

• Adjustable Presser Foot Lifting Mechanism: Accommodates materials up to 80mm

• Emergency Safety Devices: Comprehensive operator protection

• CAD Pattern Drawing System: 100+ pre-installed design patterns

• Adjustable Stitch Length: Precision control for various materials

• Press Plate Integration: Connected to needle bar via cam-free double-swinging device

• Automatic Needle-Lifting: Enhances operational efficiency

• Easy Loading Material: Streamlines production workflow

• Hopper Balance System: Maintains stability during high-speed operation

• Auto Adjustable Feed Rollers: Adapts to different fabric thicknesses

• Pattern-Combining Capability: Creates complex designs

• Reliable Performance: Firm structure without lubrication requirements

The MX7 excels in creating high-quality mattresses, comforters, handbags, sleeping bags, and decorative household items. Its combination of high quilting precision and production speed makes it ideal for manufacturing operations requiring consistent quality across diverse materials.

The integrated slitting devices enable accurate and effective edge taping, streamlining mattress border finishing. With its needle bar space optimization and comprehensive quilting software control system, the MX7 delivers exceptional flexibility for varied production requirements.

This durable, low-noise system combines high-performance computerized control with practical features like easy material loading to maximize operational efficiency while maintaining superior quilting precision.

|

 PRODUCT FEATURES

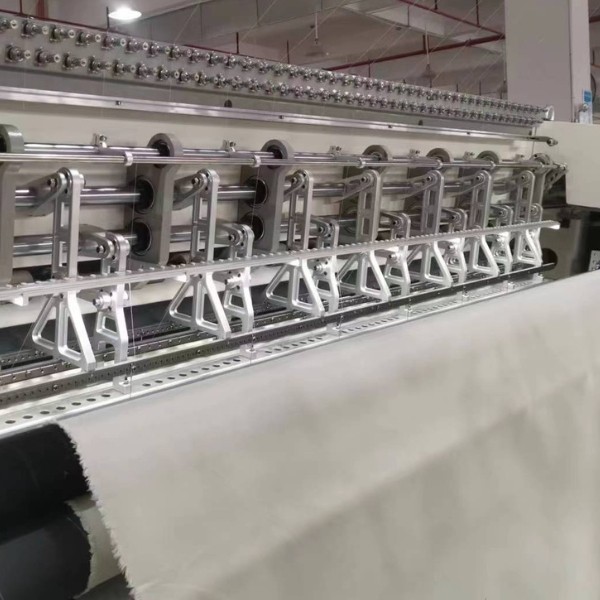

High-Speed Production

Exceptional 1400 RPM sewing speed delivers superior productivity for commercial mattress manufacturing, significantly increasing daily output compared to standard quilters.

Auto Thread Break Detection

Rope break sensors allow the machine to stop automatically in case of upside down or yam breakage.

Versatile Pattern

Full jump & tack system creates both 180° and 360° designs with precise stitch formation, offering unlimited pattern possibilities for distinctive mattress styling.

|

 VIDEO

|

 FAQ

Q: What is the needle spacing on the MX7?

A: The needle distance is 0.5 inch (12.7mm), allowing production of quilting lines with 0.5 inch spacing and enabling various pattern combinations.

Q: What is the maximum quilting thickness this machine can handle?

A: The MX7 can quilt materials up to 80mm thick, making it suitable for thick mattresses and padding.

Q: What are the pattern capabilities of the MX7?

A: The machine offers full jump & tack capability (180° & 360° designs), multiple interval and independent patterns, with over 100 pre-installed designs.

Q: What is special about the needle bar arrangement?

A: The needle positions of the 1st and 3rd rows can be arranged arbitrarily and are not affected by the position of the needle bar supporter, offering greater flexibility in pattern creation.

Q: Does the machine have thread break detection?

A: Yes, the MX7 features auto thread break detection. Rope break sensors allow the machine to stop automatically in case of upside down or yarn breakage.

Q: How are quilting patterns designed on the MX7?

A: The machine uses CAD drawing methods to ensure pattern precision and facilitate operation.

Q: What are the operational advantages of the MX7?

A: The MX7 offers high running speed, low vibration, easy operation, high quilting precision, and fast production speed.

Q: Can the MX7 produce both mattress quilting and edge taping materials?

A: Yes, users can use one MX7 quilting machine to produce both quilted panels and edge taping materials, thanks to its slitting capabilities.

|

 SPECIFICATIONS
