OVERVIEW

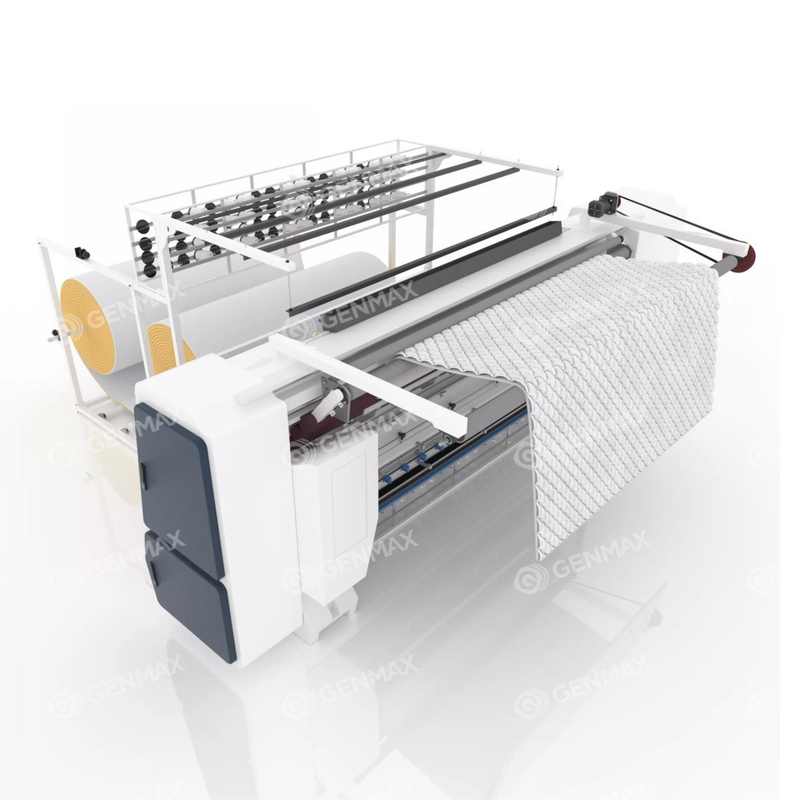

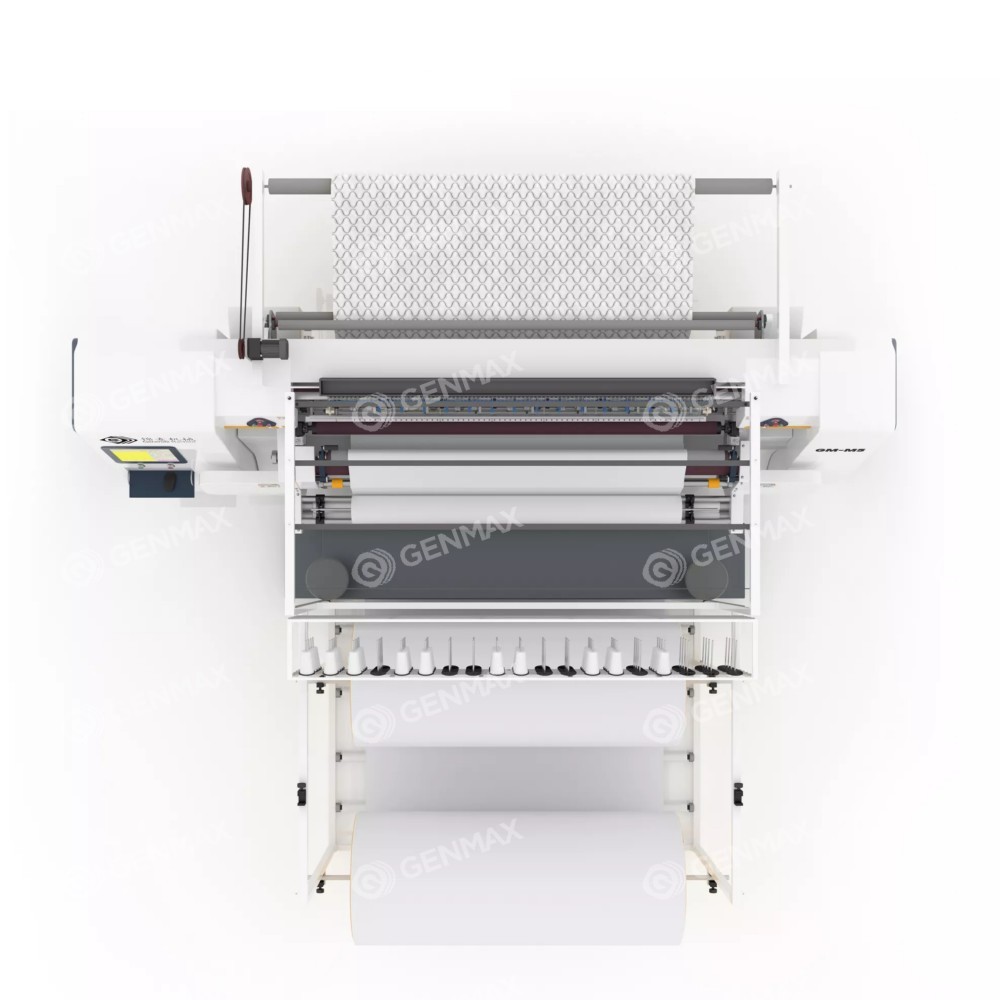

The M5 delivers exceptional mattress chain stitch quilting with innovative computerized control and superior production speed. This advanced multi-needle system combines precision engineering with comprehensive quilting patterns for manufacturers of high-quality mattresses, household ornaments, and textile products.
Innovative Automatic Oil-Supply System: Industry-first technology extends device lifespan and raises productivity
High Running Speed: Up to 1200 RPM with computerized speed control for enhanced production throughput
Extensive Pattern-Combining Capabilities: Both serial and Tack & Jump patterns (360° and 180°) available
Comprehensive Fault Detection Function: Monitors upper thread break and bottom thread break conditions
Automatic Stop Motion Control: Responds to thread breakage and completed preset lengths, saving labor
Automatic Needle-Lifting Frame: Servo-controlled for precise movement and consistent results
High Quality Sealed Bearings: Premium components ensure durability in production environments
Adjustable Presser Foot Lifting: Adaptable to various material thicknesses for diverse products
Clean Operation Design: Double rocker arms without cams protect fabric from dirt contamination
Delta VFD Main Shaft Control: Precise Z-axis movement management for accurate stitching
Panasonic Servo Technology: Controls saddle (X-axis) and roller (Y-axis) with exceptional precision
Windows-Based Computerized Control: Intuitive interface with CAD drawing capabilities simplifies pattern creation
|
PRODUCT FEATURES

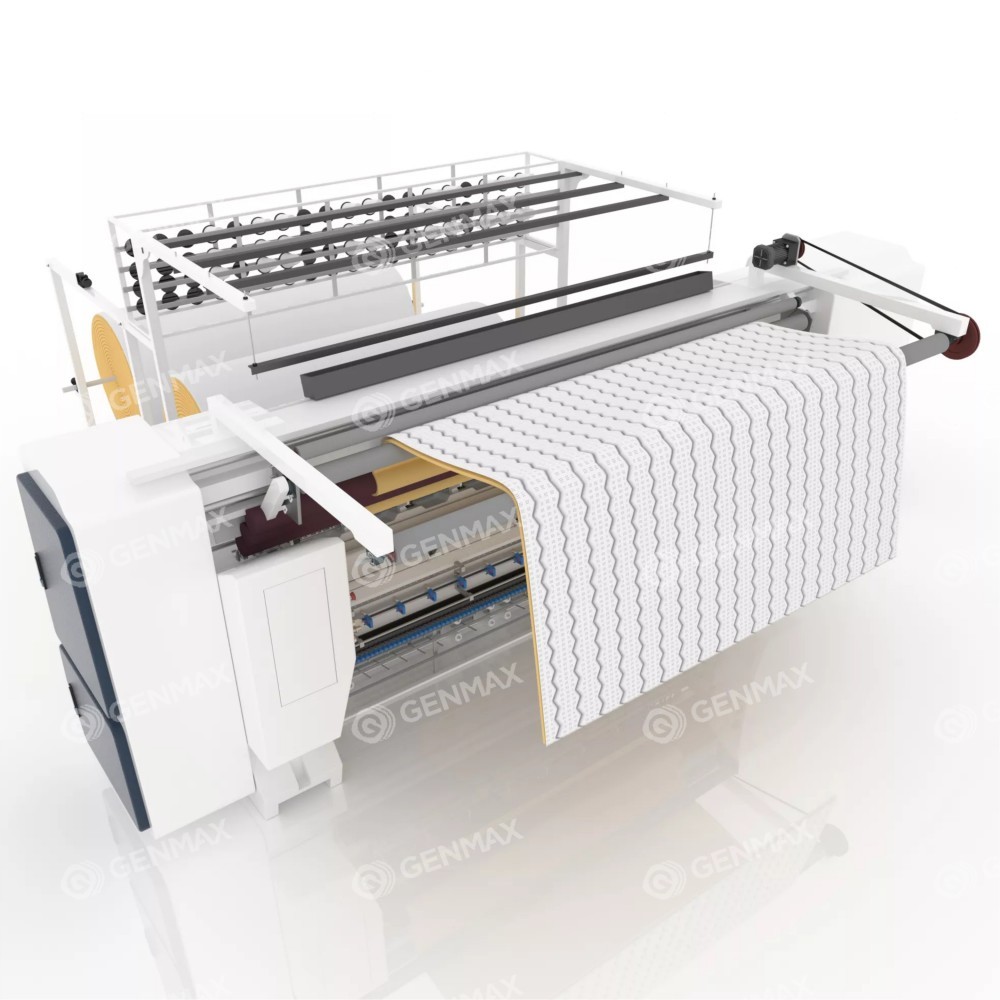

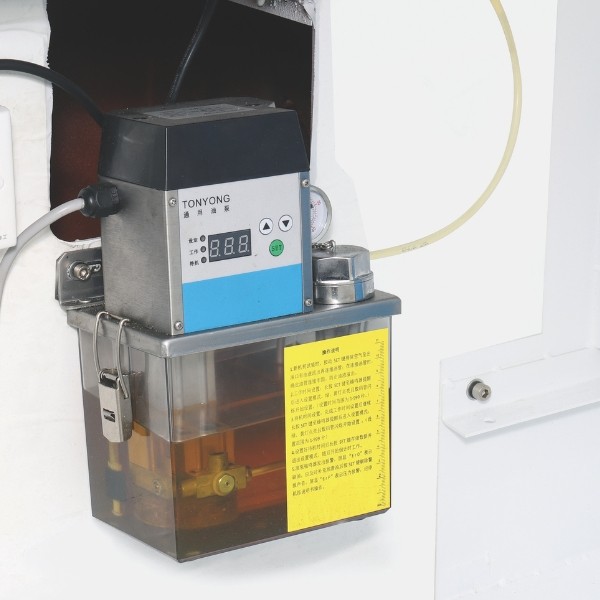

Automated Lubrication
Industry-pioneering automatic oil-supply system enhances productivity while significantly extending component life, reducing maintenance requirements and production downtime.

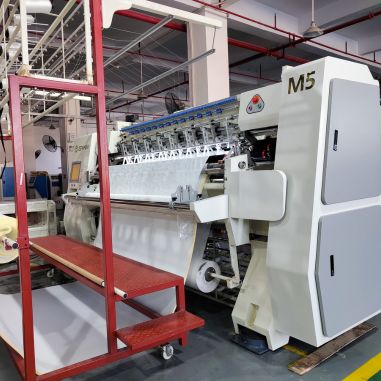

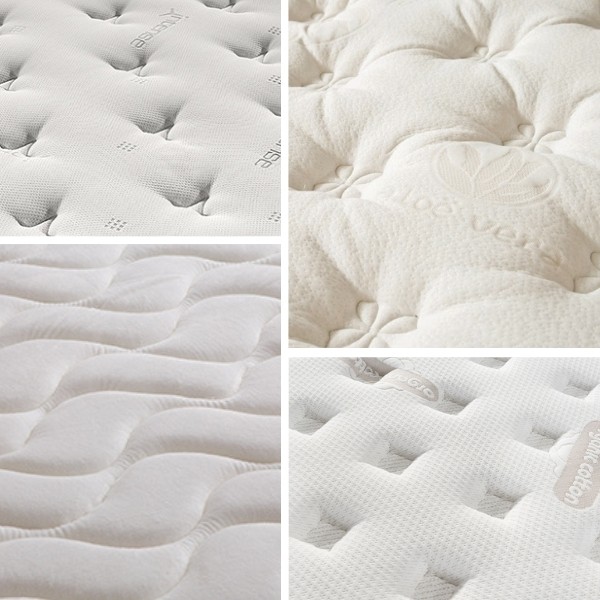

Versatile Pattern
Comprehensive pattern options include both serial patterns and Tack & Jump functions (360° and 180°), with Windows-based CAD interface for easy pattern creation and modification.
Clean Operation

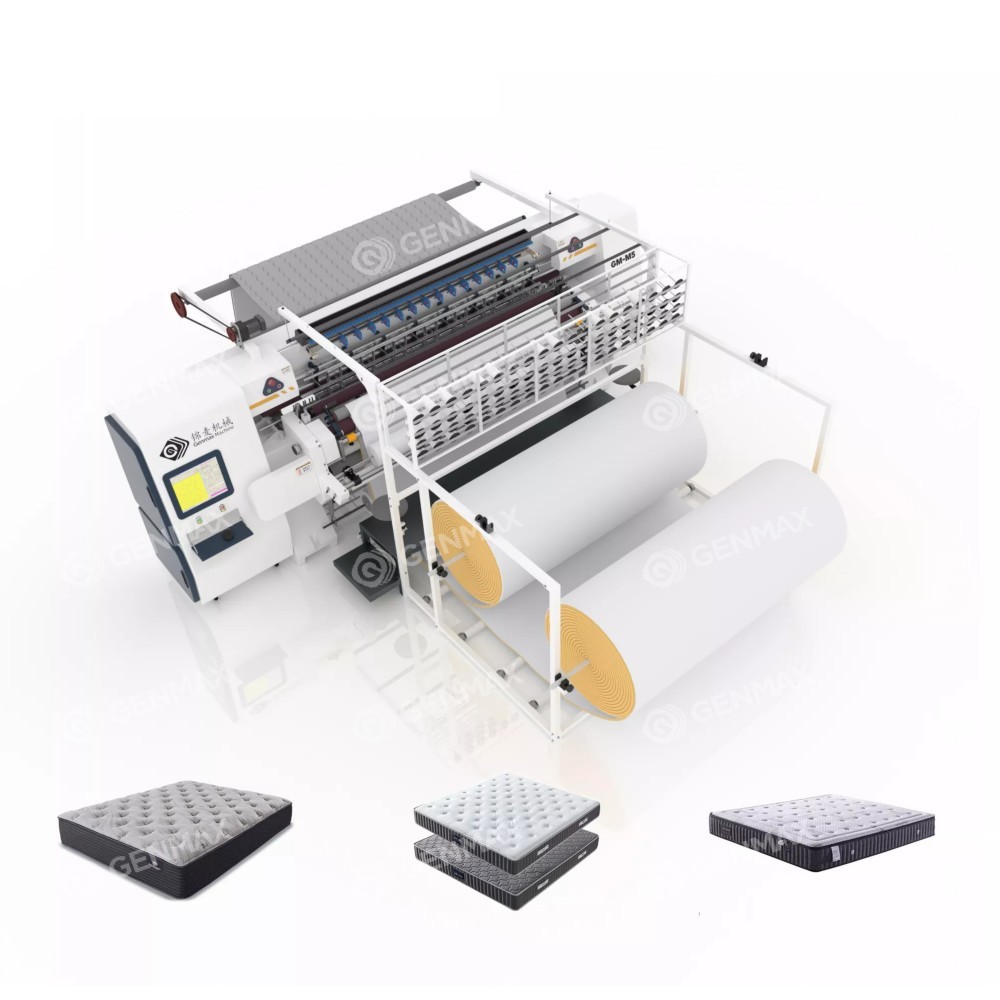

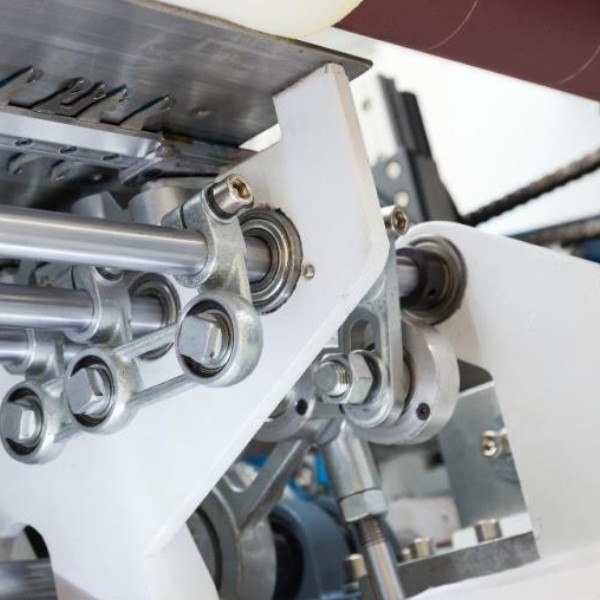

Innovative cam-free double rocker arm system for needle bar and plate operation prevents fabric contamination, maintaining pristine material quality throughout production.
|
VIDEO
|
FAQ
Q: What is the maximum operating speed of the M5?
A: The M5's speed can be controlled by computer and can reach up to 1200 RPM.
Q: What stitch length options are available on the M5?
A: The distance between needles (stitch length) can be set in the range of 3-8mm.
Q: What pattern capabilities does the M5 offer?
A: The M5 offers both serial patterns and Tack & Jump patterns (360° and 180°), with CAD-based pattern editing for greater accuracy.
Q: How does the M5 maintain clean fabric during quilting?
A: The fabric is kept away from dirt because the machine uses double rocker arms without cams for the needle bar and plate, eliminating oil contamination issues.
Q: What drive systems does the M5 use?
A: The main shaft (Z shaft) is driven by a Delta VFD (variable-frequency driver), while Panasonic servo drivers and motors control the saddle (X shaft) and roller (Y shaft).
Q: Is the M5 easy to operate?
A: Yes, the Windows-based control system, automatic features, and CAD drawing interface make the machine relatively easy to operate, with automatic stops when processes are complete.
|
SPECIFICATIONS
| Main Shaft Speed | 600-1200RPM | Output | 60-300m/h |
| Model of Needle | 24/180,23/160,22/140,21/130 |
| Space Between Needle Rows | (50.8,76.2,127)5",(76.2,76.2,152.4)6" |
| Quilting Width | 2450mm | Quilting Thickness | ≤80mm |
| Stitch Length | 3-8mm | Space Between Needles | 25.4mm |
| Dimension(L*W*H) | 5930*4880*2330mm | Weight | 4800KGS |
|

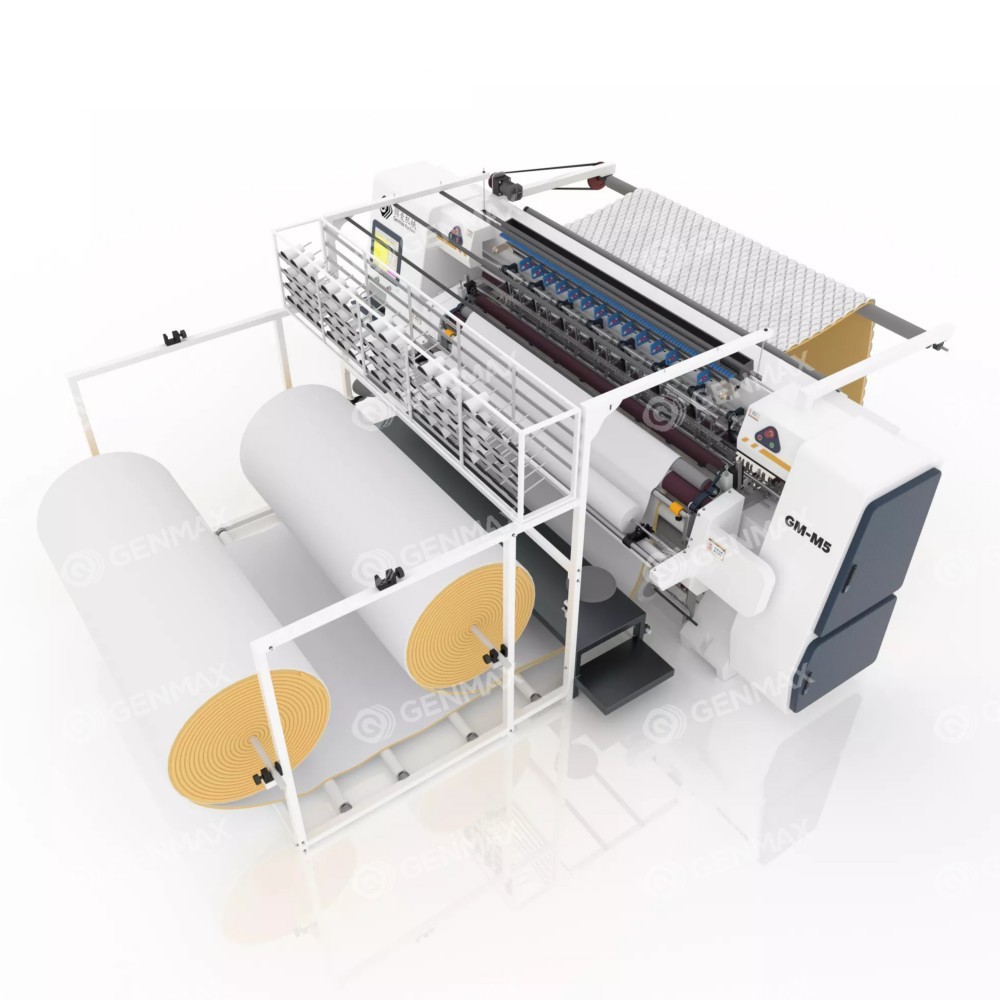

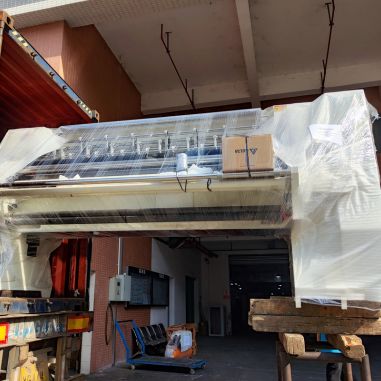

PACKAGING
