FAQ
Q: Why is the tape edge process important in mattress production?
A: The tape edge section is a very significant step in mattress production as it creates the finished edge that joins the top, bottom, and side panels of the mattress, affecting both the appearance and durability of the final product.

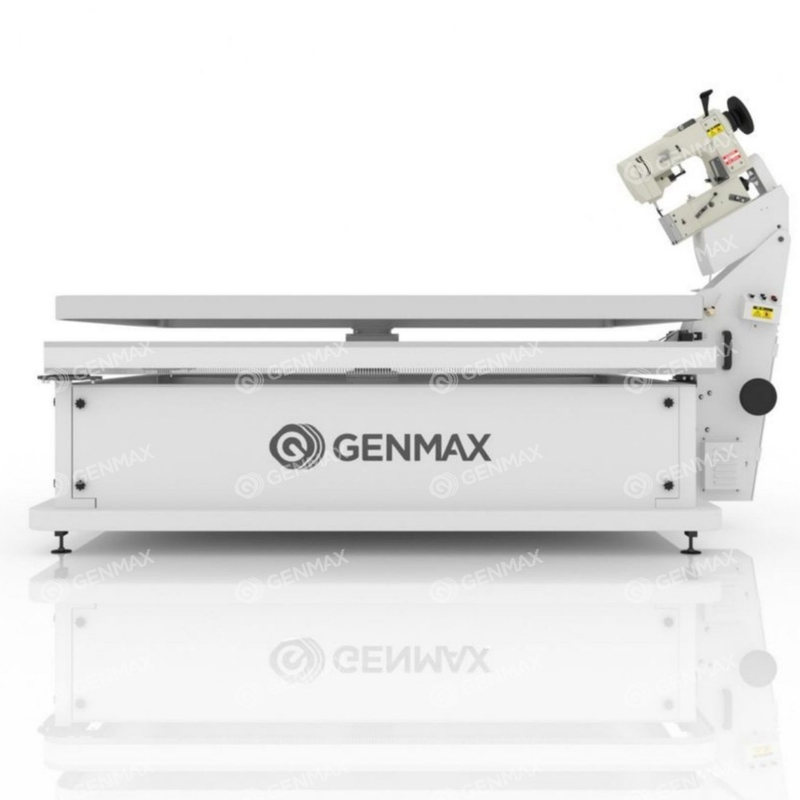

Q: What types of mattresses can the FB3 handle?
A: The FB3 is designed to sew mattresses of every size quickly and easily, maximizing quality with smooth edge tape appearance on the mattress.

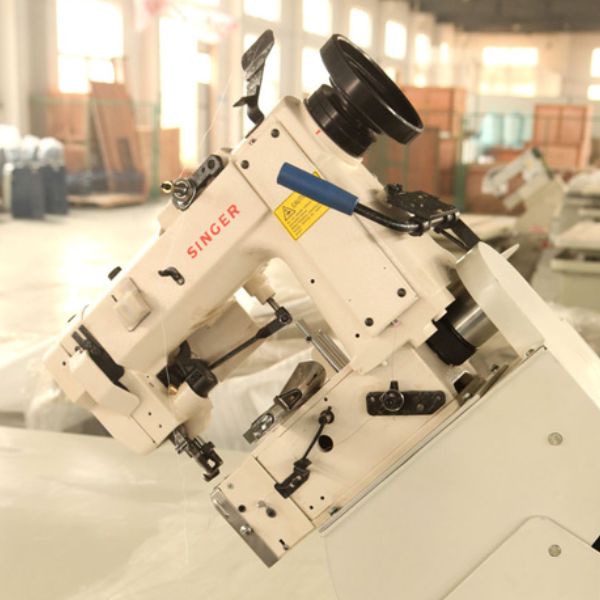

Q: What sewing head does the FB3 use?
A: The FB3 uses an advanced SINGER-300U chain stitch high-speed sewing head that is 100% originally imported, not a copy.
Q: What electrical components does the FB3 use?
A: The FB3 uses Taiwan electrical configuration (Shili Inverter) for reliable performance.
Q: How does the FB3 compare to fully automatic tape edge machines?

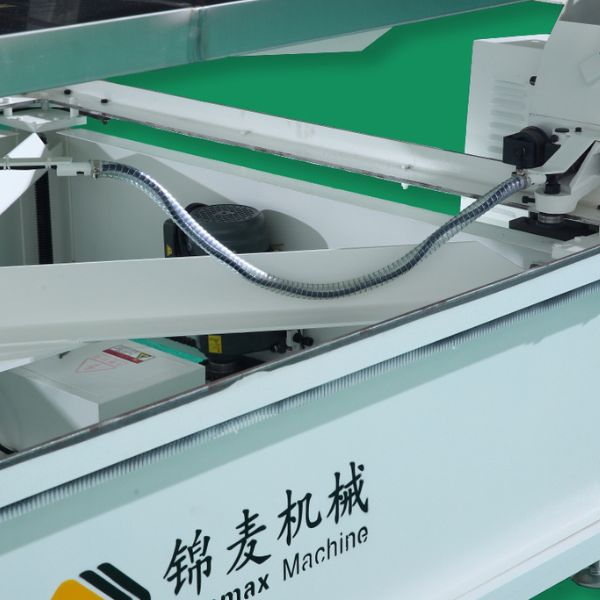

A: The FB3 is semi-automatic, requiring more operator involvement than fully automatic models like the FB5. However, it still offers significant improvements over manual tape edge machines with its electric lift table, automatic corner slowdown, and ergonomic design.
Q: What makes the FB3 different from lower-quality machines?
A: The FB3 distinguishes itself with its 100% originally imported SINGER sewing head, Taiwan electrical configuration, stainless steel table, stable structure, and quality construction that maintains performance over time.
|
SPECIFICATIONS
| Model | FB3 | Sewing Head Brand | SINGER 300U |
| Productivity | 10-20units/h | Thickness of Mattress | 500mm |
| Table Lifting Range | 350mm | The Way of Lifting | Central Motor Lift |
| Overall Dimension | 2380*1400*1650mm | Table Size | 1600x2000mm, 1800x2000mm |
| Total Power | 1.2Kw | Power Supply | 220V IP 50-60HZ |
| Layout | 3.05x2.8m | Total Weight | 680Kg |
|
PACKAGING
