NFD-120Z Mattress Pocket Spring Assembler

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
NFD-120Z mattress pocket spring assembly machine features imported PLC control with servo-guided glue spraying using Nordson PB7 system. Highly automated with stable performance, it assembles drum-type or cylindrical pocket springs in parallel or cellular patterns at 2.5-3 rows per minute.
  • NFD-120Z

Availability:

Product Description

|

 OVERVIEW

The NFD-120Z Pocket Spring Machine is an advanced, high-performance solution for efficient independent pocket spring mattress production.

  • Advanced Control System: Adopts imported PLC controlling system with servo-controlled glue-spraying for precise hot melt application

  • Premium Gluing Technology: Features renowned Nordson PB7 or Robatech hot melt glue system for superior adhesion quality

  • Versatile Spring Compatibility: Perfect for assembling zoned tape and assembling zoning mattress with either drum-type or cylindrical pocket springs

  • Dual Gluing Modes: Choose between continuous gluing mode or interrupted gluing mode, saving up to 40% in hot melt glue costs

  • High Speed Performance: Produces 2.5-3 rows per minute for efficient pocket spring production

  • Flexible Configuration: Options for adhesion of upper and lower non-woven fabric based on fabric material requirements

  • Movable Pocket Spring Buffer: Features internal movable plates to ensure equidistant spring placement

  • Electronic Control: Full electronic control system for precise operation

  • Integrated Cutting: Equipped with longitudinal and latitudinal cutting functions, eliminating the need for manual processes

Perfect for manufacturers seeking a top-quality solution for zoning mattress production with easy to adjust settings and minimal training requirements. The NFD-120Z delivers exceptional value with its optimized hot melt application system and sophisticated engineering for consistent, high-quality pocket spring production.

|

 PRODUCT FEATURES

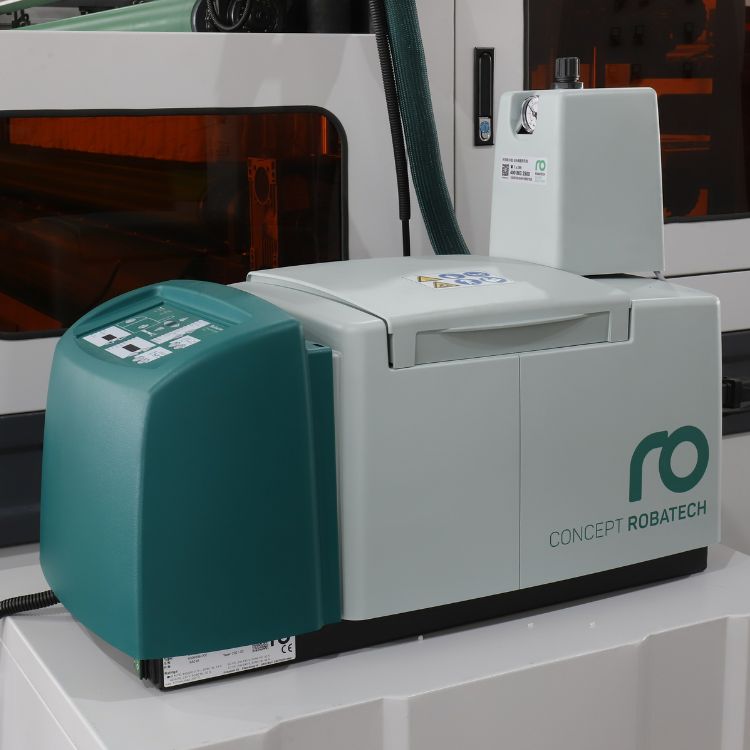

Precision Adhesive Application

Precision Adhesive Application

Imported Nordson PB7 glue-spraying system with servo-controlled application points delivers intermittent gluing capability, reducing adhesive consumption by over 40% while ensuring optimal bond strength.

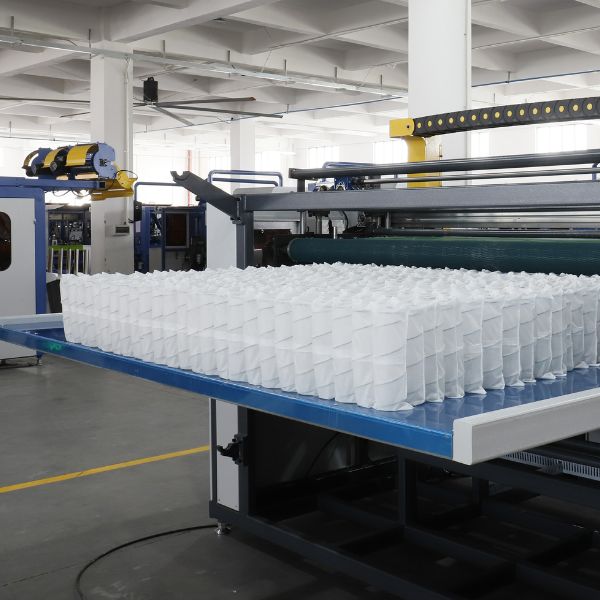

Versatile Assembly Configuration

Versatile Assembly Configuration

Advanced design accommodates both drum-type and cylindrical pocket springs, providing flexible assembly options in parallel or cellular formations with adjustable upper and lower non-woven adhesion according to product requirements.

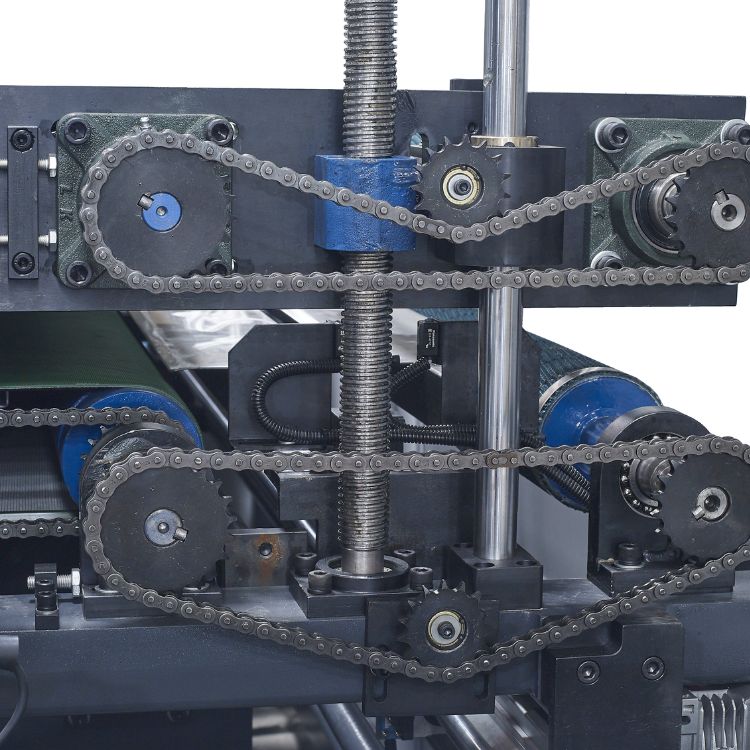

Integrated Cutting Technology

Integrated Cutting Technology

Comprehensive longitudinal and latitudinal cutting functionality with 2 cross cutters and 4 slit cutters eliminates manual guard procedures, producing 2.5-3 finished rows per minute while maintaining precise spacing through innovative movable buffer system.

|

 VIDEO

|

 FAQ

Q: What control system does the NFD-120Z use?

A: The machine adopts an imported PLC controlling system with servo control for the glue-spraying points, providing precise application and high automation.

Q: What glue system does the NFD-120Z use?

A: The machine incorporates the PB7 glue-spraying system from Nordson Corporation (USA) or alternatively a Meler system (made in Spain), both of which are renowned for reliability.

Q: What cutting capabilities does the NFD-120Z have?

A: The machine is equipped with:

2 cross cutters

4 slit cutters

Longitudinal and latitudinal cutting functions

Q: How does the NFD-120Z help reduce adhesive costs?

A: The intermittent glue spraying capability can save glue costs by over 40% compared to continuous application.

|

 SPECIFICATIONS

Model NO. NFD-120Z Production Capacity 3-4Min/Unit
Non-woven Fabric Width 300-2200mm Non-woven Fabric Density 65-90g/m2
Mattress Width 300-2150mm Inner Dia. of Fabric Roll Min 65mm
Air Pressure 0.6-0.7Mpa Outer Dia. of Fabric Roll Max 600mm
Input Fuse 20A Voltage 380v 50/60Hz

|

 PACKAGING

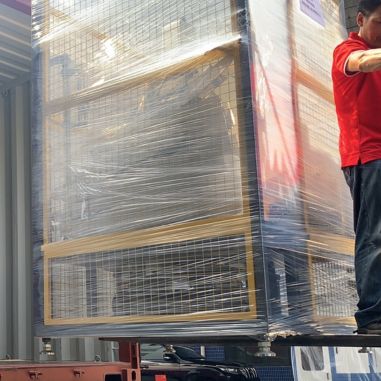

packaging1

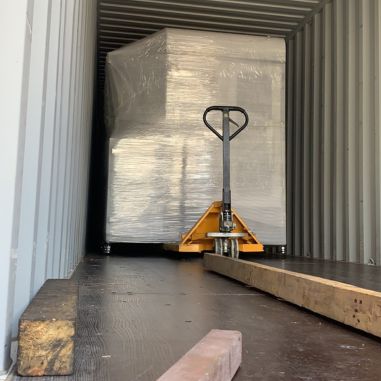

packaging2

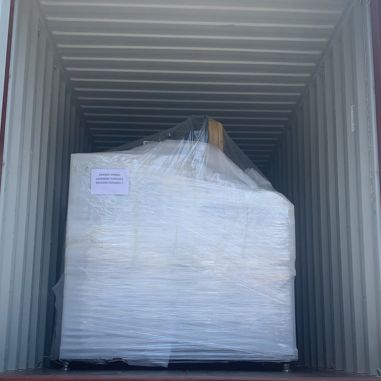

3
