YHJ-80 Automatic Bonnell Spring Coiler combines coiling, knotting, heat treatment, and output in one process. Features worm/gear decelerator, computer-controlled lubrication, frequency-regulated speed. Delivers 80 springs/min with stable performance and easy adjustment for mattress manufacturing.
  • YHJ-80

Availability:

Product Description

|

 OVERVIEW

The YHJ-80 Automatic Bonnell Spring Coiling Machine is a comprehensive and efficient solution for high-volume mattress spring production. This advanced system integrates four essential manufacturing processes—coiling, knotting, heat treatment, and output—into one streamlined operation. Designed with precision engineering and intelligent control systems, the YHJ-80 delivers exceptional spring quality and production efficiency, making it the ideal choice for mattress manufacturers seeking reliable, high-performance equipment.

  • High Production Capacity: Produces up to 80 pieces per minute, maximizing manufacturing output.

  • Integrated Processing: Combines coiling, knotting, heat treatment, and output functions in one continuous operation.

  • Precision Control: Features worm and gear decelerator with frequency transformer for accurate speed regulation.

  • Intelligent Lubrication: Computer-controlled lubricating system ensures optimal performance and reduced maintenance.

  • Superior Spring Quality: Utilizes excellent tooling to enhance spring frame form and knot smoothness.

|

 PRODUCT FEATURES

3

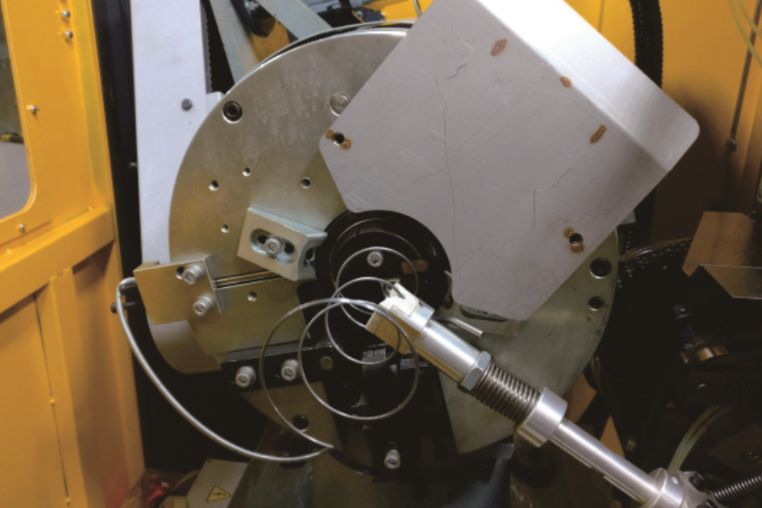

Computer-Controlled Lubrication

Sophisticated computerized lubrication system ensures precise oil delivery, extending component life and maintaining consistent operational reliability.

3

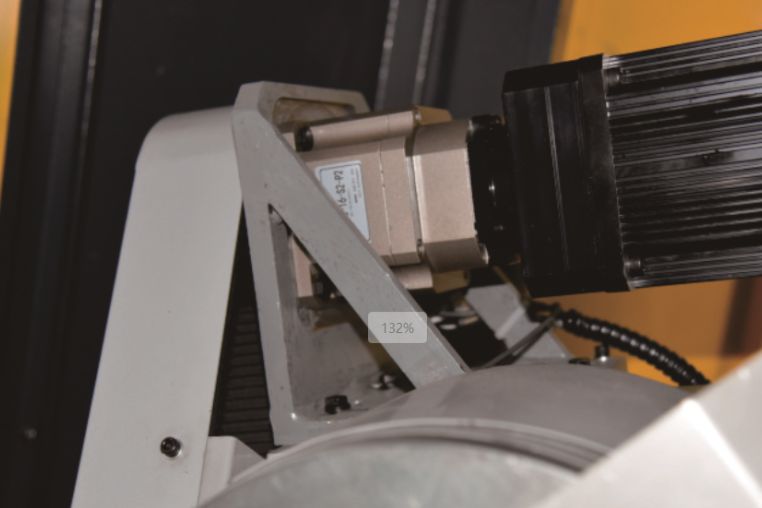

Knotting Technology

Servo-controlled high-tech top and bottom knotting systems create flawless spring connections, delivering superior spring frame formation and exceptional knot smoothness.

3

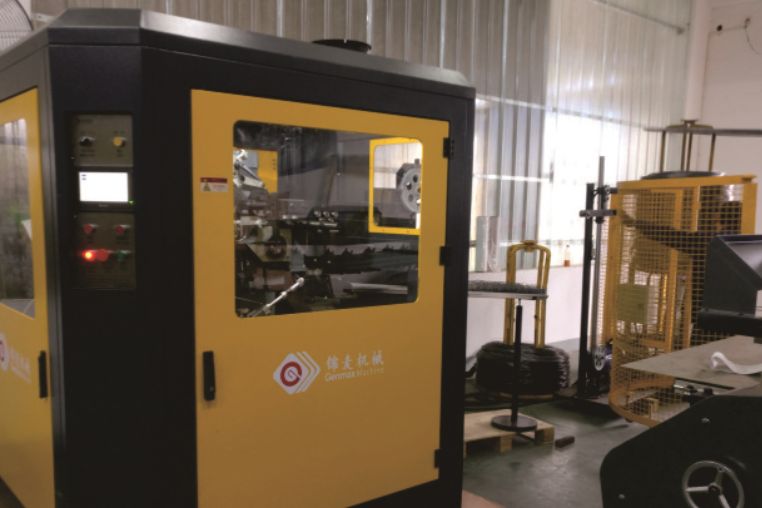

Safety Features

Protective cabin enclosure provides comprehensive operator safety while maintaining convenient access for maintenance and material handling.

|

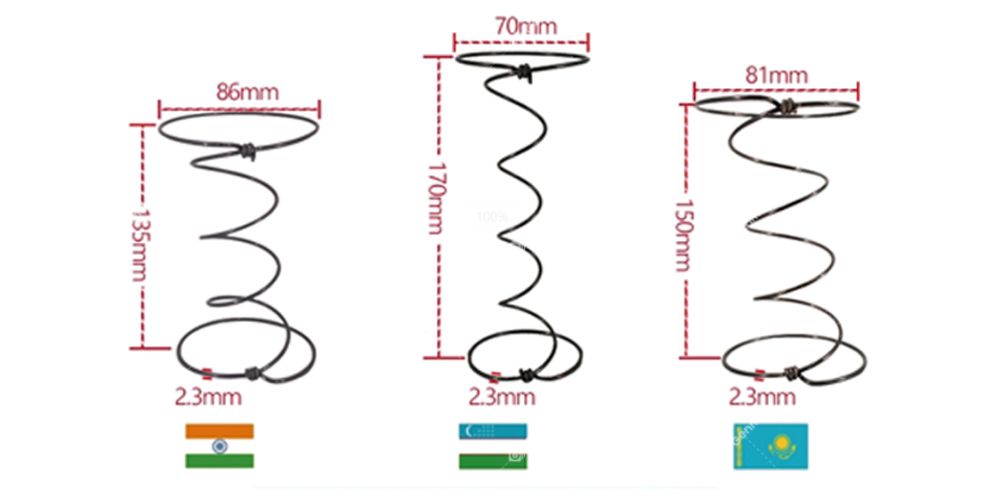

 DIFFERENT SIZE OF SPRING

|

 SPRING SIZE FOR DIFERENT COUNTRIES

|

 VIDEO

|

 FAQ

Q: What are the key performance characteristics of the YHJ-80?

A: The machine offers stable performance, high productivity, and features a nice structure for reliable operation.

Q: What improvements have been made to the spring form and knot quality?

A: The form and knot smoothness of the spring frame has been increased due to the excellent tools used on the machine.

Q: What is the production capacity of the YHJ-80?

A: The YHJ-80 can produce up to 80 pieces of Bonnell springs per minute.

Q: How is the speed of the machine regulated?

A: The speed is regulated by a frequency transformer that controls the worm and gear decelerator system.

Q: What type of transmission system does the machine use?

A: The machine uses a worm and gear decelerator system for power transmission.

Q: How is the lubrication system managed?

A: The YHJ-80 features an automatic lubrication system that is computer-controlled, ensuring proper lubrication of the knotting heads.

Q: What knotting systems are incorporated in the YHJ-80?

A: The machine includes both high-tech top knotting and bottom knotting systems.



|

 SPECIFICATIONS

Model NO. YHJ-80 Control Automatic
Type Torsion Spring Machine Capacity
80PCS/Min
Diameter of Wire 1.9-2.4mm Spring Ring 4-7roll
Diameter of Spring 62-95mm Height of Spring 80-190mm
Transport Package Wooden Case Specification Set
Voltage 380V/50Hz 220V/60Hz, 3-Phase Motor power 5.5Kw
Weight 2500KG Dimension (L x W x H) 1500 X 1500 X 1600mm

|
