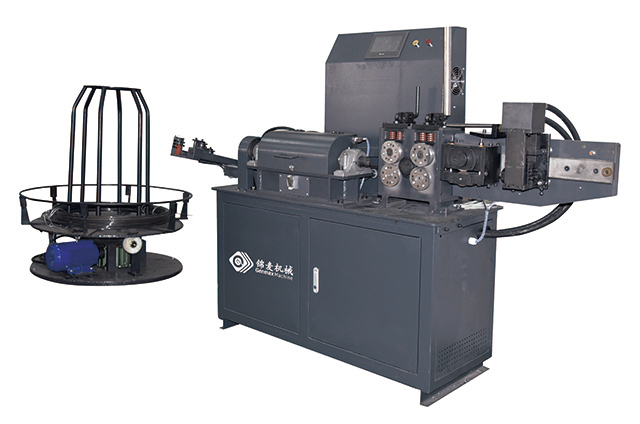

JZ3 Wire straighten and cutting machine
JZ3 Wire straighten and cutting machine JZ3 Wire straighten and cutting machine

loading

JZ3 Wire straighten and cutting machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
JZ3 CNC Wire Straightening and Cutting Machine processes 3-8mm steel wire at 30m/min with cutting lengths from 1000-8000mm. Features automatic safety protection that stops when wire defects are detected. Includes electric wire frame for improved alignment accuracy. Length adjustments can be made directly through the touchscreen interface. Ideal for high-speed industrial wire processing applications.

  • JZ3

Availability:
Inquiry

Product Description

|

 OVERVIEW

The JZ3 CNC Wire Straightening and Cutting Machine is an advanced, high-precision solution for efficient wire processing in industrial manufacturing applications.

  • CNC Precision Control: Advanced computer numerical control ensures exceptional straightening and cutting accuracy.

  • High Production Capacity: Impressive processing speed of up to 30 meters per minute for maximum productivity.

  • Versatile Length Range: Handles cutting lengths from 1000mm to 8000mm with precise dimensional control.

  • Comprehensive Wire Compatibility: Processes steel wire and various metal wires with diameters between 3-8mm.

  • Intelligent Safety System: Features automatic machine stoppage when wire irregularities are detected, ensuring operator safety and product quality.

|

 VIDEO

|

 SPECIFICATIONS

Model   JZ3 Productivity 30m /min
Cutting Length 1000mm-8000mm Main Motor 3×AC380V/4KW/50-60Hz
Overall Dimension 2100×800×1400(Nose part) Weight 400Kg
Hydraulic System 3×AC380V/4KW/50-62Hz/8-10Mpa/40#Hydraulic oil
