MX15/10x3-3
Availability: | |
---|---|
Product Description
|
OVERVIEW
Featuring dual ultrasonic sealing technology and intelligent control systems, the MX15/10x3-3 delivers exceptional production capacity, material optimization, and versatile spring configuration options, making it an essential equipment investment for manufacturers seeking cost-effective, high-volume pocket spring production.
Fully Computerized Control: Manages entire production process from material transfer through coiling, shaping, and pocket packing for consistent quality.
Dual Ultrasonic Sealing: Incorporates two ultrasonic seal machines to create precise seals on both sides and back of non-woven fabrics, ensuring superior pocket integrity.
Optimized Fabric Spacing: Engineered with ideal spacing between pocket springs for efficient cutting while minimizing fabric waste and maintaining dimensional accuracy.
Versatile Spring Compatibility: Accommodates both through-type and drum-type springs for versatile product applications.
Adjustable Height Configuration: Adapts to spring heat treatment devices of different heights with simple adjustment capabilities.
Comprehensive Fault Detection: Multiple fault detection systems effectively minimize production losses and maintain quality standards.
Enhanced Safety Features: Incorporates special protective devices for operator safety and equipment protection.
CNC Spring Head Technology: Fully CNC-controlled spring head allows adjustment of all spring parameters through the user interface display.
Customizable Configuration: Available with one, two, or three spring bag filling machines according to specific production requirements.
|
PRODUCT FEATURES

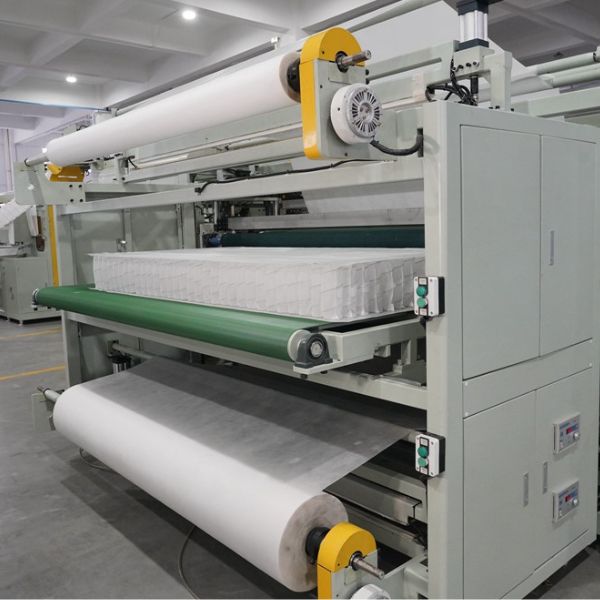

Sophisticated computerized system controls entire manufacturing sequence from wire feeding through pocket formation, eliminating manual transfers while maximizing production efficiency and consistency.

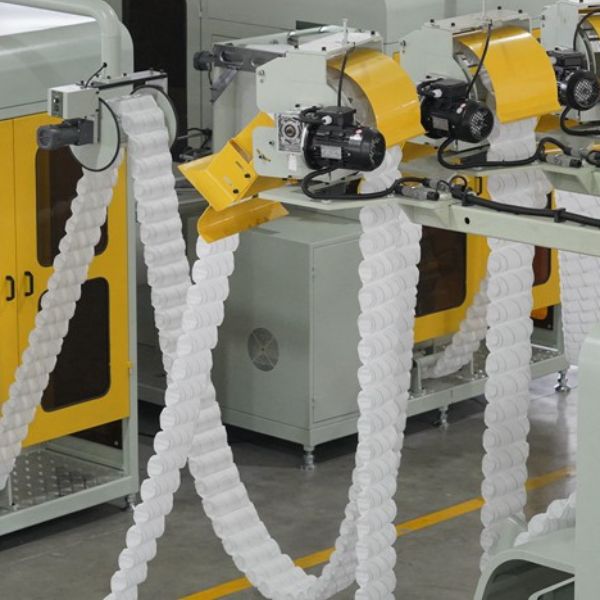

Innovative spacing configuration between pocket springs enables precise cutting while conserving non-woven fabric, delivering significant material savings without compromising structural integrity.

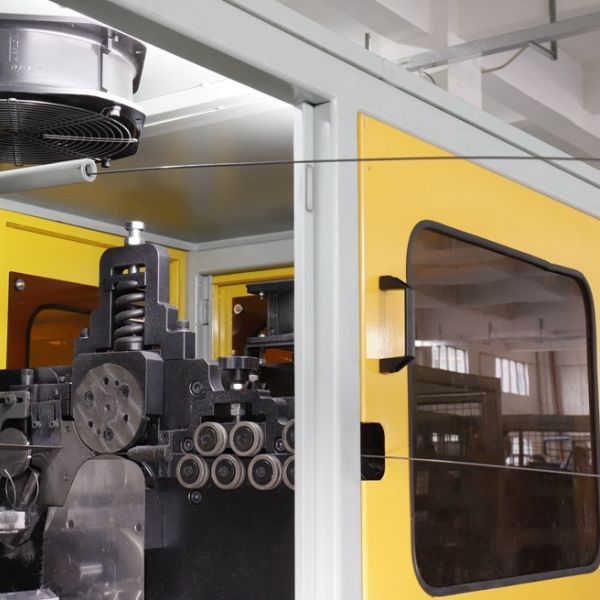

Multiple fault detection systems continuously monitor operations, automatically identifying irregularities to prevent equipment damage and material waste while special protective devices ensure operator safety.
|
VIDEO
|
SPECIFICATIONS
Model | MX15/10x3-3 | Non-Woven Fabric Thickness | ≥70g/m² |
Non-Woven Fabric Width of Coiling | 450-650mm | Outer Diameter Non-Woven Fabric | ≤φ560 |
Non-Woven Fabric Width of Top and Bottom Covers | 400-2200mm | Inner Diameter of Non-Woven Fabric | ≥60mm |
Wire Diameter | φ1.6mm-φ2.2mm | Inner Diameter of Wire Roll | ≥φ340mm |
Outer Diameter of Wire Roll | ≤φ1000mm | Acceptable Weight of Wire Roll | ≤1000Kgs |
Hot Melt Glue Shape | Bulk | Hot Melt Glue Viscosity | 1900mpas/160℃ |
Hot Melt Glue Softening Point | 95±5℃ | Suggest Operating Temperature | 150-170℃ |
Pocket Spring Height | 120-250mm |
|
