OVERVIEW
The DZ-ZA delivers exceptional mattress topper and quilt production with advanced chain stitch quilting technology and intelligent remote management. This computerized single-needle system combines remarkable high running speed with sophisticated pattern-combining capabilities for manufacturers requiring premium quilting precision.
Intelligent Remote Management: Mobile phone connectivity for production monitoring
Exceptional Production Speed: High running speed up to 3200 RPM
Variable Stitch Control: Five different stitch lengths and needle speeds
15-inch LED Display: Android operating system with intuitive interface
Automatic Origin Return: Reduces unnecessary stops for enhanced efficiency
Hydro-Oiling System: Concentrative oil supply to machine head and pedestal
Comprehensive Fault Detection: Thread break detection with automatic trimming
Adjustable Frame System: Customizable to various quilt sizes
Precision Limit Sensors: Controls needle starting point for accurate positioning
Multi-Material Capability: Processes mixed materials with sponge density ≤25

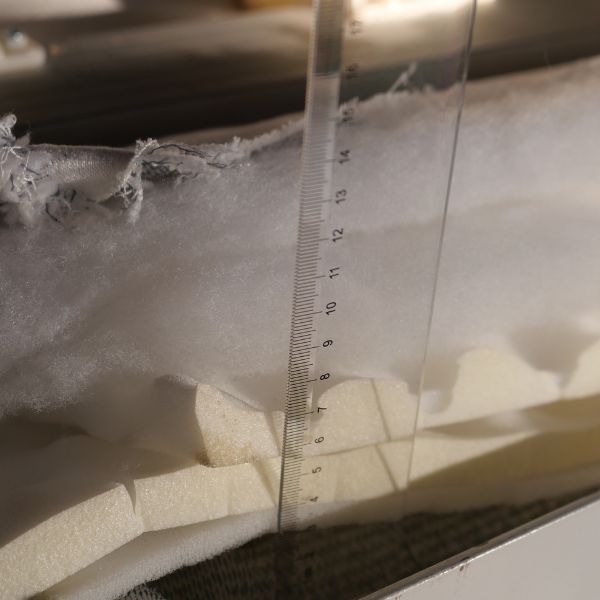

Superior Thickness Capacity: Handles soft materials up to 13cm thick
Custom Pattern Creation: Design patterns as needed with USB file compatibility
Automatic Needle-Lifting: Enhanced operational efficiency and safety
|
PRODUCT FEATURES
Remote Control
Android system with phone connectivity allows managers to send patterns, monitor production statistics, and manage operations from anywhere.

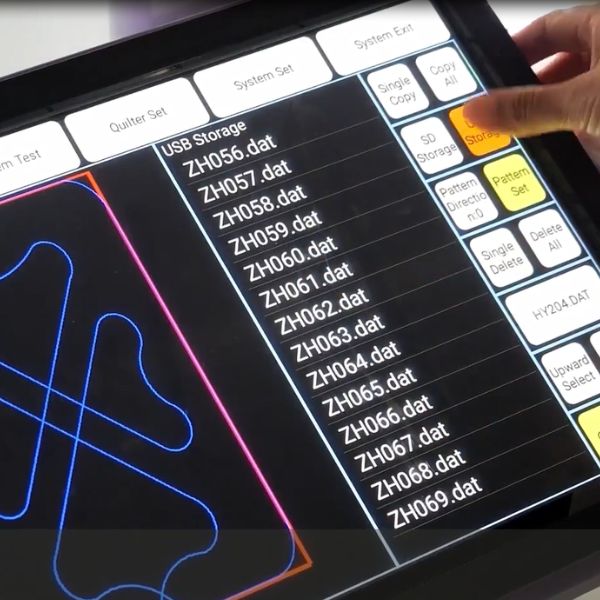

User-Friendly
15-inch LED touchscreen provides simple operation, while automatic thread cutting and break detection minimize production interruptions.

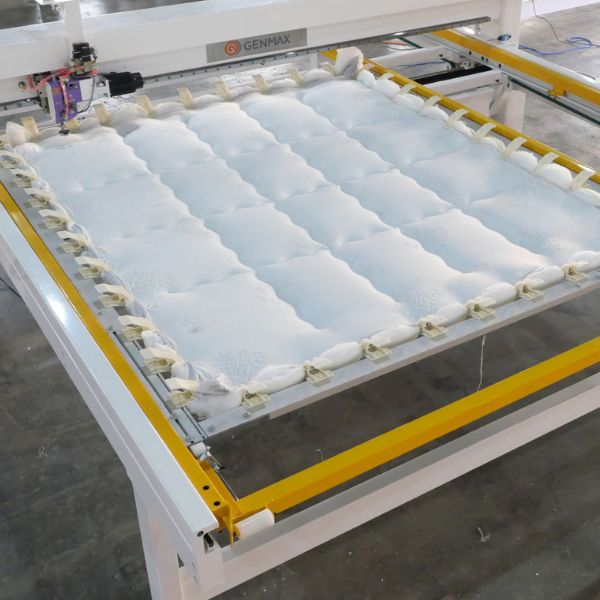

Flexible Frame Configuration
Dual-frame system with 116 clips adjusts to various quilt sizes, with sensors ensuring perfect pattern placement every time.
|
VIDEO
|
FAQ
Q: What is the maximum working speed of the DZ-ZA machine?
A: The machine can operate at speeds up to 3200 RPM (revolutions per minute).
Q: What remote capabilities does the machine offer?
A: The DZ-ZA offers intelligent quilting with remote management via mobile phone connection. It can be connected to a mobile phone for functions including management, batch production, pattern sending, and output statistics.
Q: What is the maximum quilting thickness capacity?
A: The machine can handle sewing thickness up to 13cm (5.1 inches), though soft material is required for thicker projects.
Q: Does the machine have thread break detection?
A: Yes, the DZ-ZA features disconnection detection and automatic thread trimming functions.
Q: What density of materials can the machine work with?
A: The machine can be used with multiple mixed materials with sponge density ≤25.
Q: What positioning controls does the machine have?
A: The DZ-ZA includes limit sensors to control the needle starting point for precise positioning.
|
SPECIFICATIONS
| Quilt Size | 2.6m×2.8m/2.8m×3.2m/3.0m×3.2m/3.2m×3.5m/3.5m×3.5m |
| Needle Drop Size | 2.4m×2.6m/2.6m×3.0m/2.8m×3.0m/3.0m×3.3m/3.3m×3.3m |
| Machine Needle | SINGER/SCHMETA/GORZMR5 11-23# |
| Quilting-thick Ability | 1500g/m² | Quilting Speed | 3200/RPM |
| Stitch Length | 0.5~15mm |
| Air Supply | 0.8MPa | Power | AC220V.50HZ.IP |
| Dimensions(L×W×H) | 3.4*5.0*1.8m---4.3*5.8*1.85m | Weight | 1900Kg |
|

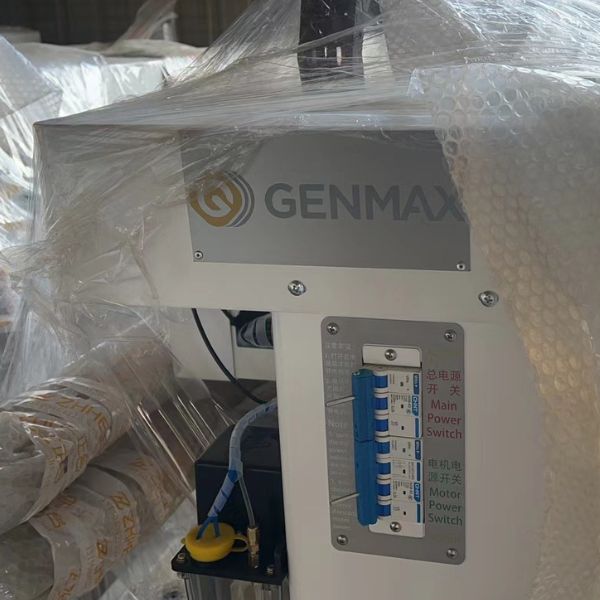

PACKAGING
